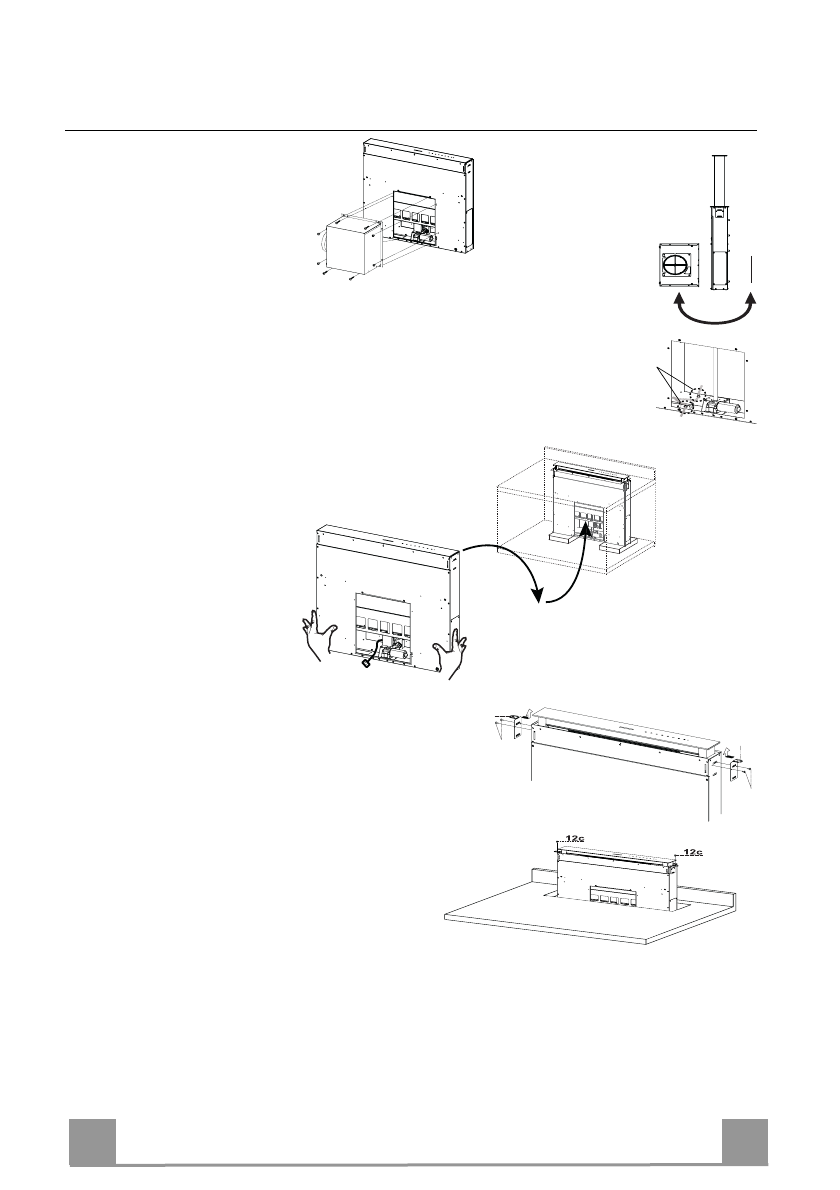

Inserting the Hood Canopy into the support surface from below

•  The Hood is built ready for

front installation of the Mo-
tor Unit.

•  If the kitchen unit is arranged differently and the Motor Unit has to be

fitted on the back, the Plug already fitted on the back of the Hood Can-
opy must be removed and replaced at the front, and the Cable with cable
raceway for connection of the Motor must also be repositioned using the
slot provided on each side (

A

).

  Before proceeding, the Motor Unit must be fixed to the Hood Canopy

(see paragraph on Fixing the Motor Unit).

•  Insert the Hood Canopy

from below into the
support worktop, drilled
as described above.

•  With the aid of a sup-

port, lift the Hood Can-
opy until the front
comes out of the Work-
top.

•  Insert the Brackets

7.2

, as indicated in the

figure, into the slots provided and fix them
with the screws

12a

provided.

•  Centre the Hood Canopy with respect to the

Cooking Hob slot.

•  Using the 2 screws

12c

 provided, fix the

Hood Canopy to the worktop and remove
the supports.

Warning:

If the cooker top is made from a material that does not allow the screws

12c

 to be inserted, use

a small amount of silicone to glue the Brackets

7.2

 to the top and allow it to dry completely

before proceeding with installation
