27

Using the tubes and discharge holes on walls with smaller dimensions will cause a

diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

!

Use a duct of the minimum indispensable length.

!

Use a duct with as few elbows as possible (maximum elbow angle: 90°).

!

Avoid drastic changes in the duct cross-section.

 Filtration version

The aspirated air will be degreased and deodorised before being fed back into the
room.
In order to use the hood in this version, you have to install a system of additional
filtering based on activated charcoal.


Installation

The minimum distance between the supporting surface for the cooking equipment on
the hob and the lowest part of the range hood must be not less than 50cm from electric
cookers and 65cm from gas or mixed cookers.
If the instructions for installation for the gas hob specify a greater distance, this must be
adhered to.

  Electrical connection

The mains power supply must correspond to the rating indicated on the plate situated
inside the hood. If provided with a plug connect the hood to a socket in compliance with
current regulations and positioned in an accessible area, after installation. If it not fitted
with a plug (direct mains connection) or if the plug is not located in an accessible area,
after installation,  apply a double pole switch in accordance with standards which
assures the complete disconnection of the mains under conditions relating to over-
current category III, in accordance with installation instructions.


WARNING!

Before re-connecting the hood circuit to the mains supply and checking the efficient
function, always check that the mains cable is correctly assembled.
The hood is provided with a special power cable ; if the cable is damaged, request a
new one from Technical Service.

Mounting

Before beginning installation:

•

Check that the product purchased is of a suitable size for the chosen installation
area.

•

Remove the charcoal (*) filter/s if supplied (see also relative paragraph). This/these
is/are to be mounted only if you want lo use the hood in the filtering version.

•  Check (for transport reasons) that there is no other supplied material inside the

hood (e.g. packets with screws (*), guarantees (*), etc.), eventually removing them
and keeping them.


Expansion wall plugs are provided to secure the hood to most types of walls/ceilings.
However, a qualified technician must verify suitability of the materials in accordance
with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight
of the hood.

Do not tile, grout or silicone this appliance to the wall. Surface mounting only.

Note:

 The parts marked with the symbol "(*)" are optional accessories supplied only

with some models or otherwise not supplied, but available for purchase.

Maintenance

Cleaning

Clean using

ONLY

 the cloth dampened with neutral liquid detergent.

DO NOT CLEAN

WITH TOOLS OR INSTRUMENTS

. Do not use abrasive products.

DO NOT USE

ALCOHOL!

Always wear work gloves for all maintenance operations.

Grease filter

Fig. 11-28
Traps cooking grease particles.

The grease filter

 must be cleaned once a month using non aggressive detergents,

either by hand or in the dishwasher, which must be set to a low temperature and a short
cycle.  When washed in a dishwasher, the grease filter may discolor slightly, but this
does not affect its filtering capacity.
To remove the grease filter, pull the spring release handle.

Charcoal filter (Optional)

Fig. 27
It absorbs unpleasant odors caused by cooking.

The activated charcoal filter can be one of these types:

•

Washable activated charcoal filter.

•

NON-washable activated charcoal filter.

Washable activated charcoal filter

The charcoal filter can be washed once every two months using hot water and a
suitable detergent, or in a dishwasher at 65°C (if the dishwasher is used, select the full
cycle function and leave dishes out).

Eliminate excess water without damaging the filter, then remove the mattress located

inside the plastic frame and put it in the oven for 10 minutes at 100° C to dry
completely. Replace the mattress every 3 years and when the cloth is damaged.

NON-washable activated charcoal filter

The saturation of the

charcoal filter

 occurs after more or less prolonged use,

depending on the type of cooking and the regularity of cleaning of the grease filter.
In any case it is necessary to replace the cartridge at least every four months.
The charcoal filter may NOT be washed or regenerated.

Assembly

Hook the charcoal filter at the back on the metal tongue of the hood first, then on the
front with the two knobs.

Disassembly

Remove the charcoal filter by turning the knobs fixing it to the hood by 90°.

Buying charcoal filters

The Charcoal filter can be bought at Samsung Service Website and Service Center.
Please refer to the last page of manual.

Replacing lamps

The hood is equipped with a lighting system based on LED technology.
The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the
traditional lamps and allow to save 90% electrical energy.

For replacement, contact the technical service.



Operation

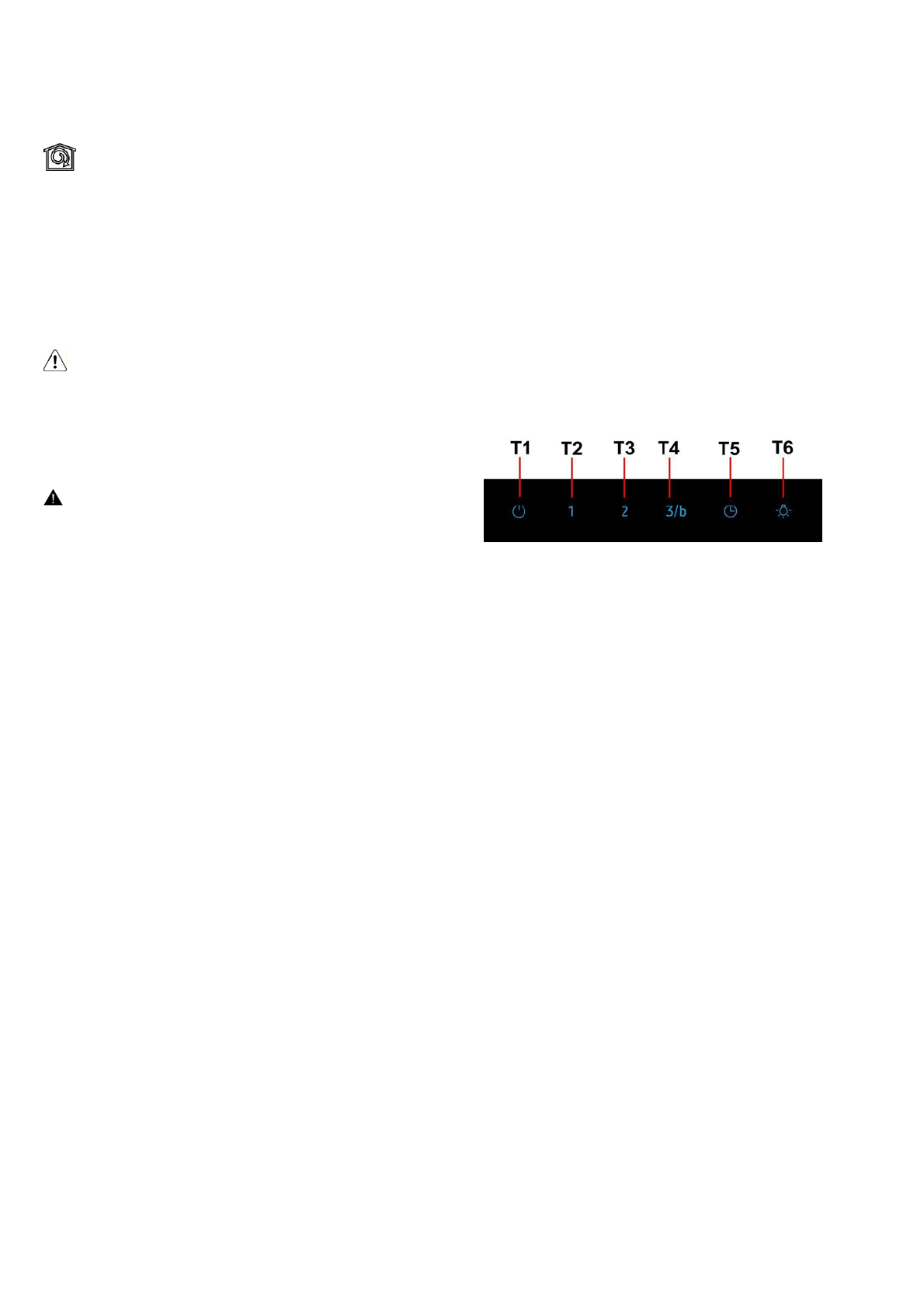

To select hood functions, simply touch the controls:


T1.  Button ON/OFF suction motor

T2.  Button to select low suction speed (power)


Saturation indicator for grease filter

When flashing,

perform maintenance of the

grease filter

; then keep the button

T1

pressed for a long time to stop the flashing (hood is ON).

T3.  Button to select medium suction speed (power)


Saturation indicator charcoal filter

When flashing, perform maintenance of the

charcoal filter

, if installed, then keep

the button

T1

 pressed for a long time to stop the flashing (hood is ON).


T4.  Button to select high and Boost suction speed (power)


Press once to select high suction speed (power) (LED on);

Press again to select Boost suction speed (power) (LED flashing).

 Note:

The Boost suction (power) speed lasts for approximately 5 minutes, then the

high suction speed (power) is set

 automatically.

T5.  Automatic shutdown button (Timer) :


Press this button to set the automatic shutdown of the active suction speed
(power):

Low suction speed (power):

20 minutes

Medium suction speed (power):

 15 minutes

High suction speed (power):

10 minutes

T6.  Button ON/OFF lighting

Activation of the charcoal filter saturation indicator

This indicator is normally deactivated. To activate it, proceed as follows:

With the hood off, press and keep pressed simultaneously

T2

 and

T3

:

T2+T3

switch ON , the hood gives out a "BEEP", the charcoal filter saturation is activated

Deactivation of charcoal filter saturation LED:

repeat the operation described

above;

T2+T3

 flash, (then only

T2

) ,the hood gives out a "BEEP", the charcoal filter

saturation is deactiveted.
