English

6. INstAllAtIoN INstructIoNs

6.1 Select an operation mode (Fig 1/Fig. 2) and a place to install the cooker hood.
6.2 Remove the cooker hood from a shipping box.
6.3 Check all the electrical components, connect the appliance to the mains power

supply and check all its functions.

Please note that the installation height of the hood above the electric stove should

be not less than 650 mm, and above the gas ones – not less than 750 mm (Fig. 1).

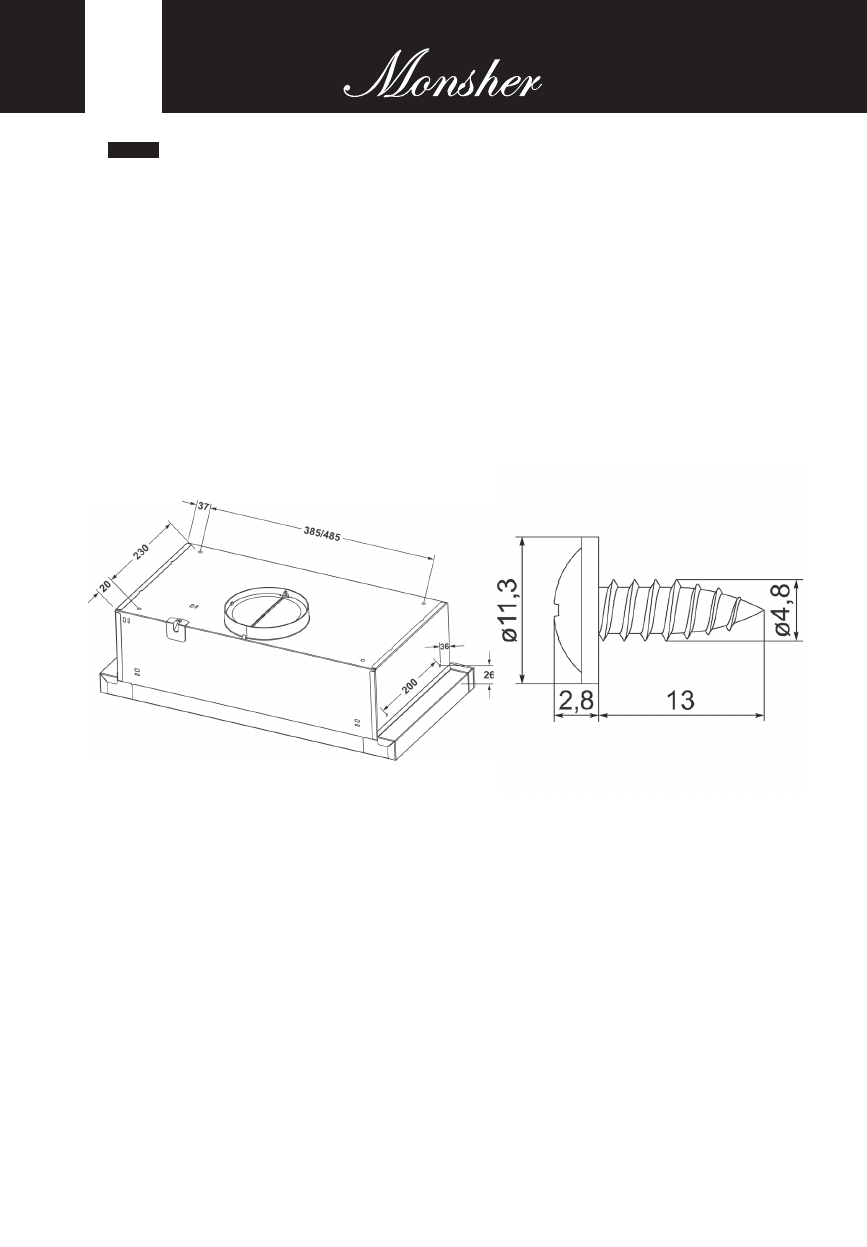

                            Fig. 4                                                     Fig. 4.1
6.4 Before drilling holes for fixing arrangements one should mark out a wall.

For this make a paper form with holes marking, put the form to a lower shelf of a
ready-built kitchen and make it even (Fig. 1)

6.5 For fixing we recommend use 4 drywall screws 4,8х13 DIN968 from the middle

of a hood (screws are not included in the delivery set). (Fig. 4 / Fig. 4.1).

6.6 Install the air duct adapter (Ø150 x 120mm) on the tube of the hood.
6.7 If the hood will operate in the mode with air exhaust into a kitchen chimney,

install the duct of selected diameter according to the instructions, providing sufficient
tightness.
