ENGLISH

Cooker hood

TECHNICAL PASSPORT

with the additional flow of the fresh air

(for example to open the window).

4.5.

 For air extraction to the chimney

use air duct Ø150 / 120mm. A smaller

diameter will create additional air

resistance, which will increase noise and

vibration, as well as motor overheating.

4.6.

 Provide timely cleaning of

non-disposable aluminum removal

filters,  otherwise,  the  efficiency  of  the

extraction will decrease and there will

be a fire hazard due to the accumulation

of grease and dust in the filter.

4.7.

 It is forbidden to turn on the

extractor hood in case of ignition with

the purpose of reduction of smoke until

complete localization of fire.

4.8.

 In case of ignition under the

extractor hood, cover the fire with a thick

cloth, disconnect the extractor from the

electric network, do not use water to

extinguish a fire in the places where the

electrical appliances are located.

4.9.

Protect the cord for connection to

the electric network from the mechanic

and thermal damages.

5. EXTRACTOR HOOD DESCRIPTION

5.1

 Ventilation kitchen cooker hood

«SLIMLUX S» is an air-purifying device

of exhaust type with a fan (turbine)

and is equipped with aluminium grease

filter.  The  product  is  manufactured  in

a single-motor performance with a

width of 600/900 mm from carbon steel

sheet, followed by decorative-protective

coating with powder paints.

5.2

 The cooker hood refers to the

type of “built-in pull-out” hoods and

is built into the furniture sets of the

kitchen above the stove.

5.3 Depending on the installation

scheme over the cooker, the extractor

hood can work in two variants (see item

1.5):

- in the mode of air extraction into

the chimney of the kitchen (Fig. 1).

- in the recirculation mode (Fig. 2)

(closed circular air circulation in the

kitchen).

Distance H:

To electric cooker 65-75cm

To gas cooker 75-85cm

“It is necessary to consider, that when

the extractor hood is on, the pressure is

automatically lowered in the enclosed

room, and should be balanced with an

inflow of fresh air. This may be achieved

by opening doors and windows or with

use  of  equipment  for  special  inflow

ventilation”.

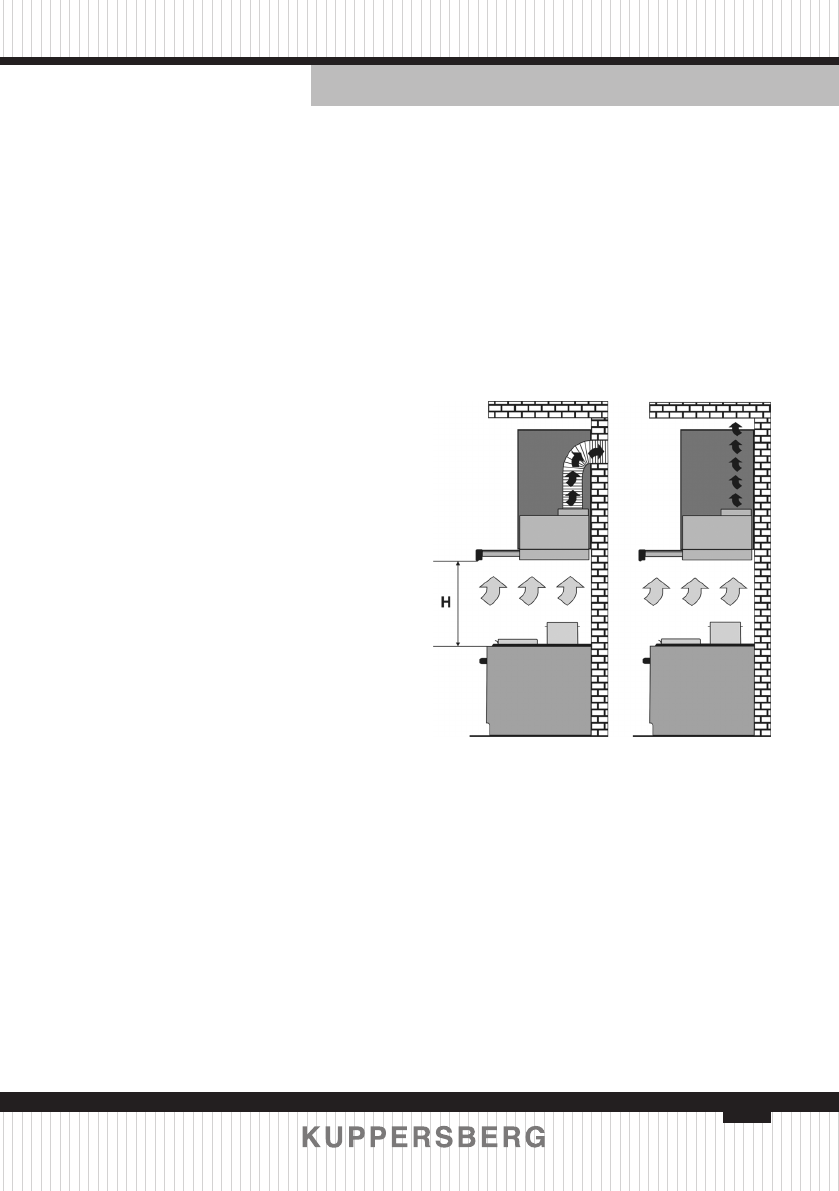

Fig.  1

Fig.  2
