TECHNICAL PASSPORT

ENGLISH

Cooker hood

USE

The hood is designed to be used ei-

ther for exhausting or filter version.

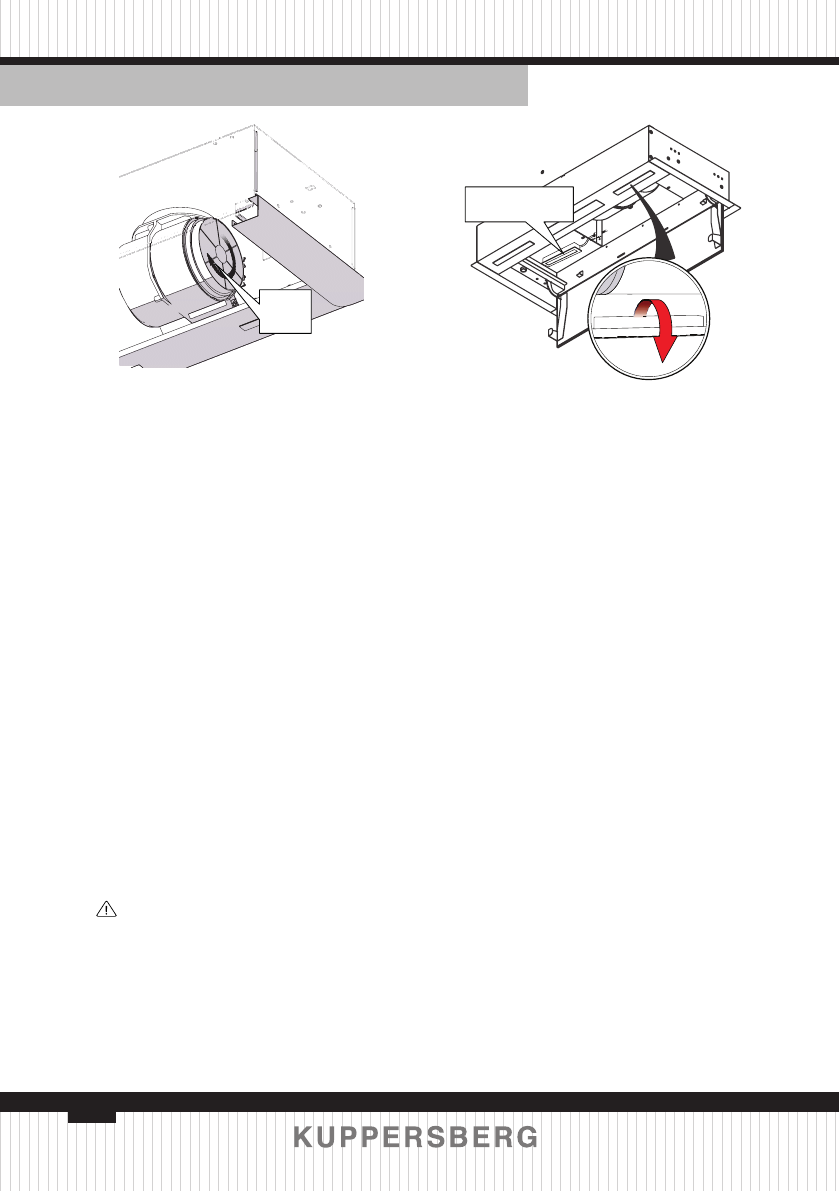

DUCTING VERSION

In this case the fumes are conveyed

outside of the building by means of a
special pipe connected with the con-
nection ring located on top of the hood.

Attention! The exhausting pipe is

not supplied and must be purchased
apart.

Diameter of the exhausting pipe must

be equal to that of the connection ring.

In the horizontal runs the exhaust-

ing pipe must be slightly slanted (about
10°) and directed upwards to vent the
air easily from the room to the outside.

  Attention!

If the hood is supplied

with  active  charcoal  filter,  then  it  must

be removed.

Connect the hood and discharge

holes on the walls with a diameter
equivalent to the air outlet (connection

flange).

Using the tubes and discharge holes

on walls with smaller dimensions will

cause a diminution of the suction per-

formance and a drastic increase in noise.

Any responsibility in the matter is

therefore declined.

!

Use a duct of the minimum indis-

pensible length.

!

Use a duct with as few elbows as

possible (maximum elbow angle:

90°).

!

Avoid drastic changes in the duct

cross-section.

!

Use a duct as smooth as possible

inside.

!

The duct must be made of certified

material.

FILTER VERSION

One  active  charcoal  filter  is  needed

for this and can be obtained from your

usual retailer.

The  filter  removes  the  grease  and

smells from the extracted air before

sending it back into the room through

the upper outlet grid.

90

o

LED 2x3W
