Description of the hood

Fig. 1
1.

Control panel

2.

 Grease filter

3.

 Grease filter release handle

4.

 Halogen lamp

5.

 Vapour catcher

6.

 Telescopic chimney

7.

 Air outlet (used for filter version only)

Operation

Use the high suction speed in cases of concentrated kitchen
vapours.  It is recommended that the cooker hood suction is
switched on for 5 minutes prior to cooking and to leave in
operation during cooking and for another 15 minutes
approximately after terminating cooking.

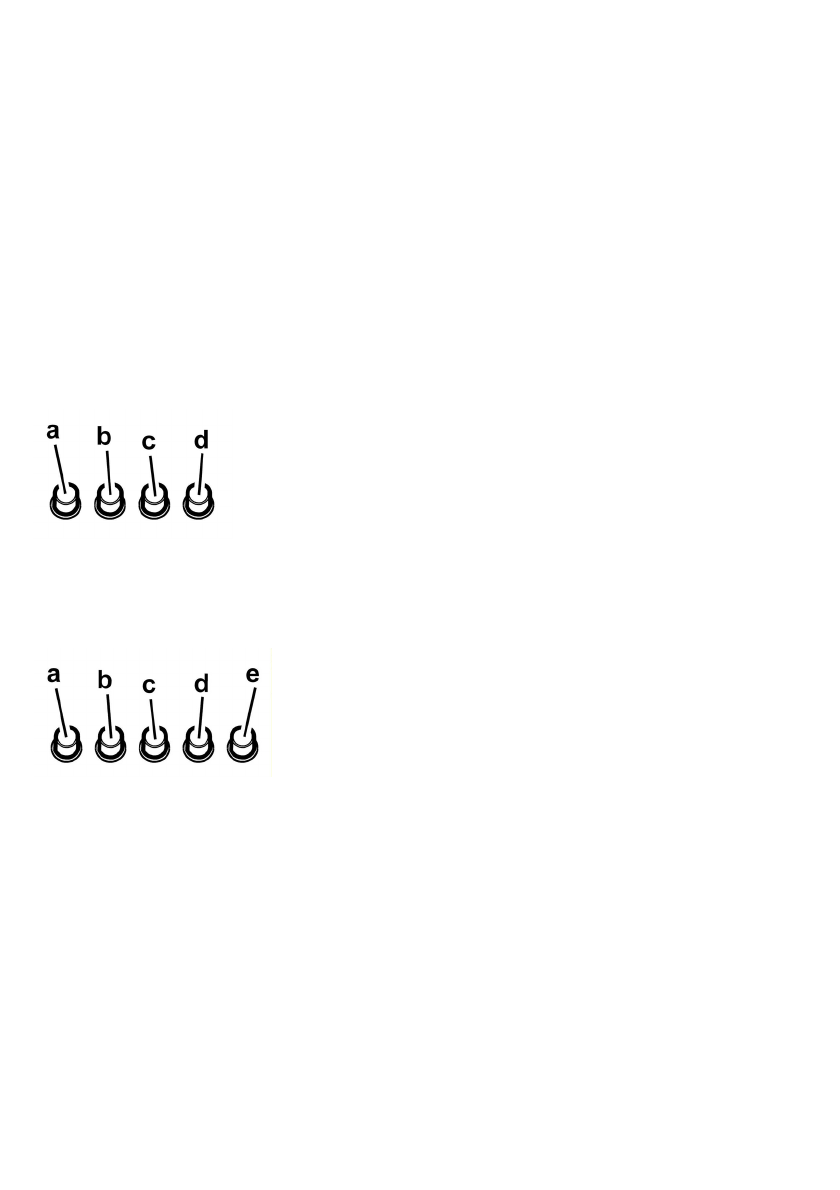

Model with switch-board having 4 push-buttons

a.

ON/OFF light switch

b.

Speed 1/OFF switch

c.

 2-speed selection

d.

3-speed selection

Model with 5-key keyboard

a.

on/off light switch

b.

off aspiration switch

c.

minimum power selection aspiration switch

d.

medium power selection aspiration switch

e.

maximum power selection aspiration switch

Maintenance

ATTENTION!

Before performing any maintenance operation,

isolate the hood from the electrical supply by switching off at
the connector and removing the connector fuse.
Or if the appliance has been connected through a plug and
socket, then the plug must be removed from the socket.

Cleaning

The cooker hood should be cleaned regularly (at least with the
same frequency with which you carry out maintenance of the
fat filters) internally and externally.  Clean using the cloth
dampened with neutral liquid detergent. Do not use abrasive
products.

DO NOT USE ALCOHOL!

WARNING:

Failure to carry out the basic cleaning recommendations of the
cooker hood and replacement of the filters may cause fire
risks.
Therefore, we recommend oserving these instructions.
The manufacturer declines all responsibility for any damage to
the motor or any fire damage linked to inappropriate
maintenance or failure to observe the above safety
recommendations.

Grease filter

Traps cooking grease particles.

This must be cleaned once a month (or when the filter
saturation indication system – if envisaged on the model in
possession – indicates this necessity)  using non aggressive
detergents, either by hand or in the dishwasher, which must
be set to a low temperature and a short cycle.
When washed in a dishwasher, the grease filter may discolour
slightly, but this does not affect its filtering capacity.
To remove the grease filter, pull the spring release handle.

Fig. 2

Charcoal filter (filter version only)

It absorbs unpleasant odours caused by cooking.

The charcoal filter can be washed once every two months (or
when the filter saturation indication system – if envisaged on

the model in possession – indicates this necessity)   using hot
water and a suitable detergent, or in a dishwasher at 65°C (if
the dishwasher is used, select the full cycle function and leave
dishes out).
Eliminate excess water without damaging the filter, then
remove the mattress located inside the plastic frame and put it
in the oven for 10 minutes at 100° C to dry completely.
Replace the mattress every 3 years and when the cloth is
damaged.
Remove the filter holder frame by turning the knobs (

g

) 90°

that affix the chimney to the cooker hood.
Insert the pad

(i)

of activated carbon into the frame

(h)

 and fit

the whole back into its housing

(j)

.

Fig. 3

It is possible to use a traditional carbon filter,  neither
washable nor regenerable, to be  replaced every 3 - 4 months.
The filter holder frame of the carbon filter is welded together;
the eventual frame supplied with the hood is not, therefore, to
be used.
Insert it into its housing and fix it turning the 2 plastic knobs.
