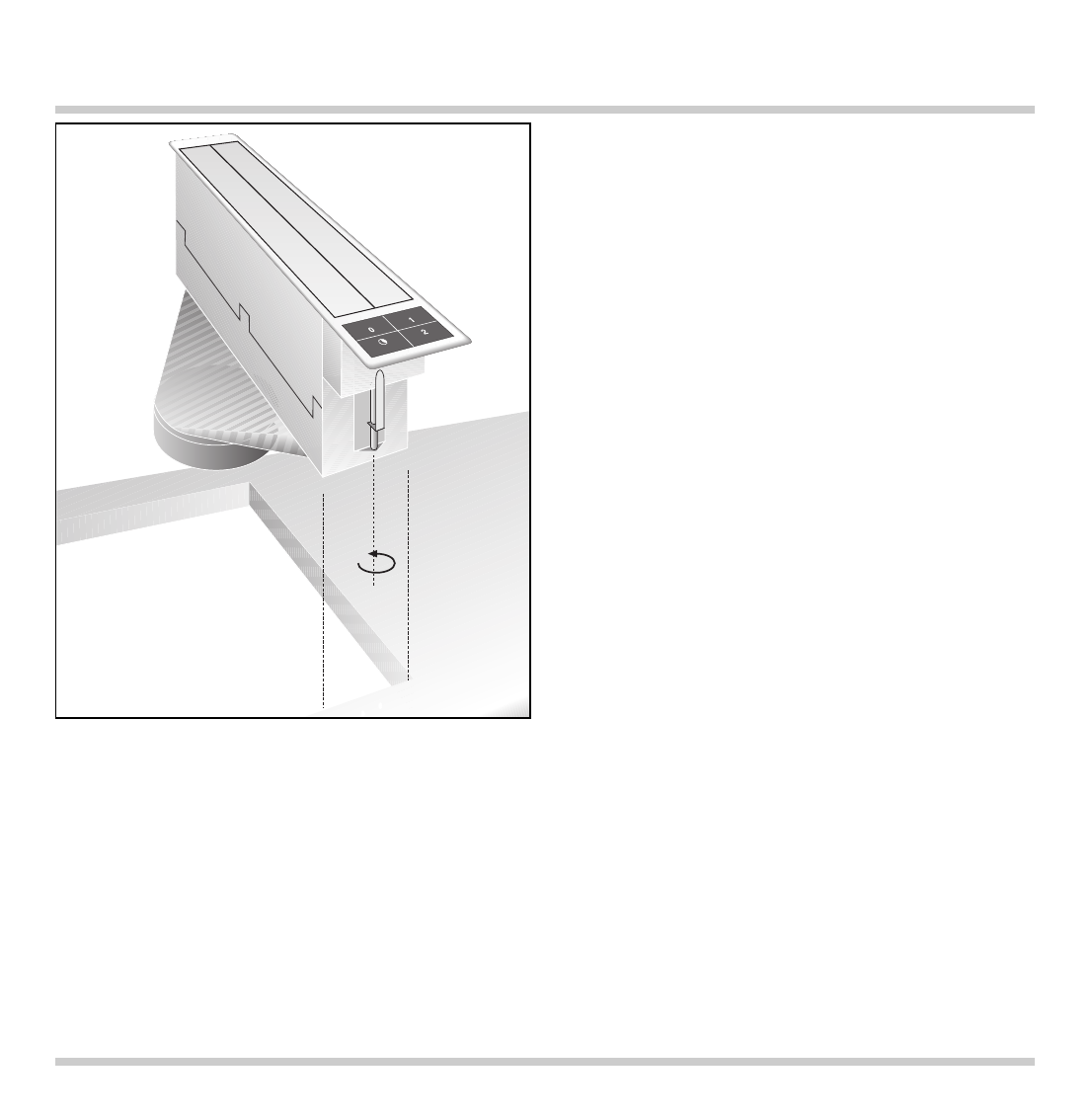

• T urn the clamping screws to the side. Insert the

appliance with the control panel on the front into
the cut-out and align it.

Note:

do not stick the appliance onto the worktop

with silicone.

• T urn the clamping screws under the countertop

and tighten them evenly. Do not tighten the
clamping screws too tightly, as a uniform sealing
gap should be left all round.

• Connect the appliance to the fan module by

means of a flexible aluminium pipe with a
diameter of 125 mm.

• Connect the appliance to the fan module by

means of the 4-pole plug.

We recommend the use of our telescopic wall box
TM 180-043 to route exhaust air through the outside
wall.

Installing the edge trim AL 400-000

The edge trim has to be fitted to the side of the hob

ventilator, if this ventilator is installed together with
other Vario appliances and forms the left or right
edge of this combination.

The edge trim does not change the total width of
the cut-out, however, the width of the edge trim has
to be added to the total width of the appliance
combination.

Simply press the edge trim under that side of the
ventilator, that forms the edge of the combination.
The hooks on the side of the edge trim will latch
into the openings provided on the hob ventilator.
