16

In case of:
•  devices fitted with cables without a plug: the type of plug to use is a ''stand-

ardised'' one. The wires must be connected as follows: yellow-green for earth-
ing, blue for neutral and brown for the phase. The plug must be connected to
an adequate safety socket.

•  fixed equipment not provided with a power supply cable and plug, or any

other device that ensures disconnection from the electrical mains, with an
opening gap of the contacts that enables total disconnection in overvoltage
category III conditions.

  Said disconnection devices must be provided in the mains power supply in

compliance with installation regulations.

The yellow/green earth cable must not be cut off by the switch.
The Manufacturer declines all responsibility for failure to comply with the safety
regulations.

FUMES DISCHARGE

EXTERNAL EXHAUST HOOD (SUCTION)

In this version the fumes and vapours are discharged outside
through the exhaust pipe.
To this end, the hood outlet fitting must be connected via a
pipe, to an external output.

The outlet pipe must have:
•  a diameter not less than that of the hood fitting.
•  a slight slope downwards (drop) in the horizontal sections to prevent conden-

sation from flowing back into the motor.

•  the minimum required number of bends.
•  the minimum required length to avoid vibrations and reduce the suction per-

formance of the hood.

  You are required to insulate the pipes if it passes through cold environments.
  In the presence of motors with 800m3/h or higher, a check valve is present to

prevent external air flowing back.

Deviation for Germany:
when the kitchen hood is used at the same time as appliances that are powered by
energy other than electricity, the negative pressure in the room must not exceed 4 Pa
(4 x 10-5 bar).

HOOD WITH INTERNAL RECIRCULATION (FILTERING) (OPTIONAL)

In this model, air passes through the active carbon filters (op-
tional) to be purified and is then recycled into the environ-
ment.
Ensure that the active carbon filters are assembled into the
hood, if not, install them as indicated in the assembly instruc-
tions.

In this version the check valve must not be assembled: remove it if it is
on the air outlet fitting of the motor.

ASSEMBLY INSTRUCTIONS

only intended for personnel qualified

WARNING: Make sure the suspended element has available front access.

The hood can be installed in various configurations.

The generic assembly steps apply to all installations; for each case,

follow the specific steps provided for the required installation.

OPERATION

WHEN TO TURN ON THE HOOD?

Switch on the hood at least one minute before starting to cook to direct fumes
and vapours towards the suction surface.
After cooking, leave the hood operating until complete extraction of all vapours
and odours. By means of the Timer function, it is possible to set auto switch-off
function which will allow the hood to turn off automatically after 15 minutes of
operation.

WHICH SPEED IS TO BE SELECTED?

1st speed:

 maintains the circulation of clean air with low electricity consump-

tion.

2nd speed:

normal conditions of use.

3rd speed:

presence of strong odours and vapours.

4th speed:

 rapid disposal of odours and vapours.

WHEN SHOULD THE FILTERS BE WASHED OR REPLACED?

The metal filters must be cleaned every 30 hours of operation.
For further details see the

“MAINTENANCE”

chap.

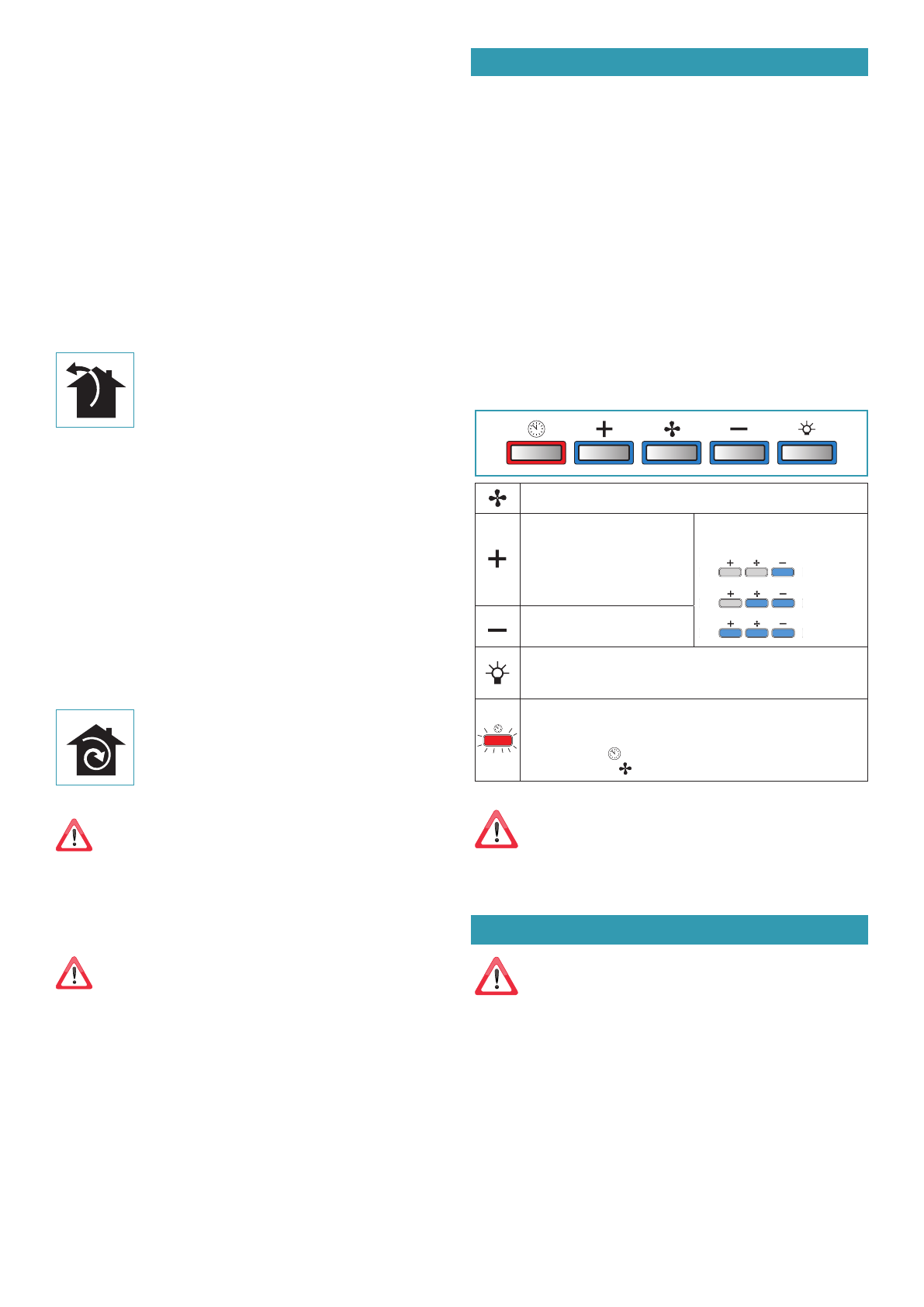

ELECTRONIC PUSHBUTTON PANEL

Motor ON/OFF

Increase speed from 1 to 3

The speeds are indicated by the
LEDs on the keys:

 Speed 1

 Speed 2

 Speed 3

Reduce speed from 3 to 1

Light on/off

Short impulse:

turn light on and off

Long impulse:

change light tone from 2700K to 5600K

TIMER

(red LED flashing)

Auto switch-off after 15 min.
The function deactivates (red LED off ) if:
- The TIMER key ( ) is pressed again.
- The ON/OFF key ( ) is pressed.

If the pushbutton panel is completely inactive, before contacting

the Technical assistance service, disconnect power temporarily

to the appliance (about 5“), possibly by acting on the main swi-

tch, to restore normal operation.

If this measure has no effect, contact the Technical assistance service.

 MAINTENANCE

Before cleaning or carrying out maintenance operations, discon-

nect the equipment by removing the plug or switching off the

main switch.

Do not use detergents containing abrasive, acidic or corrosive substances

or abrasive cloths.

Regular maintenance guarantees proper operation and performance over time.
Special attention is to be paid to the

metal anti-grease filters

: frequent clean-

ing of the filters and their supports ensures that no flammable grease is accu-
mulated.

CLEANING OF EXTERNAL SURFACES

You are advised to clean the external surfaces of the hood

at least once every

15 days

to prevent oily substances and grease from sticking to them. To clean

the brushed stainless steel hood, the Manufacturer recommends using "Magic
Steel" wipes.
Alternatively

and for all the other types of surfaces

, it can be cleaned using a

damp cloth, slightly moistened with mild, liquid detergent or denatured alcohol.
Complete cleaning by rinsing well and drying with soft cloths.
