FILTERS

REMOVING AND REPLACING’S INSTRUCTIONS

H

1. METAL FILTERS

To remove the anti-grease metal filters, just act on the specific handle. In the perimeter
suction hoods (horizon nrs, lumina nrs, vela nrs) remove the steel panel as indicated in fig.
H3 and then remove the metal filters.

2. CHARCOAL FILTERS

To assemble or replace the charcoal filters, see the instructions in the specific optional
charcoal filter kit for each model.

Plane nrs hood:

 filter code kacl.921

Horizon nrs 1 motor, lumina nrs hood:

 filter code 101078900 (2 per hood)

Horizon nrs 2 motor hood:

filter code 101078900 (4 per hood)

Vela nrs hood:

 filter code 101078900 (1 per hood)

To order new charcoal filters, contact your distributor/dealer.

ONLY FOR ITALY:

 Download the filter order module from the website:

www.falmec.com (access the drop-down assistance menu).

LIGHTING

ASSEMBLY AND REPLACEMENT

I

  WARNING! Light bulbs with different shapes and power ratings from the original may seri-

ously damage the light compartment.

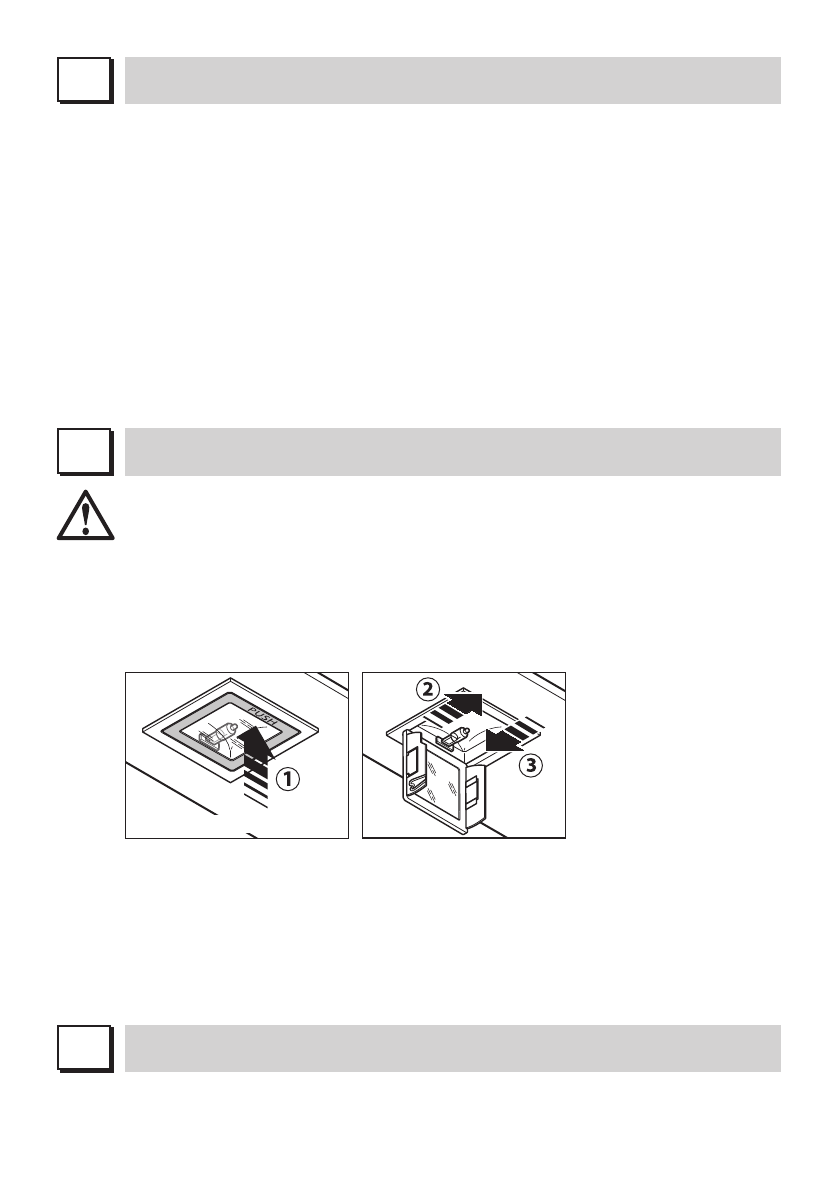

1. SPOTLIGHT

How to replace a square halogen light:
a)  Check that the equipment is disconnected from the power supply.
b)

Open the panel completely till 90° (see figure)

 pressing the PUSH button

c)  Replace the lamp with a similar one (halogen, max 20 W, 12 Volt, G4 connection).
d) Close the panel. If the panel does not close correctly repeat the operation at point b.

Square halogen light

2.   FLUORESCENT TUBE

(Section reserved for qualified installers)

Replacing the fluorescent tube:
a)  Disconnect the device from the mains;
b)  Unscrew the fixing screws and remove the bottom panel;
c)  Remove the fluorescent tube, by rotating through 90°, and replace it with one of similar

features (8W-13W-21W-28W according with the model);

d)  Reconnect the device to the mains.

MAINTENANCE

 AND CLEANING

L

Constant maintenance ensures the correct operation and efficiency of the appliance over
time. Special attention should be paid to the metal grease-trapping filters and the charcoal
