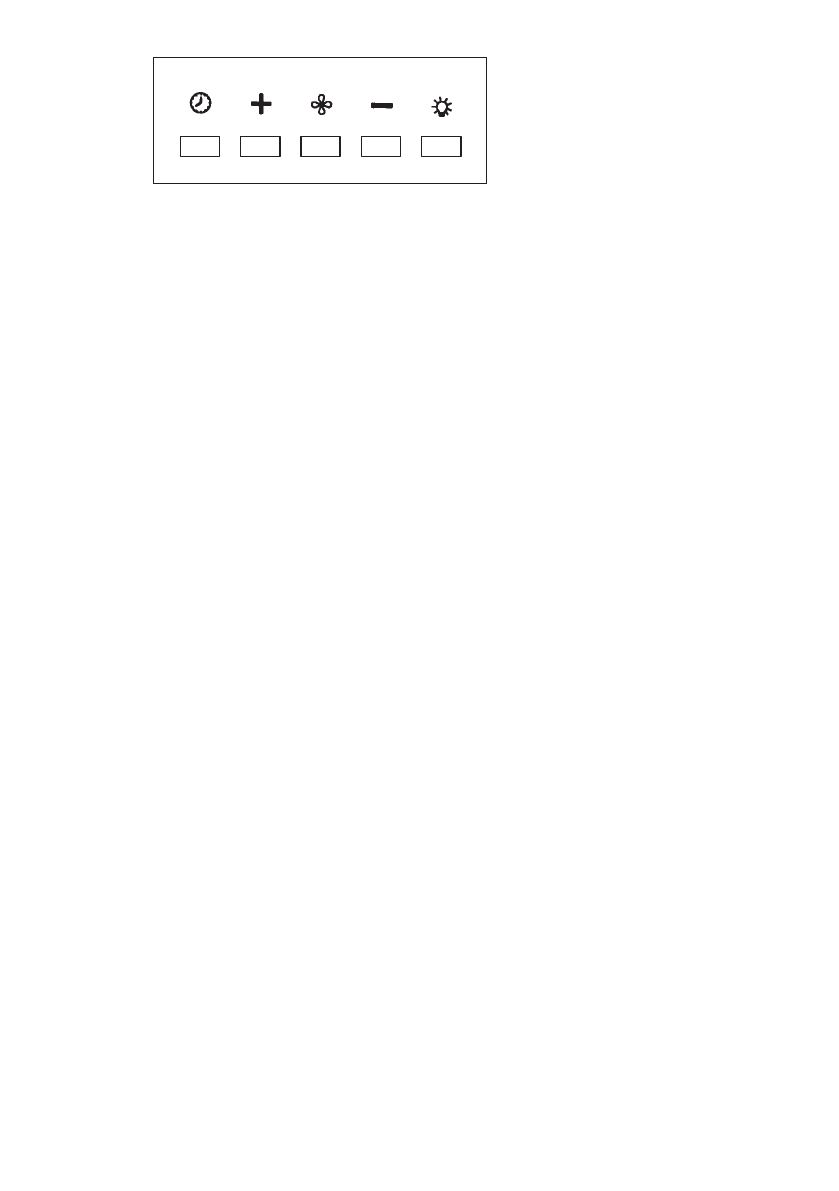

2.   ELECTRONIC CONTROL PANEL (HORIZON NRS, LUMINA NRS, VELA NRS)

1: Timer/Alarm

filters

The steady RED light

indicates that the fat filter alarm is activated (after 30 hours), to de-

activate this alarm and zero the meters, maintain the Key pressed for 3 seconds.

Flashing RED light

 indicates that the timer function is activated. This function can only be

activated if the motor is activated and running at any velocity when the Key is pressed
(either prolonged or not). This function will cause the automatic switch-off of the hood
after 15 minutes.

With the Timer function activated, the hood can be switched-off by the operator in any
case and the function will be deactivated.

The Timer function remains associated to a velocity. A change in the velocity, with the
Timer function activated, will deactivate it.

2: 1st

Velocity

 When

the

LED is switched-off

, non-prolonged pressing of the key will switch-on the hood

at the 1st velocity and illuminate the respective LED. The function will switch-on when the
Key is released.

 When

the

LED is switched-off and another velocity is activated

, pressing the Key will

imply selection of the 1st velocity, switching-on of the respective LED and switching-off of
the LED associated with the velocity that was previously selected.

 When

the

 LED is on, pressing

the Key will imply the switching-off the LED and MOTOR.

 When

the

LED is switched-off, prolonged pressing

 (at least 3 seconds) of the Key will

cause activation of the recirculation function. During the recirculation function (with a
duration of 24 hours), the

LED will flash

. From the activation of this function, the hood will

remain switched-on for one hour at the 1st velocity, after which it will switch-off for 3 hours
and then reactivate for another hour. These cycles are repeated until the timeout.

With this function activated, the other functions cannot be selected. To remove this func-
tion, keep Key 2 pressed for at least 3 seconds.

3: 2nd

Velocity

 When

the

LED is switched-off and another velocity activated

, pressing the Key (either

prolonged or not) will imply the selection of the 2nd velocity, switching-on of the respec-
tive LED and switching-off of the LED associated with the velocity that was previously
selected.

 When

the

LED is switched-off and no velocity activated

, pressing the Key will have no

effect.

 When

the

LED is switched-on, pressing the Key 3

 will have no effect.

To switch the hood off, it will be necessary to firstly select the 1st velocity and then repress
the same Key.

4: 3rd

Velocity

 When

the

LED is switched-off and another velocity activated

, pressing the Key (either

prolonged or not) implies the selection of the 3rd velocity, the switching-on of the re-
spective LED and switching-off of the LED associated to the velocity that was previously
selected.

 When

the

LED is switched-off and no velocity activated

, pressing the Key will have no

effect.

 When

the LED is switched-on, pressing the Key 4

 will have no effect.
