•To put on and off the lights:

Press on the disk (T) to put on and off the lights

•

To select the available suction speeds:

Turn the disk (T) clockwise to turn on and increase the suction
speed and counter-clockwise to decrease it, and to turn off the
hood.

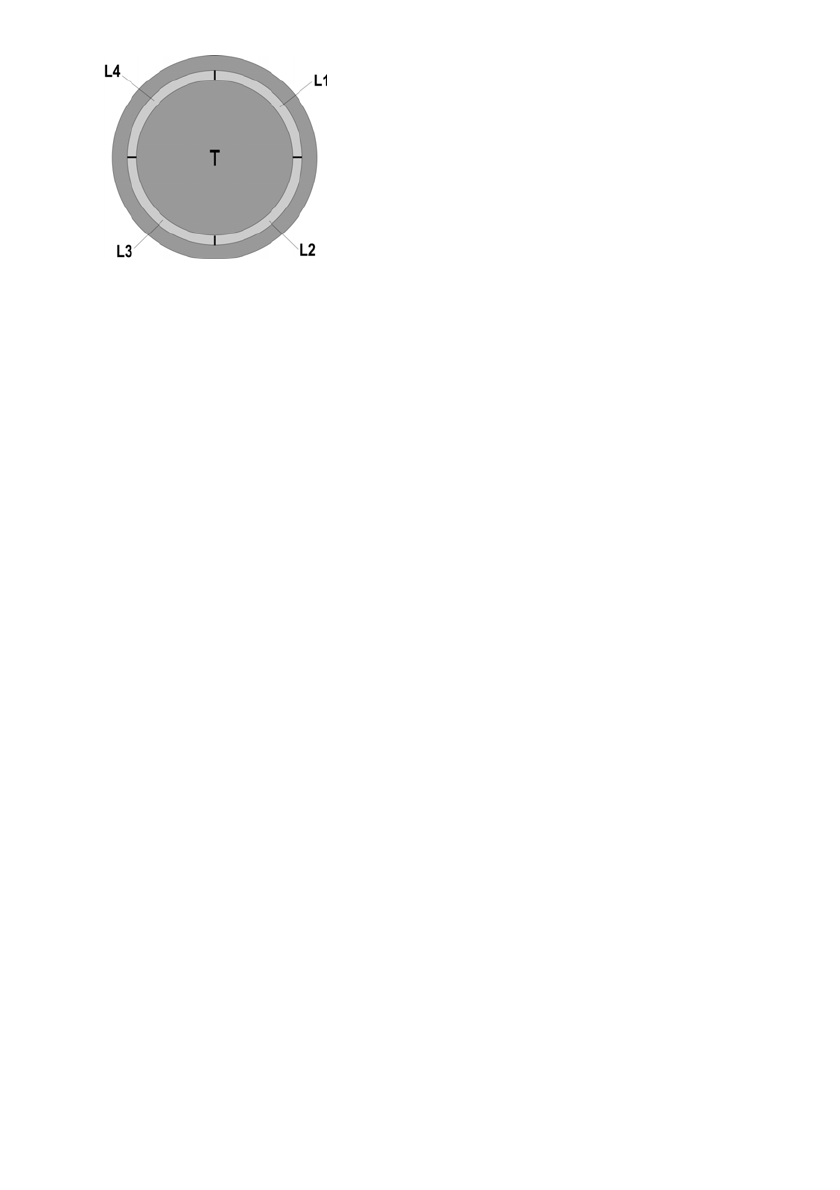

The crown (L) lights to indicate the selected suction speed:

• L1 lit

speed 1 (minimum).

• L1 + L2 lit

speed 2 (medium).

• L1 + L2 + L3 lit

Speed 3 (maximum).

• L1 + L2 + L3 + L4 lit in flashing mode

Speed 4 (intensive), lasting for 5 minutes, then the hood is
placed automatically at speed 2

• L off:

Suction motor off


Filters’ Saturation Control

The hood is equipped with a device that indicates when it is
required to perform the filter maintenance
The saturation control device of the grease filter is always
active
The control device of the activated carbon filter is usually
turned off
To activate it, proceed as follows:
- Turn off the hood.
- Press the disk (T) for more than 5 seconds
The crown (L) lights completely, flashing, and a beep will be
heard: the control device of the charcoal filter is activated.

NB

 = to turn it off, turn off the hood, press the disk (T), L1 + L2

will be backlit, flashing; wait for the beep to confirm the
deactivation.


Grease filter saturation indicator

L1 + L2 flash when you have to perform maintenance of the
grease filter


Activated charcoal filter saturation indicator

L3 + L4 flash when you have to perform maintenance of the
activated charcoal filter


Reset of filter saturation signal

After filter maintenance, turn on the hood and press the disk
(T) for more than 5 seconds: you will hear a long tone (beep)
confirming the reset.

Note

: In case of simultaneous signaling (grease filter and

activated charcoal filter saturation), you must repeat the reset
twice.

Maintenance

ATTENTION!

Before performing any maintenance operation,

isolate the hood from the electrical supply by switching off at
the connector and removing the connector fuse.
Or if the appliance has been connected through a plug and
socket, then the plug must be removed from the socket.

Cleaning

The cooker hood should be cleaned regularly (at least with the
same frequency with which you carry out maintenance of the
fat filters) internally and externally.  Clean using the cloth
dampened with neutral liquid detergent. Do not use abrasive
products.

DO NOT USE ALCOHOL!

WARNING:

Failure to carry out the basic cleaning

recommendations of the cooker hood and replacement of the
filters may cause fire risks.
Therefore, we recommend observing these instructions.
The manufacturer declines all responsibility for any damage to
the motor or any fire damage linked to inappropriate
maintenance or failure to observe the above safety
recommendations.

Grease filter

Fig. 5-14
Traps cooking grease particles.

This must be cleaned at least once a month (or when the filter
saturation indication system - envisaged on the model in
possession - indicates this necessity), using non-aggressive
detergents, in a dishwasher, which must be set to a low
temperature and a short cycle (Tmax: 70°C).
When washed in a dishwasher, metal parts may discolour
slightly.
The filter must be dried in an oven for one hour at a max
temperature of 100°C; if the filter is still moist, repeat the
operation.
Replace the filter at least every 2 years.
To remove the grease filter, pull the spring release handle.

Charcoal filter (filter version only)

Fig. 13
It absorbs unpleasant odours caused by cooking.

The saturation of the charcoal filter occurs after more or less
prolonged use, depending on the type of cooking and the
regularity of cleaning of the grease filter.
In any case it is necessary to replace the cartridge at least
every four mounths (or when the filter saturation indication
system – if envisaged on the model in possession – indicates
this necessity).The charcoal filter may NOT be washed or
regenerated.

Circular carbon filter

Apply one on each side as cover to both the shield grids of the
motor impeller, then turn clockwise.
