standards which assures the complete disconnection of the
mains under conditions relating to over-current category III, in
accordance with installation instructions.


WARNING!

Before re-connecting the hood circuit to the mains supply and
checking the efficient function, always check that the mains
cable is correctly assembled.

The hood is provided with a special power cable ; if the cable
is damaged, request a new one from Technical Service.

Mounting

Before beginning installation:

•

Check that the product purchased is of a suitable size for
the chosen installation area.

•  Remove the charcoal (*) filter/s if supplied (see also

relative paragraph). This/these is/are to be mounted only
if you want lo use the hood in the filtering version.

•  Check (for transport reasons) that there is no other

supplied material inside the hood (e.g. packets with
screws (*), guarantees (*), etc.), eventually removing
them and keeping them.


Expansion wall plugs are provided to secure the hood to most
types of walls/ceilings. However, a qualified technician must
verify suitability of the materials in accordance with the type of
wall/ceiling. The wall/ceiling must be strong enough to take
the weight of the hood.

Do not tile, grout or silicone this appliance to the wall.
Surface mounting only.

Operation

Control panel with 6 buttons


To select the functions of the hood just touch the commands.


Light key ON/OFF

Intensive speed selection key

(suction

power) - duration 5 minutes

:

the hood sets this

power and at the end of the 5 minutes returns
to the previous setting.

High-speed selection key

(suction power).

Medium-speed selection key

(suction power)

- when flashing it indicates the need to wash or
replace the carbon filter. This signal is normally
deactivated. To activate the alarm, disable the
electronic by pressing the

0

button for 3

seconds.
Next, simultaneously press buttons

1

 and

2

 for

3 seconds; at first, only button

1

will flash, then

both buttons

1

 and

2

will flash to indicate

activation. Repeat the procedure to deactivate
the alarm; at first buttons

1

 and

2

 will flash and

subsequently only button

1

to indicate

deactivation.

Low-speed selection key

 (suction power) –

when flashing it indicates the need to wash the
fats filter.

Motor key OFF

 (stand by) – excludes the

electronics – reset wash/replace filters signals.

MOTOR OFF

Press briefly to switch the motor off.

RESET FILTERS SIGNALS

In functioning mode, after carrying out filter
maintenance, press the key until hearing the
sound signal. The flashing LED

1

(grease filter)

or

2

(carbon filter) stops flashing.

EXCLUDING THE ELECTRONICS

Press the key for 3 seconds. The hood
command electronics will be excluded.
This function can be useful during the product
cleaning operations.
Just repeat the operation to reinsert the
electronics.


If the hood fails to operate correctly, briefly disconnect it from
the mains power supply for almost 5 sec. by pulling out the
plug. Then plug it in again and try once more before
contacting the Technical Assistance Service.


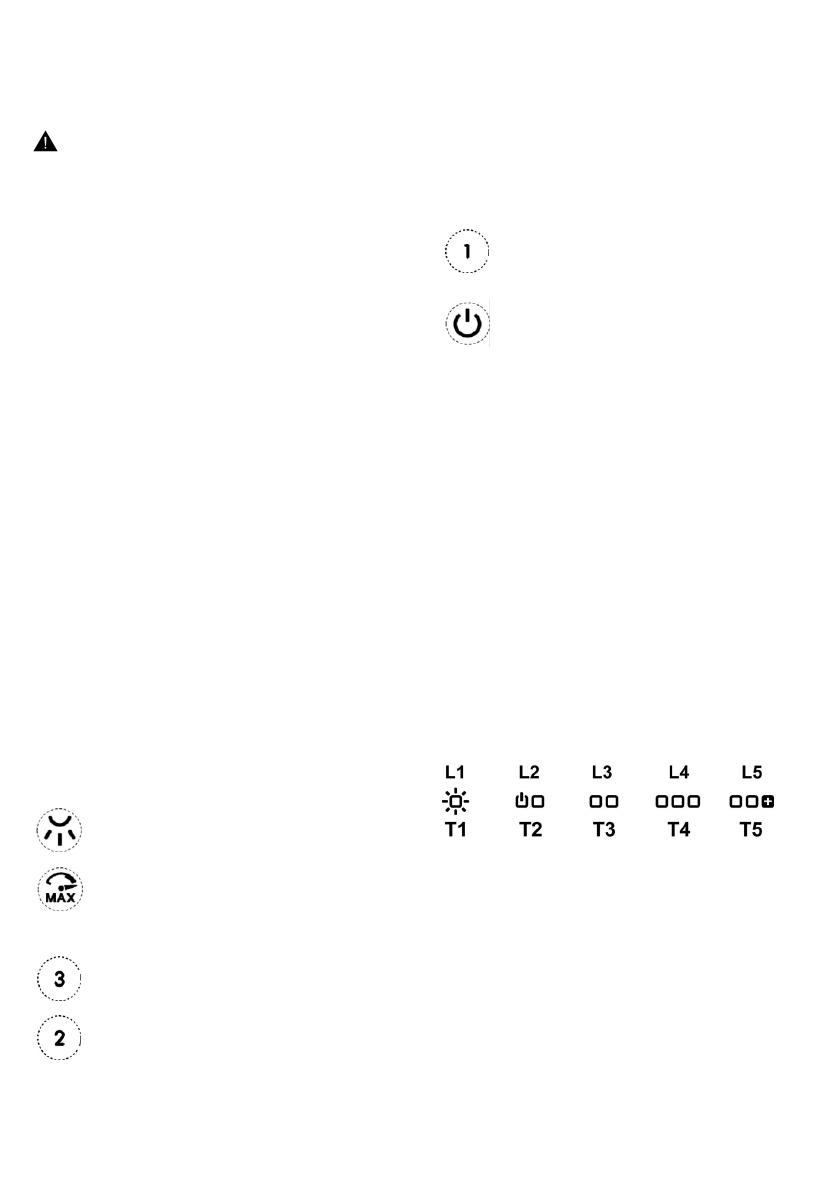

Model with 5 push-buttons control panel

T1.  Button ON/OFF lights

(Led

L1

 lit)

T2.  Button OFF – Selection button suction speed (power)

1

(Led

L2

 lit)

T3.  Selection button suction speed (power) 2

(Led

L2+L3

lit)

T4. Selection button suction speed (power) 3

(Led

L2+L3+L4

 liti)

T5. Selection button intensive suction speed (power)

(Led

L2+L3+L4

 lit + Led

L5

 flashing) - duration 5 minutes

– after which the hood automatically sets suction speed
(power)

2

.

Delayed switch-off of the hood (flashing LEDs):

It is possible to set the delayed hood switch-off by pressing
