Appliance designed, tested and manufactured according to:
• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC
62233.
• Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO
5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3;
ISO 3741; EN 50564; IEC 62301.
• EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2;
EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a
correct use in order to reduce the environmental impact:
Switch ON the hood at minimum speed when you start
cooking and kept it running for few minutes after cooking is
finished. Increase the speed only in case of large amount of
smoke and vapor and use boost speed(s) only in extreme
situations. Replace the charcoal filter(s) when necessary to
maintain a good odor reduction efficiency. Clean the grease
filter(s) when necessary to maintain a good grease filter
efficiency. Use the maximum diameter of the ducting system
indicated in this manual to optimize efficiency and minimize
noise.

Use

The hood is conceived for the suction of cooking fumes and
steam and is destined only for domestic use.
The hood is designed to be used either for exhausting or filter
version.

 Extraction version

In this case the fumes are conveyed outside of the building by
means of a special pipe connected with the connection ring
located on top of the hood.


 CAUTION

!

The exhausting pipe is not supplied and must be purchased
apart.
Diameter of the exhausting pipe must be equal to that of the
connection ring.



 CAUTION

!

If the hood is supplied with active charcoal filter, then it must
be removed.

Connect the hood and discharge holes on the walls with a
diameter equivalent to the air outlet (connection flange).
Using the tubes and discharge holes on walls with smaller
dimensions will cause a diminution of the suction performance
and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

!

Use a duct of the minimum indispensable length.

!

Use a duct with as few elbows as possible (maximum
elbow angle: 90°).

!

Avoid drastic changes in the duct cross-section.

 Filtration version

The aspirated air will be degreased and deodorised before
being fed back into the room.

In order to use the hood in this version, you have to install a
system of additional filtering based on activated charcoal.


Purifier

This product is also supplied with an Air Purifier (B) with
HEPA filters: this purifier is separate to the fumes extractor
(A). The air extracted by the purifier is cleaned of all macro
impurities as it passes through a HEPA (High Efficiency
Particulate Air) filter, which by way of its very high filter class
(F8), captures all impurities less than 0.1 micron in size,
whether dust, pollen, bacteria, etc. The purified air is then re-
introduced into the room.

Mounting

This type of cooker hood must be fixed to the ceiling.

Very heavy product; hood handling and installation must
be carried out by at least two persons.

Before beginning installation:

•

Check that the product purchased is of a suitable size for
the chosen installation area.

•  Remove the charcoal (*) filter/s if supplied (see also

relative paragraph). This/these is/are to be mounted only
if you want lo use the hood in the filtering version.

•  Check (for transport reasons) that there is no other

supplied material inside the hood (e.g. packets with
screws (*), guarantees (*), etc.), eventually removing
them and keeping them.


Expansion wall plugs are provided to secure the hood to most
types of walls/ceilings. However, a qualified technician must
verify suitability of the materials in accordance with the type of
wall/ceiling. The wall/ceiling must be strong enough to take
the weight of the hood.

Do not tile, grout or silicone this appliance to the wall.
Surface mounting only.

Operation

The hood has two operating modes: Fumes Extractor (A) and
Air Purifier with HEPA filters (B).
The two operating modes use two different motors and the
hood is programmed in such a way that both operating modes
cannot be simultaneously activated, see also the chapter
“Fumes Extractor motor (A) and Purifier motor (B) Priority
Management”


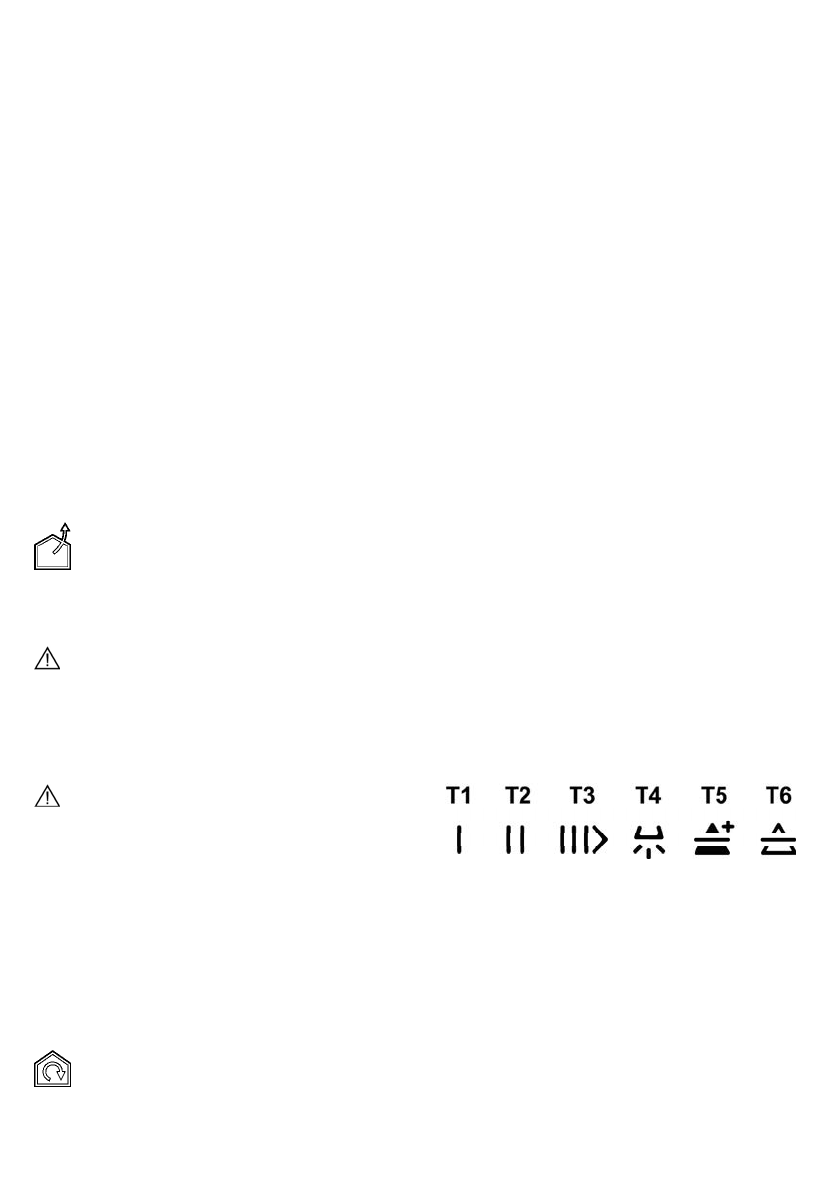

T1:

FUMES EXTRACTOR (A) - speed 1 selection key

Press to activate the

low

 speed (extraction power); Press

again to turn the extractor off.

T2:

FUMES EXTRACTOR (A) -

speed 2 selection key

Press to activate the

medium

 speed (extraction power); Press

again to turn the extractor off.
