22

Mounting

Before beginning installation:

•

Check that the product purchased is of a suitable size for
the chosen installation area.

•  Remove the charcoal (*) filter/s if supplied (see also

relative paragraph). This/these is/are to be mounted only
if you want lo use the hood in the filtering version.

•  Check (for transport reasons) that there is no other

supplied material inside the hood (e.g. packets with
screws (*), guarantees (*), etc.), eventually removing
them and keeping them.


This hood is designed for fitting in a cabinet or on some other
support.

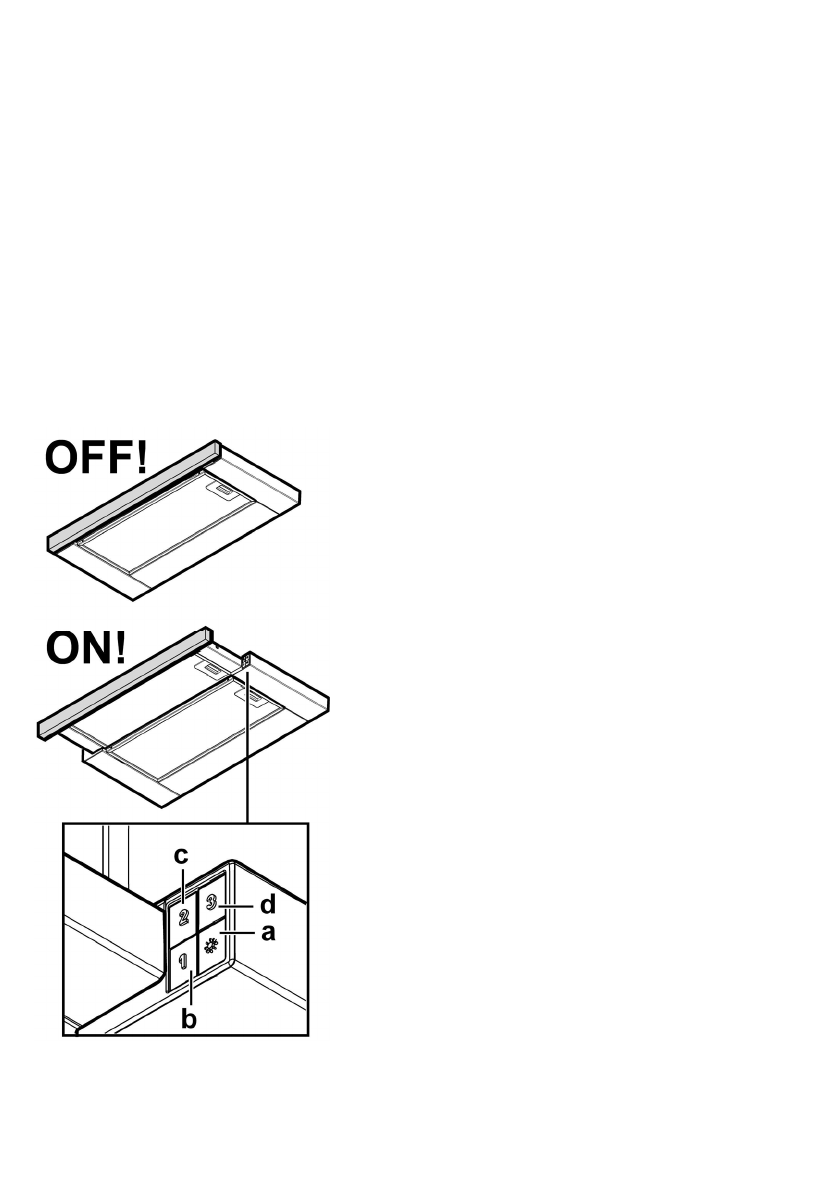

Operation

The hood is fitted with a control panel with aspiration speed
selection control and a light switch to control cooking area
lights.


a.

ON/OFF light switch

b.

Speed 1/OFF switch

c.

 2-speed selection

d.

3-speed selection

Maintenance

Cleaning

Clean using

ONLY

 a cloth dampened with neutral liquid

detergent.

DO NOT CLEAN WITH TOOLS OR

INSTRUMENTS

. Do not use abrasive products.

DO NOT USE

ALCOHOL!

Grease filter

Fig. 10-21
Traps cooking grease particles.

The grease filter

 must be cleaned once a month using non

aggressive detergents, either by hand or in the dishwasher,
which must be set to a low temperature and a short cycle.
When washed in a dishwasher, the grease filter may discolor
slightly, but this does not affect its filtering capacity.
To remove the grease filter, pull the spring release handle.

Charcoal filter (filter version only)

Fig. 20
It absorbs unpleasant odors caused by cooking.

The saturation of the

charcoal filter

 occurs after more or less

prolonged use, depending on the type of cooking and the
regularity of cleaning of the grease filter.
In any case it is necessary to replace the cartridge at least
every four months.
The charcoal filter may NOT be washed or regenerated.

Remove the grease filters.
Apply one charcoal filter each side and hook in onto the hood.
Refit the grease filter.

Replacing lamps

Disconnect the appliance from the electricity.

Warning!

Prior to touching the light bulbs ensure they are

cooled down.
Replace the damaged lamp.
Use E14 3W max LED lamps only. For more details, check
enclosed leaflet “ILCOS D” (alfanumeric position “

1d

”).

If the lights do not work, make sure that the lamps are fitted
properly into their housings before you call for technical
assistance.
