Operation

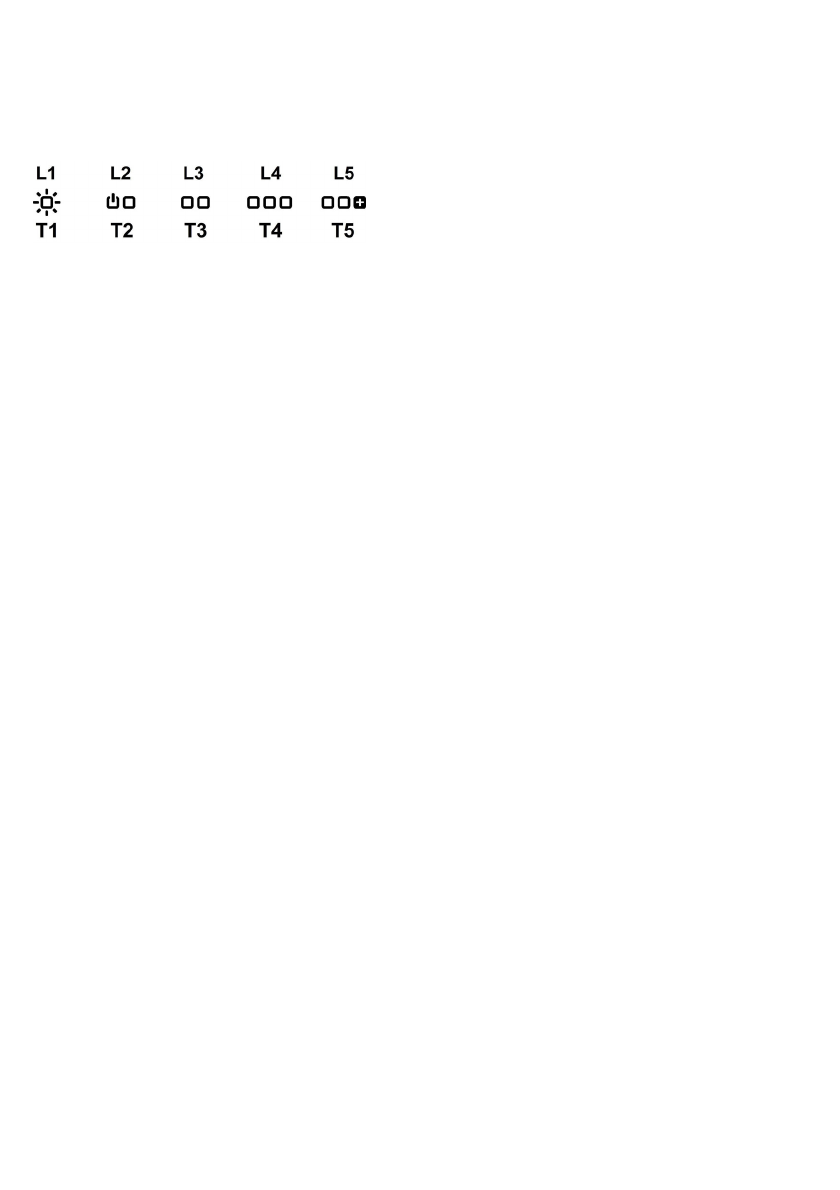

The hood is fitted with a control panel with aspiration speed
selection control and a light switch to control cooking area
lights.


T1.  Button ON/OFF lights

(Led

L1

 lit)

T2.  Button OFF – Selection button suction speed (power)

1

(Led

L2

 lit)

T3.  Selection button suction speed (power) 2

(Led

L2+L3

lit)

T4. Selection button suction speed (power) 3

(Led

L2+L3+L4

 liti)

T5. Selection button intensive suction speed (power)

(Led

L2+L3+L4

 lit + Led

L5

 flashing) - duration 5 minutes

– after which the hood automatically sets suction speed
(power)

2

.

Delayed switch-off of the hood (flashing LEDs):

It is possible to set the delayed hood switch-off by pressing
again for more than 2 seconds the button of the suction speed
(power) active at that time.
The available delayed switch-off options are:
Suction speed (power)

1

:

20 minutes

Suction speed (power)

2

:

15 minutes

Suction speed (power)

3

:

10 minutes

Intensive

 suction speed (power):

5 minutes


Filter saturation indicator

The hood is equipped with a function that warns the user, at
regular time intervals, when the filters are saturated and it is
necessary to perform their maintenance.

Grease filter saturation indicator:

 With the hood off

(OFF)

all suction speed (power) LEDs light up with steady light for 40
seconds.

Activated charcoal filter saturation indicator:

 With the

hood off

(OFF)

 all suction speed (power) LEDsflash for 40

seconds.

Activation of the active charcoal filter saturation
signal:

normally, this function is disabled; to activate it,

switch off the hood

(OFF)

 and simultaneously press

buttons

T3

 and

T5

 for more than 3 seconds. LEDs

L3

and

L5

 will start flashing.

To disable repeat the operation: LEDs

L3

 and

L5

 light up

with steady light.

Resetting the filters’ saturation indicator:

With the hood on

(ON)

 press button

T2

 for more than 2

seconds; all LEDs will light up briefly.

Note:

 if necessary, repeat the operation in case both

indicators (grease filter and activated charcoal filter) are
active.

Maintenance

Cleaning

Clean using

ONLY

 the cloth dampened with neutral liquid

detergent.

DO NOT CLEAN WITH TOOLS OR

INSTRUMENTS

. Do not use abrasive products.

DO NOT USE

ALCOHOL!

Grease filter

Fig. 16-18
Traps cooking grease particles.

The grease filter

 must be cleaned once a month using non

aggressive detergents, either by hand or in the dishwasher,
which must be set to a low temperature and a short cycle.
When washed in a dishwasher, the grease filter may discolour
slightly, but this does not affect its filtering capacity.
To remove the grease filter, pull the spring release handle.

Charcoal filter (filter version only)

Fig. 17
It absorbs unpleasant odours caused by cooking.

The saturation of the

charcoal filter

 occurs after more or less

prolonged use, depending on the type of cooking and the
regularity of cleaning of the grease filter.
In any case it is necessary to replace the cartridge at least
every four months.
The charcoal filter may NOT be washed or regenerated.


Circular carbon filter

Apply one on each side as cover to both the shield grids of the
motor impeller, then turn clockwise.
For the disassembly, turn counter-clockwise.

Replacing lamps

Fig. 19

Disconnect the appliance from the electricity.

Warning!

Prior to touching the light bulbs ensure they are

cooled down.
Replace the old light bulb with the one of the same type as
specified in the feature label or near the light lamp on the
hood.

1.

  Using a flat head screwdriver or equivalent tool, carefully

pry loose the light cover.

2.

  Remove the damaged light and replace with a new 12

Volt, 20 Watt (Maximum) halogen light made for a G-4
base SUITABLE FOR USE IN OPEN LUMINAIRES.
Follow package directions and do not touch new light
with bare hands.

3.

  Reinstall the light  cover. (it will snap shut).

If the lights do not work, make sure that the lamps are fitted
properly into their housings before you call for technical
assistance.
