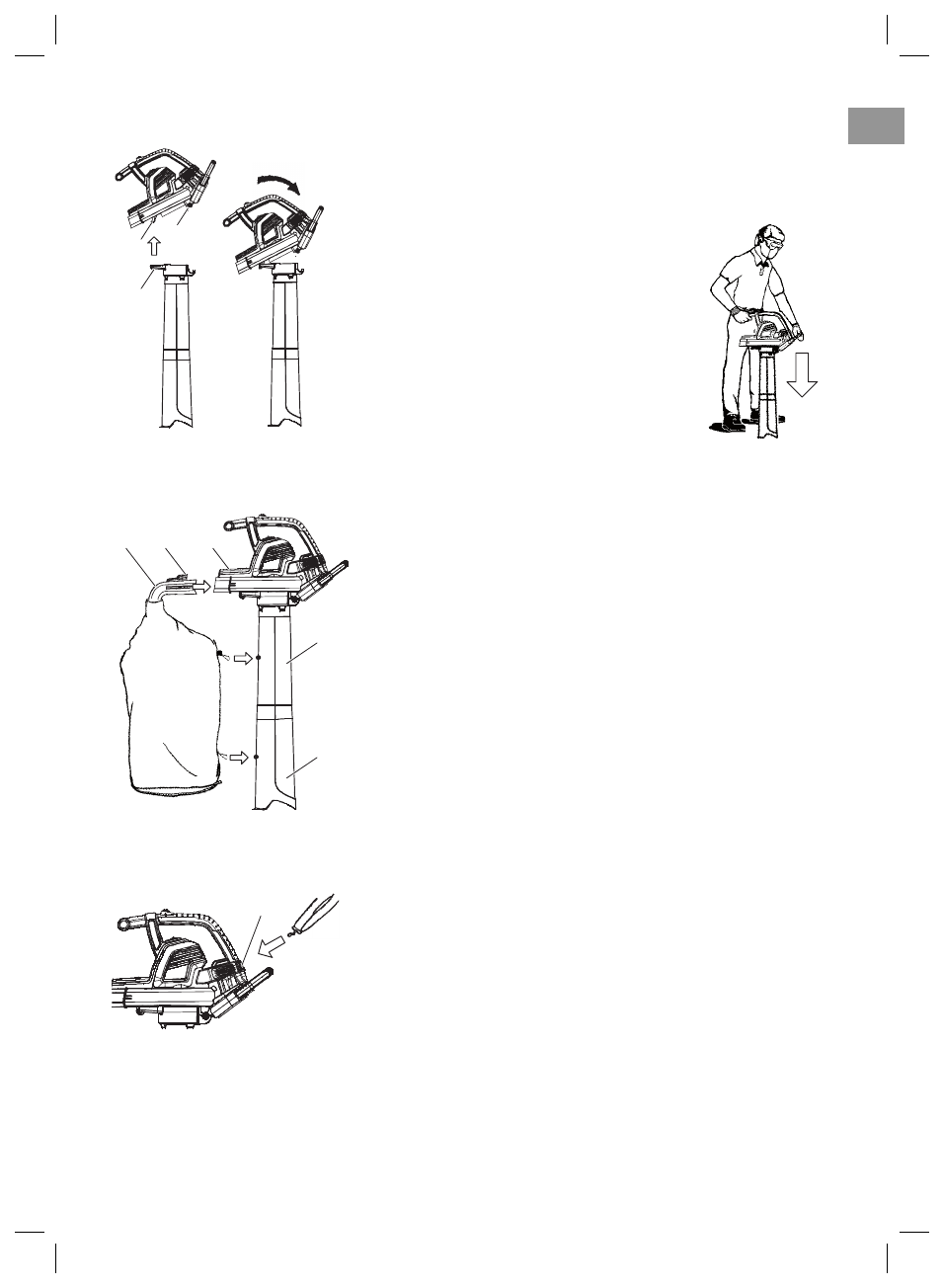

4.  Place the hinge

w

 of the upper tube into the hook

q

 on the

 bottom side of the unit.

5.  Using the ground for support

e

, pivot the blower unit until

tube snaps into the latches of the retaining posts

r

 on the

blower unit.

NOTE: A safety switch will prevent the
unit from starting if the vacuum tubes are
not installed correctly.

e

“Snap”

Attaching the collection bag:

2

3

t

z

9

0

1.  Align the grooves on the elbow tube

t

 with the grooves on the

blower outlet

2

.

2.  Push the elbow tube onto the blower outlet until it snaps into

place; elbow tube is secured by tube release button

3

.

3.  Clip the collection bag

z

 to the loops on the upper vacuum

tube

9

 and lower vacuum tube

0

.

NOTE: A safety switch will prevent the unit from starting if the
elbow tube is not installed correctly.

Attaching the shoulder strap:

u

For extra support when using your unit as a vacuum, a shoulder
strap is included with your unit. Attach the strap to the unit before
operation. Snap the hook onto the retainer

u

.
