electric instant water heater

Connection

to

Water

Main

WATERMASTER I Series. Water Heater Models: WHE 3.5 XTR H1, WHE 4.5

XTR H1, WHE 5.5 XTR H1

1.   Water heater shall be directly connected to cold water supply line

with working pressure from 0.15 to 0.6 MPa. If water pressure in wa-
ter supply line exceeds 0.6 MPa, a pressure reducing valve shall be
included to the feeding system to assure that working pressure does
not exceed 0.6 MPa.

2.   Water heater has inlet and outlet nozzles for connection to water

main, the nozzles are marked with indication labels; the diameter of
external thread is 10 mm (G3/8"). For connection to 12 mm (G1/2 )
pipes special adapters* shall be used. (* - not included into the scope
of supply

).

3.   To avoid water leakages use rubber sealing gaskets when connecting

all nozzles.

4.   A tap cutting off cold water supply shall be installed upstream its

inlet to water heater. It is prohibited to install the cut-off tap at hot
water outlet from water heater (Fig.14).

5.   After water heater installation and before power supplying, the sys-

tem shall be flushed with water to remove any impurities or free
particles inside water heater. Otherwise

,

water

heater

operability

may

be

affected

.

6.   It is RECOMMENDED to use a separate water filter at cold water inlet

to increase the heating

element lifetime if water hardness exceeds

450mg/l (

).

7.

Make sure that water heater is operable, let water flow pass through
it. Check the tightness of all connections and, if needed, tighten all
retaining nuts and screws

.

NOTE

:

Prior

to

water

heater

installation

,

flush

water

supply

pipes

with

flowing

water

.

Fig

.

1

4

WATERMASTER II Series.

Water Heater Models:

WHE

 5.0

XTN

Z

1,

WHE

 6.0

XTN

Z

1,

WHE

 6.5

XTN

Z

1,

WHE

 7.0

XTN

Z

1,

WHE

 8.0

XTN

Z

1.

1.   Water heater shall be directly connected to cold water supply line

with working pressure from 0.15 to 0.6 MPa. If water pressure in water
supply line exceeds 0.6 MPa, a pressure reducing valve shall be in

NOTE

:

Water  heater  installation  at  the  place  of  its  operation  and  electric

power  connections  shall  be  performed  by  the  specialized  organiza-

tion,  a  representative  of  the  manufacturer's  maintenance  service  or

experts licensed for execution of electric equipment assembling with

safety regulations observed.
In  the  event  of  violation  of  water  heater  operation  manual,  water

heater  is  not  subject  to  warranty  servicing,  and  the  manufacturer

cannot be held liable.

ATTENTION

!

If water heater is used at specially complicated (obsolete) water
supply  networks  with  high  amount  of  suspended  particulate
matter  and  impurities  contained  in  water  flowing  through  the
mains,  purifying  filters  shall  be  used  on  a  COMPULSORY  basis.
Please,  follow  this  recommendation,  other wise,  the  non-
execution  of  this  provision  may  influence  the  lifetime  of  the
device and warranty servicing conditions (up to refusal to execute
w a r r a n t y   l i a b i l i t i e s   b y   t h e   d e v i c e   m a n u f a c t u re r   a n d   i t s
maintenance services).

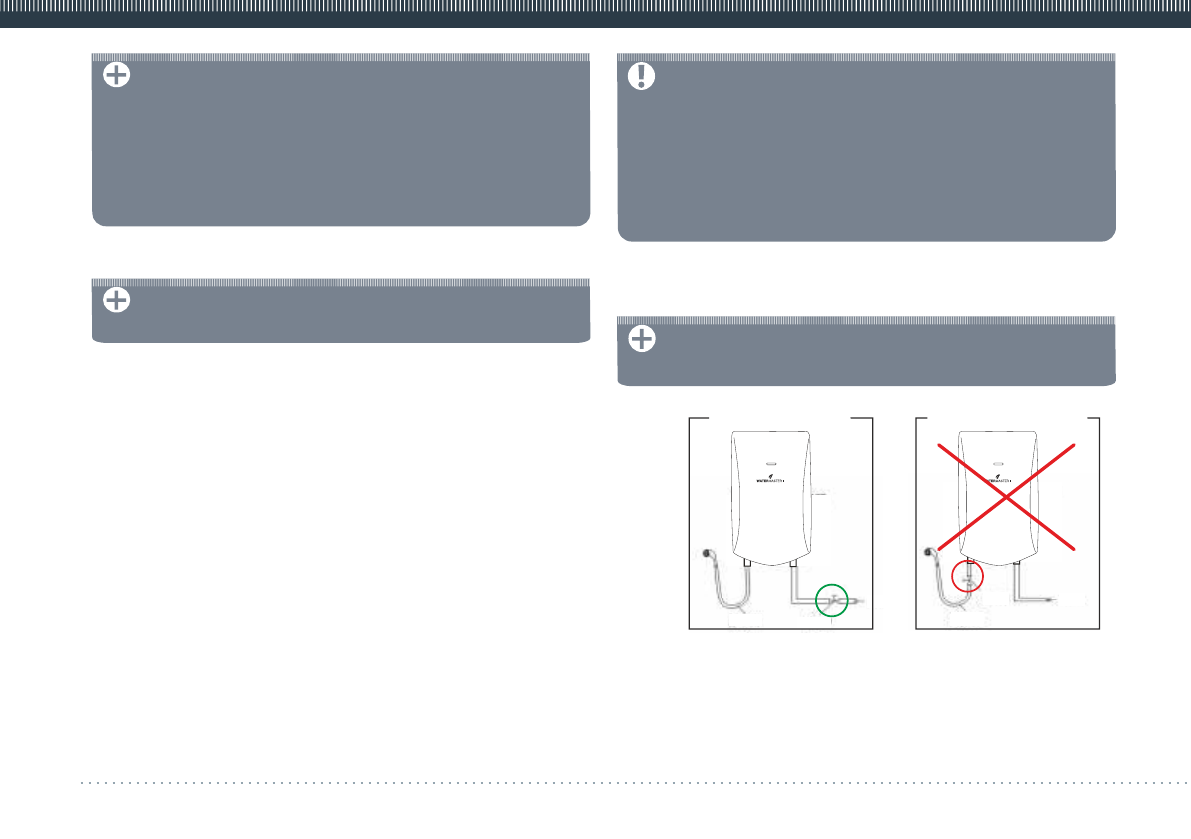

CORRECT ASSEMBLY

INCORRECT ASSEMBLY

outlet

tap

inlet

inlet

outlet

tap

NOTE

:

You must move out caps from inlet and outlet pipes before usage.
