iNUKE NU6000DSP/NU3000DSP/NU1000DSP User Manual

2.2  Rear panel

(10)

BREAKER

 (automated fuse, NU6000DSP only). After eliminating the cause of

faulty operation, simply depress the BREAKER and power up the unit again.

The BREAKER acts in place of common discardable fuses.

(11)

POWER SOURCE

 jack accepts the included IEC power cable.

(12)

VENTILATION FAN

 speed adjusts automatically to ensure

trouble-free operation.

(13)

TWIST- LOCKING SPEAKER OUTPUTS

 connect the amplifier to the speakers

using professional speaker cables with twist-locking plugs.

(14)

INPUTS

 route line-level input signals into these combination jacks using

XLR, balanced ¼" TRS, or unbalanced ¼" TS connectors.

3.  DSP Processor

3.1  Processor Functionality

The iNUKE DSP processor manipulates your signal in the digital domain, offering

tremendous flexibility and control. You may control and program the DSP

processor via either the iNUKE amplifier’s front panel or remotely by computer

using the BEHRINGER Amp Remote software (available for download from

behringer.com).
By using the DSP processor, you can program all amplifier functions and

parameters—except for the CH A and CH B input gain settings, which can only

be controlled using the CH A / CH B knobs on the amplifier’s front panel.

3.2  Front Panel control

The following material describes the  DSP's screen organization and how to

program the processor's various functions by manipulating your iNUKE amplifier's

front panel controls.

3.2.1  Main top-level screen

The top-level screen displays “iNUKE,” as well as the model name: NU1000DSP,

NU3000DSP, or NU6000DSP.

3.2.2  SETUP screens

The SETUP screens access the preset, panel lock, device naming, and LCD screen

contrast functions. To access these functions, press the SETUP button, and then

move up and down through the top-level screens by pressing either the SETUP

button or the UP / DOWN arrow buttons.

SETUP 1/4: Load Preset

The top-level Load Preset screen displays the current Preset name

(up to 10 characters) and Preset number (1–20). Subsidiary screens offer

options for loading, saving, and naming Presets.

Below the Preset name, this screen displays the “Load Preset” option by default.

Rotate the SELECT encoder clockwise to access the “Save Preset” option.

Note:

 Preset #1:INIT_DATA cannot be overwritten. Select this preset any time

you want to restore the amp's default settings.

Loading a Preset

1.  Make sure the “Load Preset” option appears on the screen. (Rotate the

SELECT encoder to toggle between “Load Preset” and “Save Preset.”)

2.  Press the SELECT encoder knob to access the DSP’s internal Preset list on the

next sub-screen.  The correct sub-screen will display the LOAD PRESET option

in the upper right-hand corner of the screen.

3.  Scroll up and down through the Preset list by rotating the SELECT encoder knob.

As you scroll, the Preset number will appear to the left below the disk icon.

4.  To load the selected Preset, you may either press the SELECT encoder or press

the UP arrow button.

Saving a preset

1.  Make sure the “Save Preset” option appears on the screen. (Rotate the

SELECT encoder to toggle between “Load Preset” and “Save Preset.”)

(10)

(12)

(13)

(14)

(11)

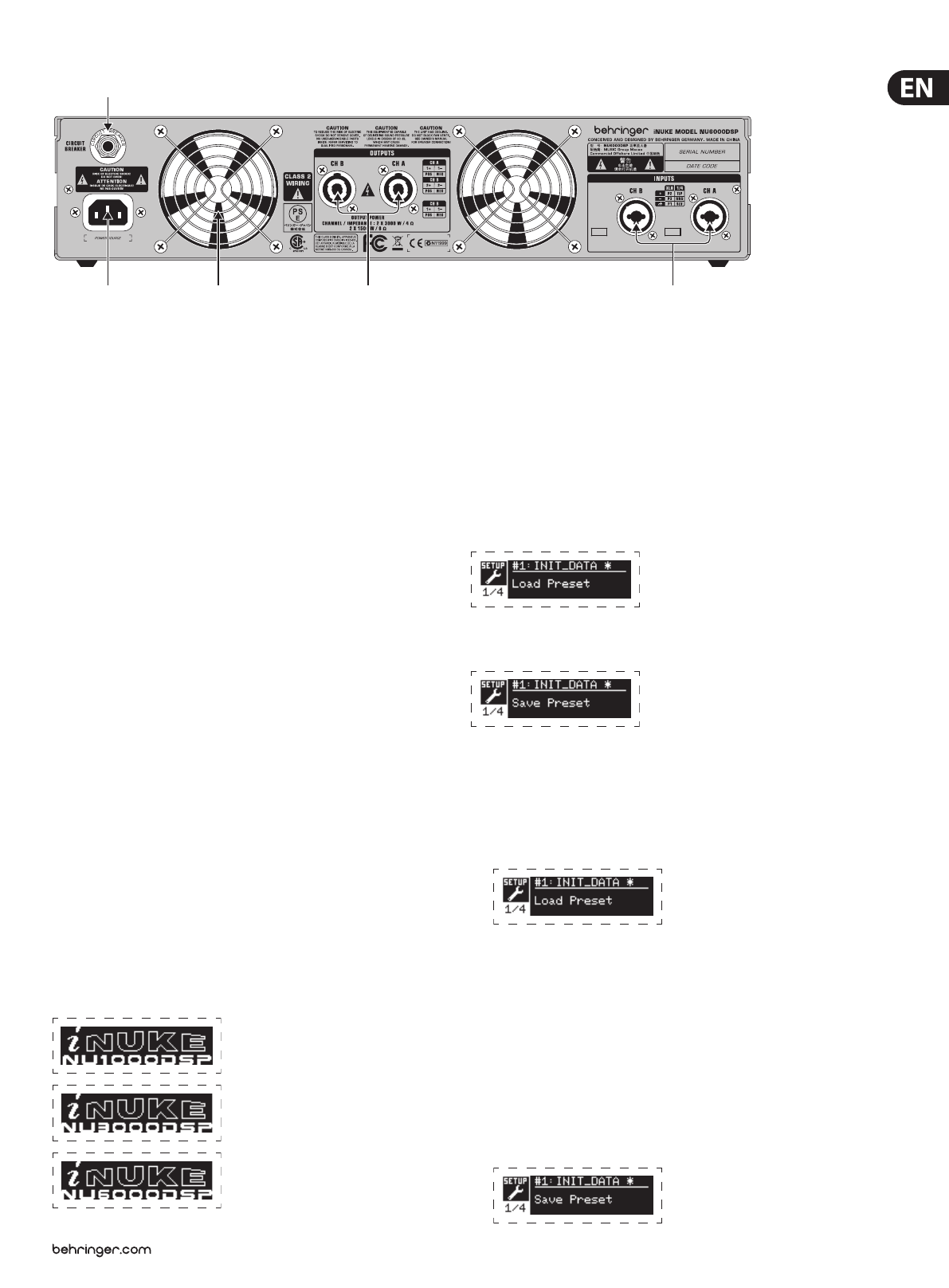

Rear panel control elements (NU6000DSP shown)
