Possible malfunctions and troubleshooting methods
Table 2

10. TROUBLESHOOTING

Failure

Possible causes

Troubleshooting method

Heating indicator light doesn’t light up,
water is not heated

1. Temperature adjustment device
is broken.

Contact a repairer, TIMBERK service
center.

2. Temperature limiter was actuated or
was not switched on.

Switch on the temperature switch
following instructions on its activation.
(page 15)

3. Temperature limiter is broken.

Contact a repairer, TIMBERK service
center.

Water doesn’t flow from the hot water
discharge cock

1. Water feed is cut off.

1. Wait until water supply is restored.

2. Water pressure is too low.

2. Switch on the water heater again,
when normal water pressure restores.

3. Water supply exhaust valve is
closed.

Water temperature is too high

Water temperature control system
is damaged.

Contact a repairer, TIMBERK service
center.

Water leakage

Seal at the point of pipe connection
is broken.

Replace the joint seal.

Water flows from the appliance’s case

Breaking of the internal tank
(corrosion)Seal at the point of the
heating element connection is broken.

Contact a repairer, TIMBERK service
center.

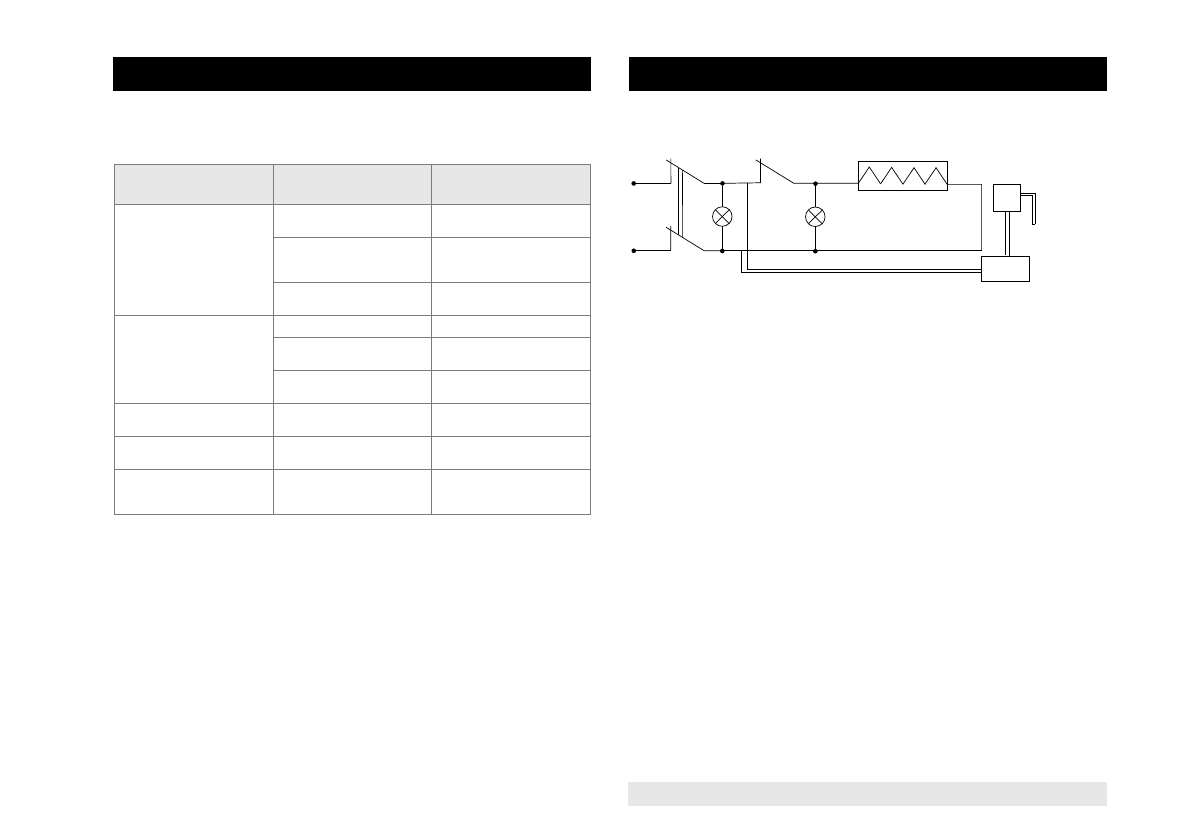

11. WIRING DIAGRAM

Fig. 10

Temperature
limiter

Thermostat

Heating

element

Power

Heating
