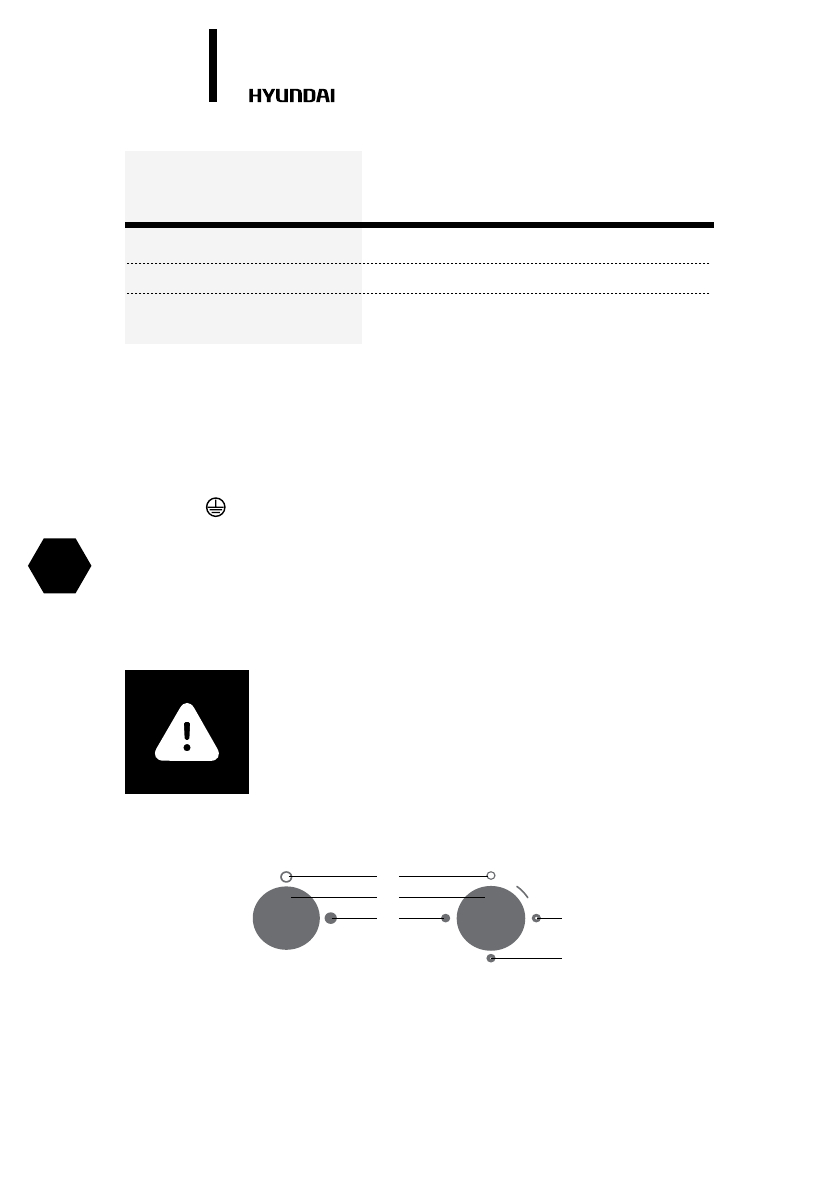

12.

Electrical instant water heater

EN

* For connection to the electrical mains, this series of water heaters is complete with a power
cord and a male plug. The power cord has length of 1.5 m and copper conductor section of 3x1.5
mm2.

Never use an electrical male plug and socket for connection of the water heater to the electrical
mains, except for H-IWR1-3P series. The water heater shall be connected to the 220 VAC power

supply source permanently with obligatory connection to the electrical grounding loop. Make

sure that resistance of the grounding loop is < 4 Ω. The electrical cable is led into the water

heater through its rear wall and connected to the terminal block according to marks on the rear

panel, where        - ground conductor, L - phase conductor, N - neutral conductor. To lead in and

connect the electrical cable, remove the appliance front panel. For that, unscrew the securing

screw in its upper part. After connection of the electrical cable to the terminal block, make sure

that all clamping screws of the terminal block are secured. Secure the cable inside the heater
using a clamping plate, place back the front panel, and turn in the securing screw in the upper
part of the appliance.

OPERATION

* The service life of the power indicator is 3000 hours continuously. Therefore, disconnect the appliance from the

electrical mains after use to extend the power indicator life.

  H-IWR1-3P*

  H-IWR1-5P

  H-IWR1-6P

3500

5500

6500

1,5

2,5

4,0

Appliance series

Power, W

Copper

conductor

section,

min, mm

2

Circuit breaker,

min, A

OFF

ON

5

3

4

2

1

16

25

32

CAUTION!

Refer to «Water heater safe operation and installation rules».
