Installation Instructions:
THE GUARANTEE IS SUBJECT TO CORRECT INSTALLATION.
The instant water heater is a novel appliance designed to supply hot water instantly while conserving
energy. When the pressure switch is on, then the heating element heats the flowing water.
General information
1. The appliance must be installed and commissioned by a qualified technician in accordance with
established regulations and local health and safety regulations.
2. It is recommended that a residual current device(ELCB)will be incorporated in the circuit.
3. Installation of water pipeline must be completed prior to the installation of the heater and must be
checked to assure that there are no water leaks.
4. This appliance requires water pressure of minimum 20 kPa (0.2 bar).
5. WARNING! The outlet (with red ring) of the product acts as a vent and must not be connected to anything
other than the hose and showerhead supplied.
6. Without supervision the use of the appliance by young children or infirm person is forbidden.Playing with
the unit by young children is forbidden.
Installation of sink& shower unit 3.5 kW - 6.5 kW
1. The shower unit should be installed on the wall
.
2. Remove cover in order to connect the electric cable to the terminal block inside the unit.(unscrew 2 screws)
3. The unit should have a separate electric cable in the switch board (see table 2)
4. Connect the appliance to the water network and check if there are no leaks as soon as the unit is connected.
Use the hoses supplied with the appliance, do not re-use old hoses
5. After connecting the water inlet to the unit, connect the electric cable to the designed terminal blocks
.
The appliance must be earthed and the earth cable (show with a letter in the drawing) is fixed to the
terminal marked by the symbol .
WARNING! The appliance must be grounded
6. The unit must be connected to the electric supply by a 2-pole
switch
7. Before performing any operations, disconnect the appliance from
the electricty mains using the external switch then connect the
power to cable to the appliance.
8. Connect the electric cable with the designated clamp.
9. Return the cover (2 screws)

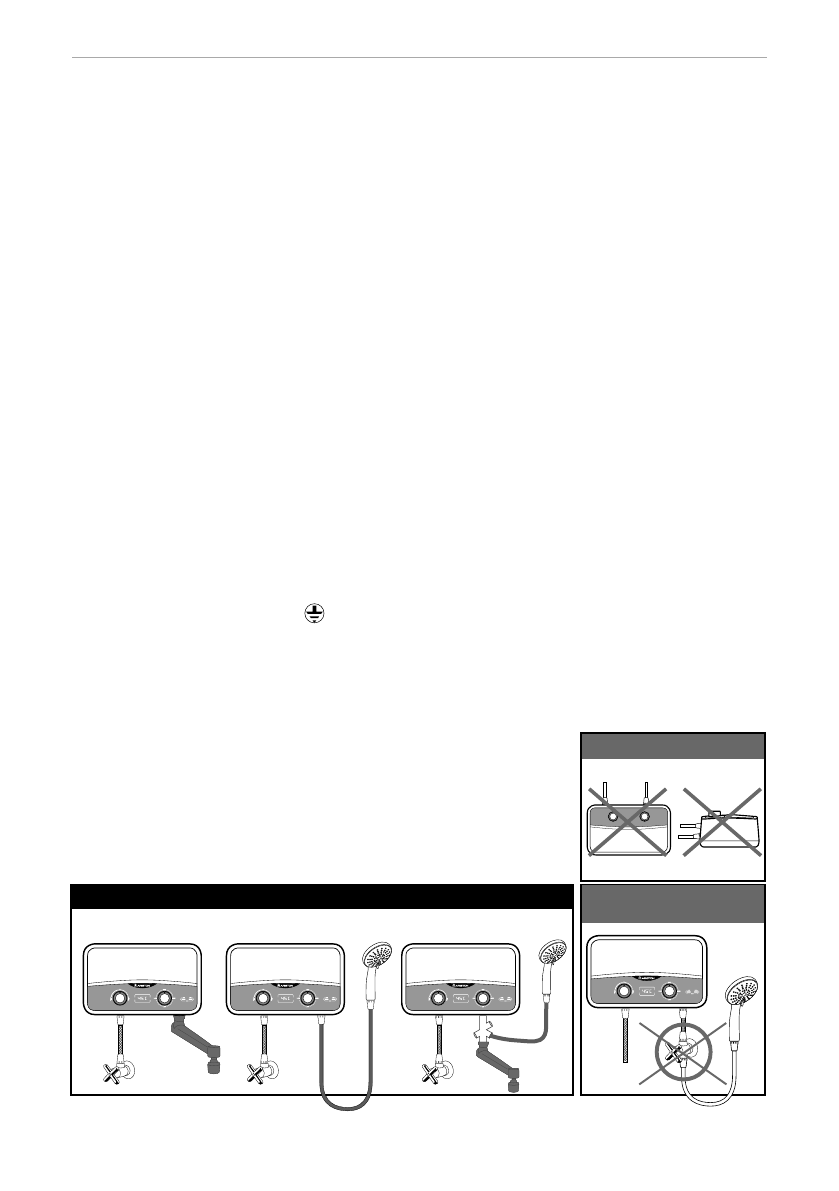

Danger!!!
Incorrect Installation
Incorrect Installation
Correct Installation
Water
Inlet
Water
Inlet
Water
Inlet
Water
Outlet
Water
Outlet
Sink
Shower
Sink & Shower
Faucet
Faucet
Faucet
