Instruction manual

3

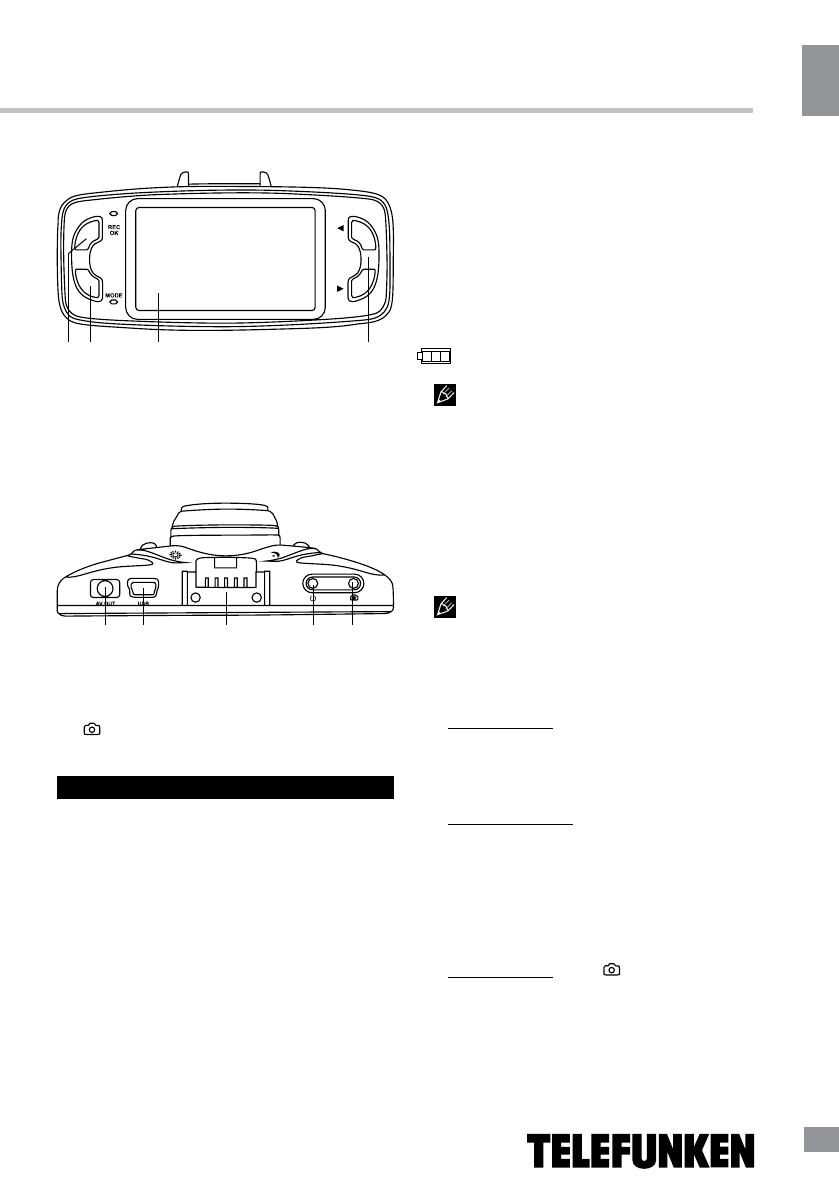

Rear panel

5 6

7

8

5. REC/OK button
6. MODE button
7. Display
8. PREV/NEXT button

Top panel

9

10

11

12 13

9. AV out
10. MiniUSB jack
11. Mounting nut
12. PWR button
13.   button

Operations

Mounting

•  Insert the fixing pins on the top of the

stand into the bracket holding holes in the
bottom of the unit and move the unit backward
until a click to fix it tightly to the bracket.

•  Press the suction cup to a surface in the

car, then turn the ring to the LOCK position.
Make sure the stand is fixed properly to the
surface.

•  You can adjust the angle of the stand

by loosening the washer and bending the

assembly knot.

•  To unmount the stand, turn the ring to the

UNLOCK position, then lift the plastic ear on the
suction cup.

Power and charging

To charge the battery of this unit connect

its USB port to the PC with the supplied USB
cable; or connect it to a car lighter socket
with the supplied car adapter. The power icon

 on the bottom right corner of the display

indicates the remaining battery power.

 You can also connect the power cable to

the holder to in order to achieve an optimal and
convenient location of the cable in the car.

Recording

•  Before you start recording, insert a MicroSD

memory card into the memory card slot of this
unit until a click. Insert the card with correct side.
After the card is inserted the device will turn
off in order to preserve the information. Press
POWER button to turn it on again.

  MicroSD capacity supported: up to

32 GB, class 4 or higher. For correct and
satisfactory operation, licensed MicroSD
memory cards of famous brands should be
used with this unit. Avoid using memory cards
of unknown brands.

•  Auto recording: After you connect

the stand of the unit to car power source,
recording will be started automatically. After
you disconnect the power source, the unit will
continue recording till the battery is depleted.

•  Manual recording: Press PWR button to

switch on the unit (press and hold it again if
you want to switch off the unit). In recording
mode the top left corner of the display shows
the camera symbol indicating that the unit is
ready for recording. Press REC/OK button to
start recording. Press this button again to stop
recording.

•  Taking photos: Press   button in

recording mode to take 4000x3000 resolution
photos with the 5 mp camera.

•  While recording, the recording time is
