• If you change from liquid gas to natural gas
G20 20 mbar, undo the by-pass screw ap-
proximately 1/4 of a turn.
• If you change from natural gas G20 20 mbar
to natural gas G20 13 mbar
1)
undo the by-
pass screw about 1/4 of a turn.
• If you change from liquid gas to natural gas
G20 13 mbar
1)
, undo the by-pass screw
about 1/2 of a turn.
• If you change from natural gas G20 13
mbar
1)
to natural gas G20 20 mbar to tight-
en the by-pass screw about 1/4 of a turn.
Warning!
Make sure the flame does not
go out when you quickly turn the knob
from the maximum position to the minimum
position.
Electrical connection
• Make sure that the rated voltage and type of
power on the rating plate agree with the volt-
age and the power of the local power supply.
• This appliance is supplied with a mains ca-
ble. It has to be supplied with a correct plug
which can hold the load that the rating plate
rates. Make sure that you install the plug in a
correct socket.
• Always use a correctly installed shockproof
socket.
• Make sure that there is an access to the
mains plug after the installation.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
• There is a risk of fire when the appliance is in
connection with an extension cable, an
adapter or a multiple connection. Make sure
that the ground connection agrees with the
standards and regulations.
• Do not let the power cable to heat up to a
temperature higher than 90° C.
Make sure that you connect the blue neutral ca-
ble to the terminal with a letter "N" on it. Con-
nect the brown (or black) phase cable to the
terminal which has a letter "L". Keep the phase
cable connected at all times.
Replacement of the connection cable
To replace the connection cable use only
H05V2V2-F T90 or equivalent type. Make sure
that the cable section is applicable to the volt-
age and the working temperature. The yellow/
green earth wire must be approximately 2 cm
longer than the brown (or black) phase wire.

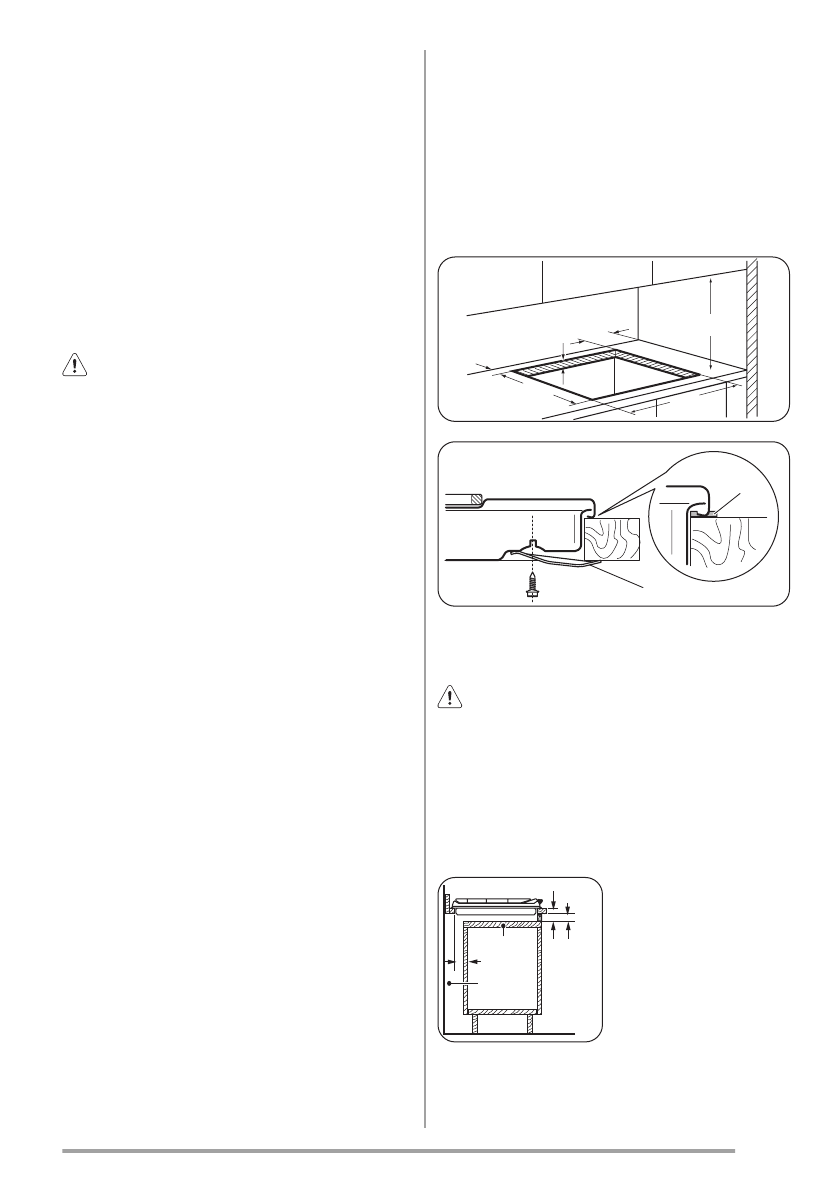

Building In
min. 55 mm
min. 650 mm
550 mm
min. 100 mm
30 mm
470 mm
B
A
A) supplied seal
B) supplied brackets
Caution!
Install the appliance only on a
worktop with flat surface.
Possibilities for insertion
Kitchen unit with door
The panel installed below the hob must be easy
to remove and let an easy access in case a
technical assistance intervention is necessary.
min 20 mm
(max 150 mm)
30 mm
60 mm
b
a
a) Removable panel
b) Space for connections
11
