26

ВСТРАИВАЕМАЯ ГАЗОВАЯ ВАРОЧНАЯ ПАНЕЛЬ

GAS BUILT-IN HOB

ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ • USER GUIDE

The  flame  on  the  small  output  is  regulated  in  the  factory.  When  the  injectors  have  been

replaced or there are special mains pressure conditions, it may be necessary to regulate the

minimum again.

The operations necessary to perform this operation are the following:

•  Light the burner.

•  Turn the knob to the minimum position.

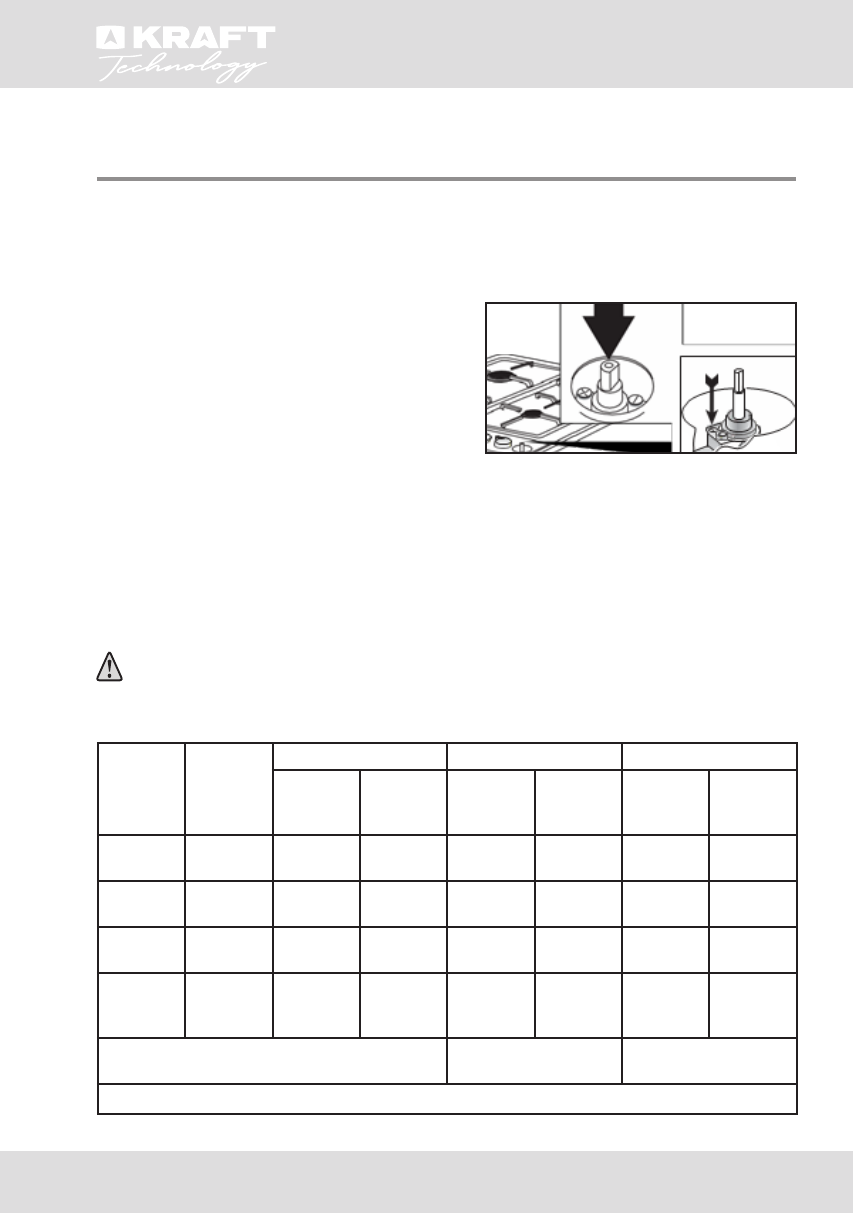

•  Take out the knob (and gasket if there is one)
•  Using  a  suitably  sized  screwdriver  turn  the

regulation screw inside or by the side of the tap

shaft until a small regular flame is obtained.

•  Put the knob back on and turn it quickly from the

maximum position to the minimum position, checking that the flame does not go out.

•  For burners with safety valve make sure that the regulation obtained is sufficient to maintain

heating of the thermocouple. If it is not increase the minimum.

REGULATION OF MINIMUM FOR LPG

To  regulate  the  minimum  for  LPG,  completely  tighten  (clockwise)  the  screw  inside  or  next

to  the  gas  tap  pin.  The  operations  described  above  can  easily  be  performed  whatever  the

positioning or fastening of the hob to the cabinet.

 IMPORTANT! THE BURNERS REQUIRE NO REGULATION OF THE PRIMARY AIR.

settInG tHe MInIMA

Burner

(heights

cover)

(mm)

Bypass

1/100 (mm)

Thermal power (*)

(kW)

Liquid gas

Natural gas

Rated

Reduced

Output

(g/h) G30/

G31

Injector

1/100mm

Output

(l/h) G20

Injector

1/100мм

Big

(

Ø

 = 100)

44

2.80

0.80

204/200

85

264

115

Medium

(

Ø

 = 75)

34

1.70

0.60

124/121

65

166

97

Small

(

Ø

 = 55)

29

0.95

0.40

70/68

50

91

72

WOK-

burner

(

Ø

 = 132)

64

3.1

1.45

226/221

90

278

130

Rated supply pressure (mbar)

(1 mbar

Ø

 10,197mm H2O)

G30 = 28 – 30

G31 = 37

G20 = 20

(*) = With dry gas and with greater calorific power (Hs ) at 15°C and 1013.26 mbar

Burner and nozzle characteristic table
