5.

 When product is mounted on a drawer, if it is possible to touch lower

side of product, this section should be separated with a wooden shelf.

6.

 While mounting cooktop on a closet, as shown in the figure above, in

order to separate between closet and cooktop, a shelf should be mounted.
If it is mounted on a built-in oven, there is no need to do that.

7.

 If your cooktop will be mounted next to right or left wall, the mini-

mum distance between wall and cooktop should be 50 mm.

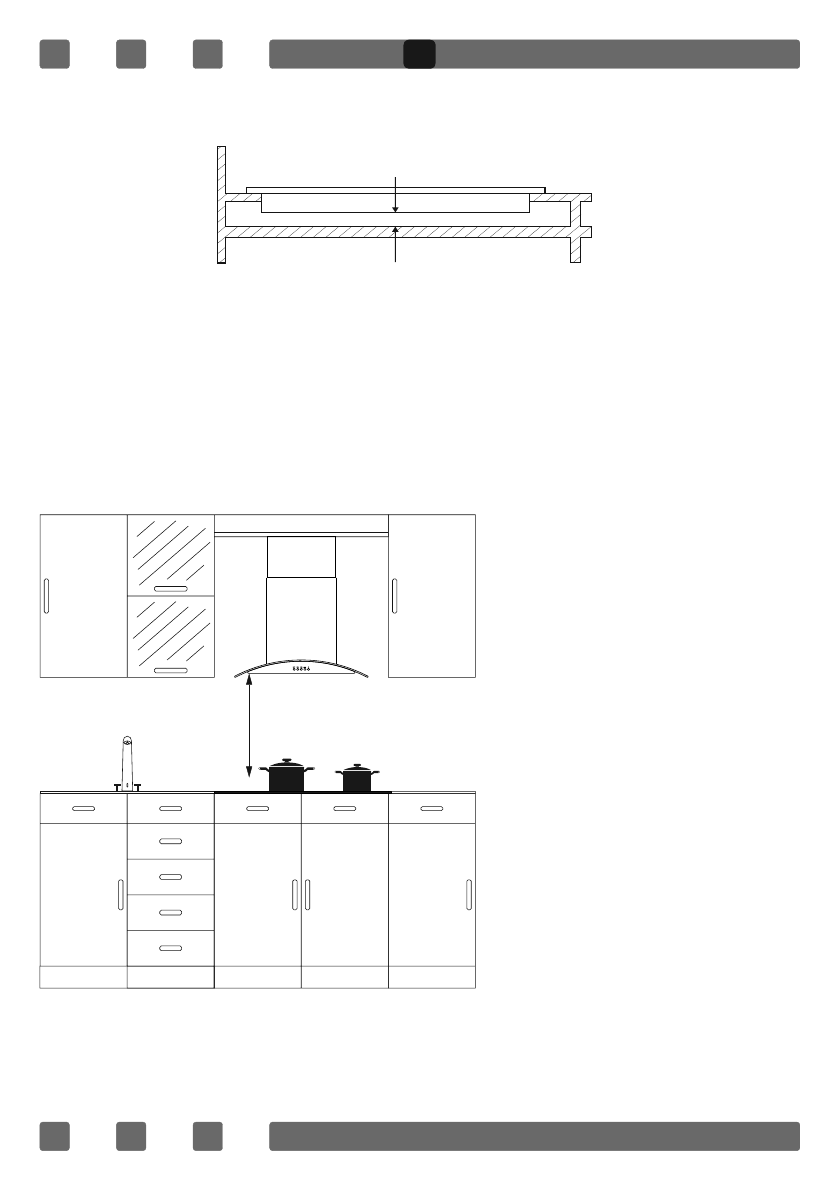

CORRECT PLACE FOR INSTALLATION

      Product is designed in

accordance with the kitchen

counters supplied from

market. A safe distance

should be left between the

product and kitchen walls

and furniture.

If hood/aspirator will be

installed over your appli-

ance, obey to the recom-

mendation of hood/aspirator

manufacturer for assembly

height. (min. 65 cm)

The gap that cooktop is

to be placed on the counter

should be cut in line with

cooktop installation dimen-
sions.

For  installation  of  the  product,  the  rules  specified  in  local  standards

related to electricity should be complied.

min. 30 cm

Figure 2

650 mm min.
