Connect your appliance to gas cock from the shortest way and in

a manner to prevent any leakage. For safety, the hose used should be

maximum 125 cm and minimum 40 cm.

4.

While making gas leakage control; never use lighter, match, glowing

cigarette or similar inflammable matter.

5.

Apply soap bubble on connection point. If any leak/leakage exists,

foaming will occur on soaped region.

6.

 If the cooktop is to be mounted on a cabinet or openable drawer,

a heat protection panel having 15 mm minimum opening should be

mounted under the cooktop.

IF BUILT-IN OVEN IS PLACED UNDER COOKTOP;

Gas pipe should be affixed in a way not to touch the oven below, sharp

edges and corners, not to be pulled in a manner to be twisted and
strained. Make gas connection from right part of the cooktop, fasten the
hose by use of clamp.

INSTALLATION OF COOKSTOP
1.

 Detach the burners, burner hoods and grills from the product.

2.

 Turn the cooktop down and place on smooth ground.

3.

 In order to prevent entrance of foreign substances and liquids be-

tween cooktop and counter, apply the paste given in package to the sides

of lower guard of counter. For corners, curl paste and increase curls till

filling corner gaps.

4.

 Turn cooktop again and align with and place on counter.

5.

 Fasten up your cooktop on counter by using the clamp and screws

supplied.

On the assembly chart given in next page, it is shown how to assemble

your cooktop.

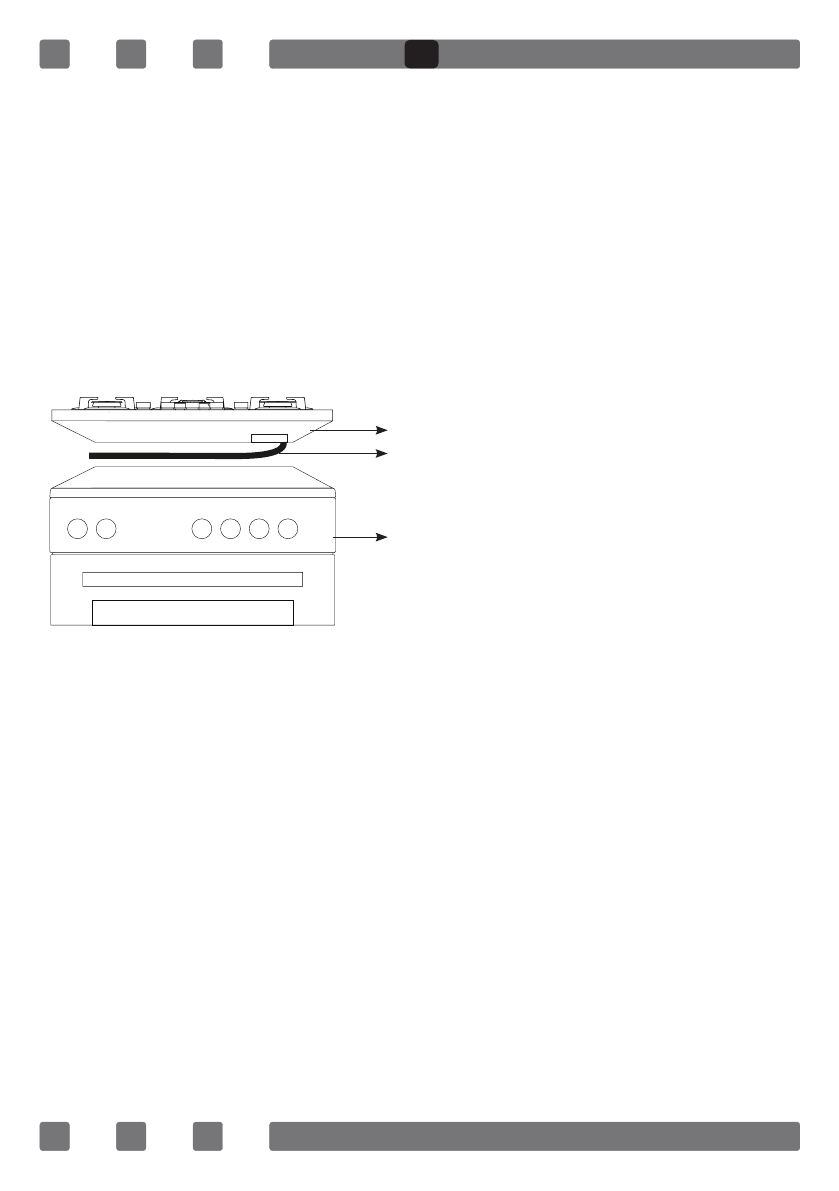

Cooktop
Hose

Oven

Figure 1
