20

English

This appliance is to be built into a kitchen unit or 450 mm worktop, providing

the following minium distances are allowed:

�

The edges of the hob must be a minimum distance of 60 mm from a side or

rear wall.

�

700 mm between the highest point of the hob surface (including the burners)

and the underside of any horizontal surface directly above it.

�

400 mm between the hob surfaces, providing that the underside of the

horizontal surface is in line with the outer edge of the hob. If the underside of the
horizontal surface is lower than 400 mm, then it must be at least 50 mm away from
the outer edges of the hob.

�

50 mm clearance around the appliance and between the hob surface and

any combustible materials.

�

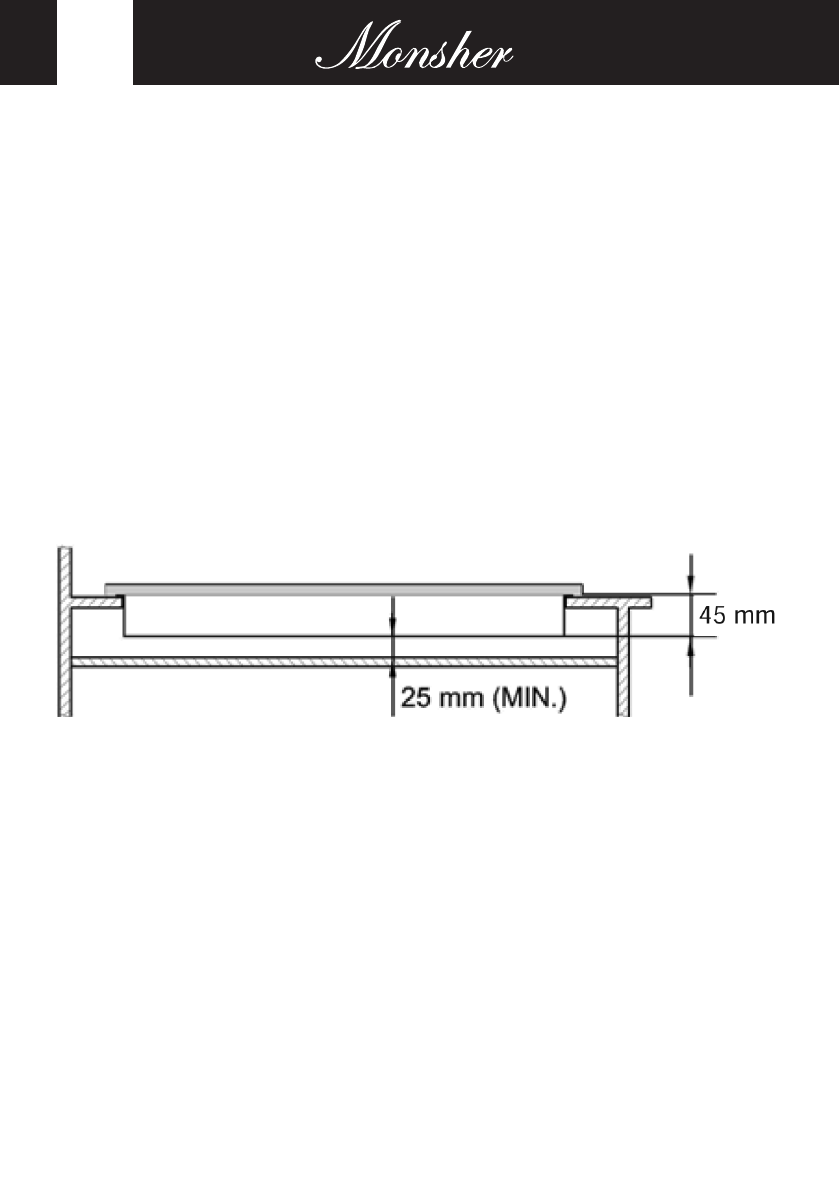

You must have a gap of at least 25 mm and at most 74 mm between the

underneath of the appliance and any surface that is below it.

— An oven must have forced ventilation to install a hob above it.
— Check the dimensions of the oven in the installation manual.
— The cut out size must obey the indication.
