TEchnical passporT

English

Electric hob

To obtain these changes, please,

follow the instructions:

a) Take the therminal box cover

making pressure on the sides clamp as

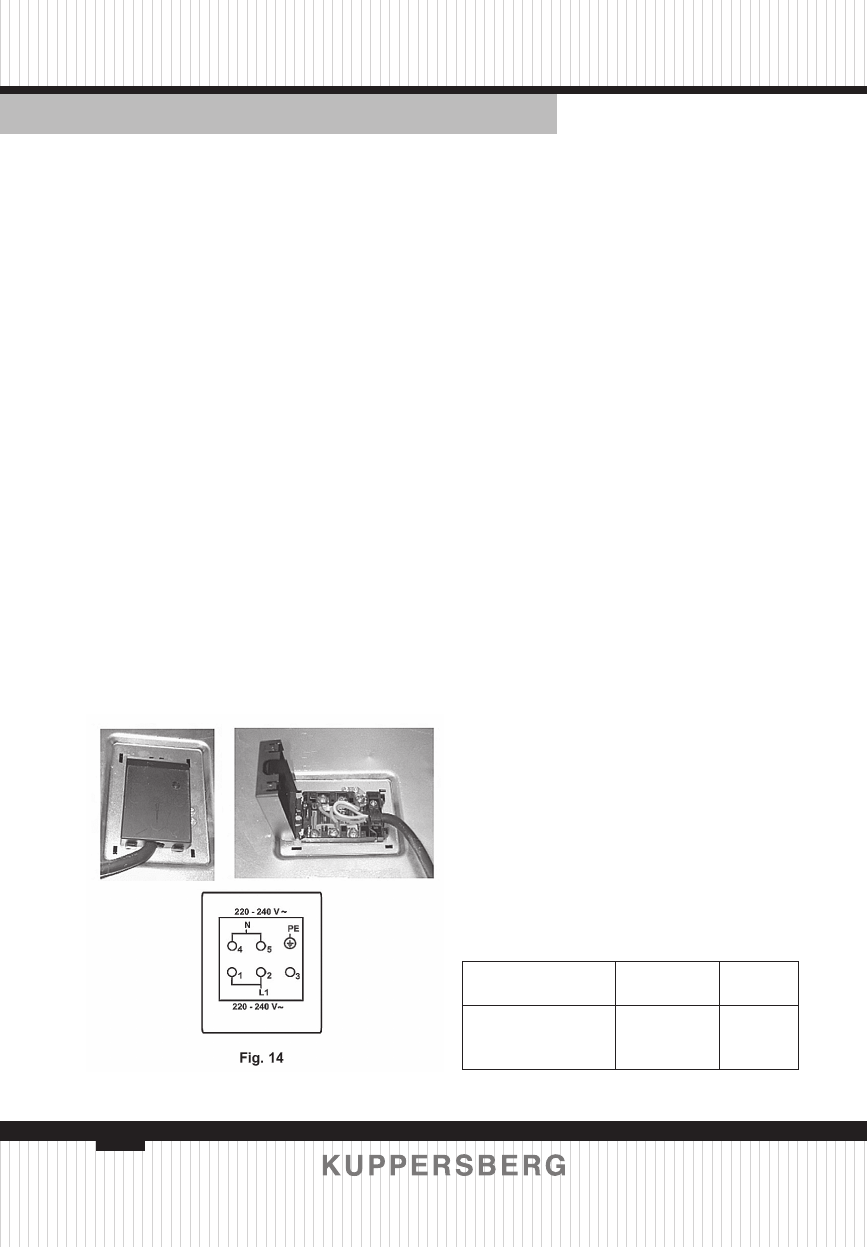

indicate  in  the  fi gure  stamped  on  the
cupboard (see fi g. 14).

b) Remove the connection jumpers

on the clamp following the scheme of

page 16 (attached on the body).

c) Insert the input cable with

adequate section (Table 6) into the
chock.

d) C onnect the phase cable into

the clamp and the «earth» cable in the
relative clamp.

e) H old up the input cable with the

pertinent stop cable.

f) Close the cupboard again and

press until the closing turn.

MAINTENANCE

Before doing any action, disconnect

the appliance from the input power.

COMPONENTS SUBSTITUTION

To replace the components lodged

in the internal part, is necessary to take
the appliance up from the fauwrnaiytu
trhee, obvoettrotumrn. it, loosen the
screws and take

After the se actions, it’s possible to

work on the plates, commutators and
clamps.

For the maintenanc e of the cable

it’s necessary to overturn the hob.

In case of substitution of the input

cable, the installer must keep the
«earth» conductor longer than «live»
ones, and must respect the cautions in
paragraph «ELECTRICAL CONNECTION».

To reassemble the appliance repeat

the inverse process.

TECHNICAL CHARACTERISTICS
OF THE ELECTRICAL COMPONENTS

To facilitate the job of the installer we

present a table with the characteristics
of the components.

TABLE 6

TYPE AND SECTION OF THE POWER

CABLES

MODEL

Single

Phase

Cable

FA6VS01

- FA6VS02 -

FA6VS***

3X2.5

mm

2(*)

H05SS-F

(*) keeping in mind the diversity factor
