INJECTORS TABLE

Type of gas

G20

G30/G31

Gas pressure

20 mbar

28-30/37 mbar

Burner type

Max power input, kW

Min power input, kW

injector Ø

Auxiliary

1.00

0.30

0.72

0.50

Semi-Rapid

1.75

0.44

0.97

0.65

Rapid

3.00

0.75

1.15

0.85

Triple Ring

3.30

1.50

1.24

0.91

ADJUSTING THE MINIMUM FLAME WHEN CHANGING THE GAS TYPE

When changing the type of gas, the adjustment of the flame must be carried out as follows:
- light the burner and remove the knob;
- turn the tap to the minimum setting and insert a screwdriver in the rod;
- tighten and reduce the flame, or loosen to increase the flame.
See

figure 7

 above.

Note

: for gas type

G30/G31

 fully tighten the regulating screw.

Then check the following:
- quickly turn the knob form max. to min. position and check if the flame doesn’t blow out.
- for the burners with gas safety thermocouple the flame must slightly lick the thermocouple
- if after several minutes the flame doesn’t blow out, the adjusting has been made correctly. Otherwise,
repeat the operation of adjusting the minimum flame, increasing the setting.

After the adjusting operation the flame must result small, but uniform and stable all around the burner crown.

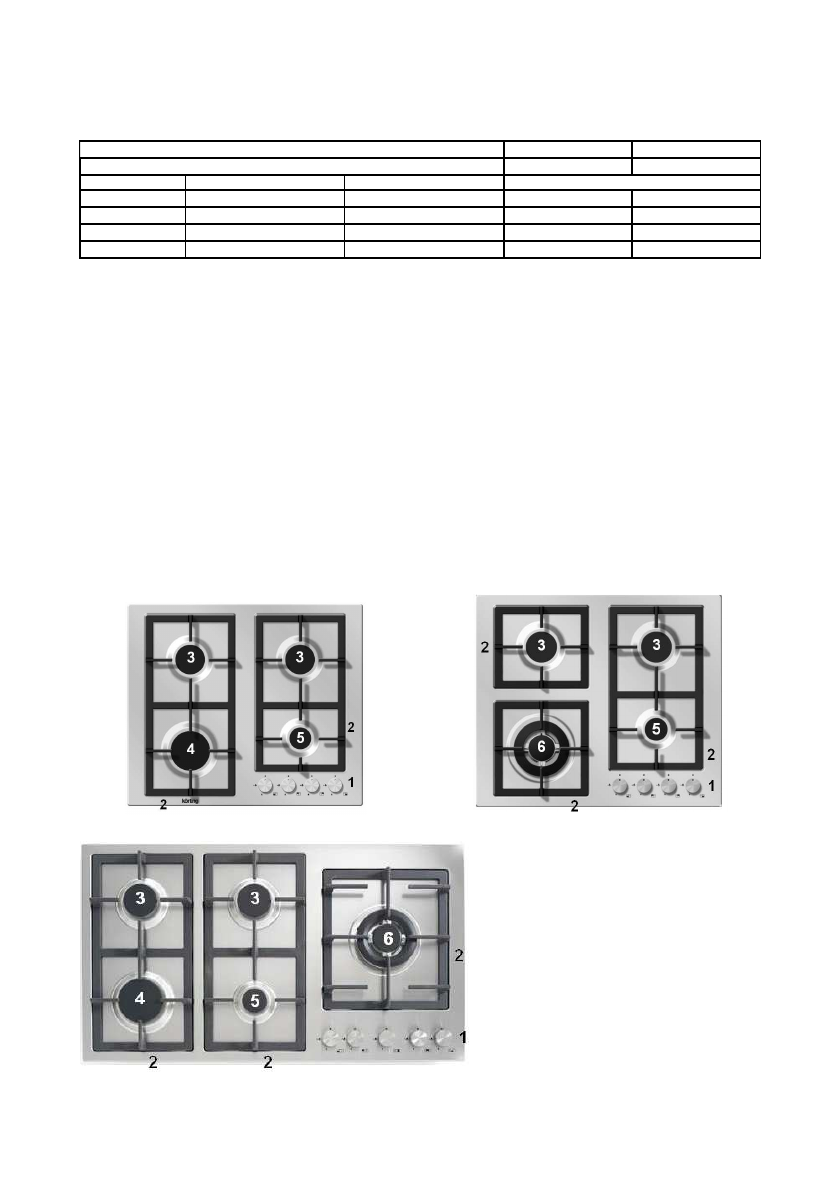

USING THE GAS HOB

Description of different types of hobs

      Figure 8.1

         Figure 8.2

1. Control panel.
2. Cast-Iron grids.
3. Semi-rapid burner.
4. Rapid burner
5. Auxiliary burner.
6. Triple ring burner.

Figure 8.3
