Warnings:

The induction hob must be installed by a
properly qualified person. We have our own
qualified installers. Never try to install the
appliance yourself.
The induction hob must not be installed above
refrigerators, freezers, dishwashers or tumble
dryers.
The induction hob should be installed so that
optimum radiation of heat is possible.
The wall and the area above the hob should
be able to withstand heat.
To avoid any damage, the sandwich layer
and adhesive should be heat-resistant.

4.

Connection to power supply

The socket should be connected in compliance
with the relevant standard, to a single-pole
circuit breaker. The method of connection is
shown in Figure 3.

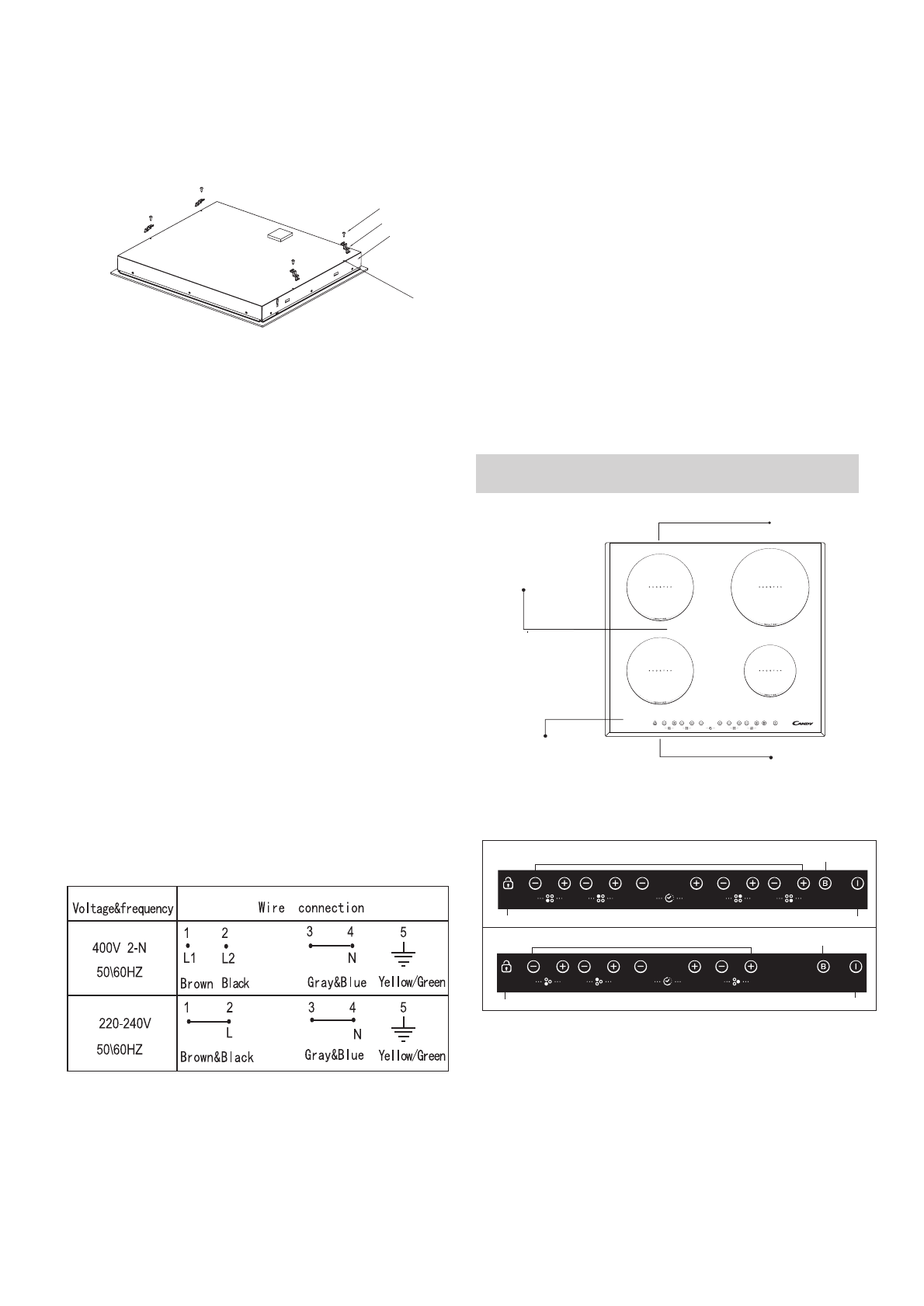

Schematic diagram of the control panel

4.Childproof lock key

3.ON/OFF

1.Power/Timer regulating key
2.Boost

Figure (3)

3. Fix the hob to the worktop using the four
    brackets on the base of the hob. The position
    of the brackets can be adjusted according to
    the thickness of the top.

screw

bracket

base

screw hole

Diagram of induction hob:

If the cable is damaged or needs replacing, this
should be done by an after-sales technician
using the proper tools, so as to avoid any
accidents.
If the appliance is being connected directly to
the mains supply, an omnipolar circuit breaker
must be installed with a minimum gap of 3 mm
between the contacts.
The installer must ensure that the correct
electrical connection has been made and that
it complies with safety regulations.
The cable must not be bent or compressed.
The cable must be checked regularly and only
replaced by a properly qualified person.

(1)

(2)

(3)

(4)

(5)

4

Control panel

Air vent

Ceramic plate

Air entry

CIE 644 B3

CIE 633 B3

1

1

2

4

4

2

3

3
