Connecting your equipment

03

28

En

Connecting to the front panel
video terminal

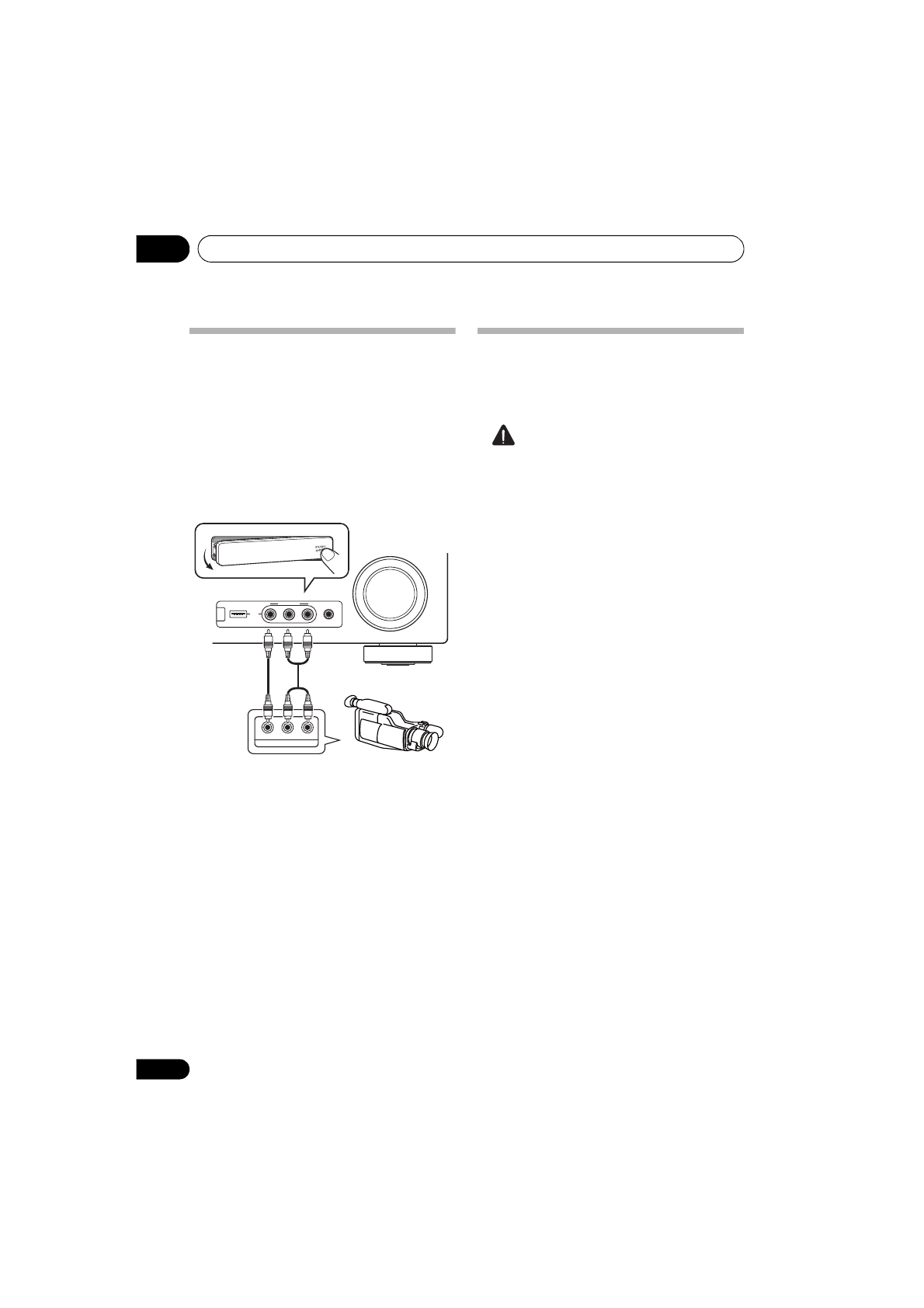

Front video connections are accessed via the

front panel using the

INPUT SELECTOR

 or

VIDEO

 button on the remote control. There are

standard audio/video jacks. Hook them up the
same way you made the rear panel

connections.

• Push  down  on  the

PUSH OPEN

 tab to

access the front video connections.

Plugging in the receiver

Only plug in after you have connected all your

components to this receiver, including the
speakers.

 CAUTION

• Handle the power cord by the plug part. Do

not pull out the plug by tugging the cord,
and never touch the power cord when your
hands are wet, as this could cause a short

circuit or electric shock. Do not place the
unit, a piece of furniture, or other object on
the power cord or pinch the cord in any
other way. Never make a knot in the cord or

tie it with other cables. The power cords

should be routed so that they are not likely

to be stepped on. A damaged power cord

can cause a fire or give you an electric
shock. Check the power cord once in a
while. If you find it damaged, ask your

nearest Pioneer authorized independent
service company for a replacement.

• Do not use any power cord other than the

one supplied with this unit.

• Do not use the supplied power cord for any

purpose other than that described below.

• The receiver should be disconnected by

removing the mains plug from the wall

socket when not in regular use, e.g., when

on vacation.

1

Plug the supplied power cord into the AC

IN socket on the back of the receiver.

2

Plug the other end into a power outlet.

MASTER
VOLUME

MCACC

SETUP MIC

VIDEO INPUT

AUDIO

L

R

VIDEO

iPod

iPhone

USB

CONTROL

ON / OFF

L

VIDEO

R

AUDIO/VIDEO OUTPUT

This receiver

Video camera

(etc.)
