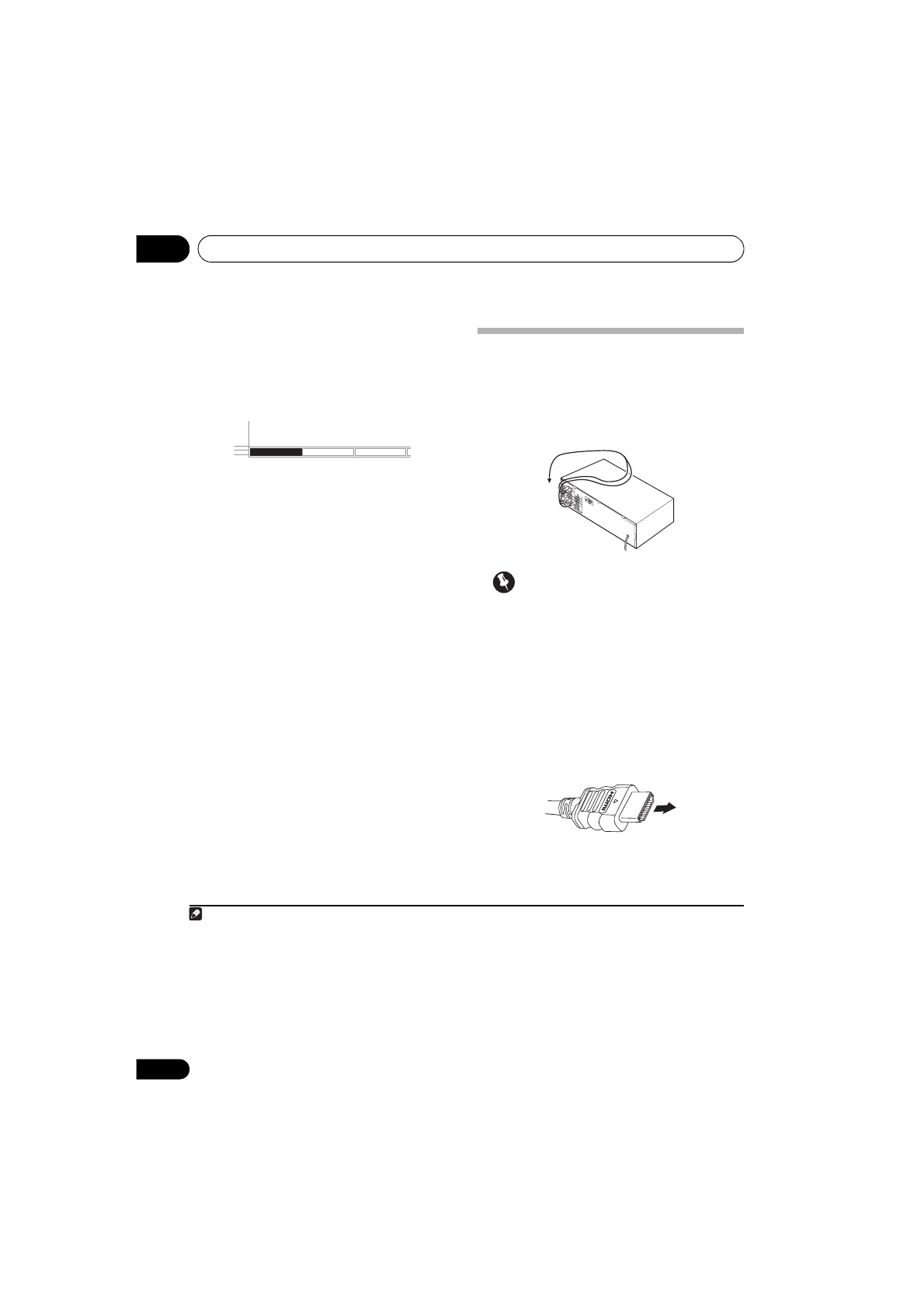

Connecting your equipment
03
20
En
Switching the speaker system
Three speaker system settings are possible
using the
SPEAKERS
button.
•
Use the SPEAKERS button on the front
panel to select a speaker system setting.
1
Press repeatedly to choose a speaker system
option:
•
SP
A
– Sound is output from the speakers
connected to the A speaker terminals and
PRE OUT SURR BACK/FRONT HEIGHT
(multichannel playback is possible).
•
SP
B
– Sound is output from the two
speakers connected to speaker system B
(only stereo playback is possible).
•
SP
AB
– Sound is output from speaker
system A, the two speakers in speaker
system B, and the subwoofer.
Multichannel sources are downmixed only
when the
STEREO
or
ALC
mode is selected
for stereo output from speaker systems A
and B.
2
•
SP
– No sound is output from the
speakers.
Making cable connections
Make sure not to bend the cables over the top
of this unit (as shown in the illustration). If this
happens, the magnetic field produced by the
transformers in this unit may cause a
humming noise from the speakers.
Important
• Before making or changing connections,
switch off the power and disconnect the
power cord from the AC outlet.
• Before unplugging the power cord, switch
the power into standby.
HDMI cables
Both video and sound signals can be transmitted
simultaneously with one cable. If connecting the
player and the TV via this receiver, for both
connections, use HDMI cables.
3
Be careful to connect the terminal in the
proper direction.
Note
1 The subwoofer output depends on the settings you made in
Speaker Setting
on page 43. However, if
SP
B
is selected above,
no sound is heard from the subwoofer (the LFE channel is not downmixed).
2 You can use speakers with a normal impedance between 6
Ω
and 16
Ω
. However, be aware that only the front speakers are set
to a value between 12
Ω
and 16
Ω
when you select
SP
AB
.
SPEAKERS
DIMMER
DISPLAY
3 • Set the HDMI parameter in
Setting the Audio options
on page 38 to
THRU
(THROUGH) and set the input signal in
Choosing
the input signal
on page 41 to
HDMI
, if you want to hear HDMI audio output from your TV (no sound will be heard from this
receiver).
• If the video signal does not appear on your TV, try adjusting the resolution settings on your component or display. Note that
some components (such as video game units) have resolutions that may not be displayed. In this case, use a (analog)
composite connection.
• When the video signal from the HDMI is 480i, 480p, 576i or 576p, Multi Ch PCM sound and HD sound cannot be received.
HDMI cable
