Connecting your equipment

03

19

En

English

Français

Español

 CAUTION

• These speaker terminals carry

HAZARDOUS LIVE voltage

. To prevent

the risk of electric shock when connecting

or disconnecting the speaker cables,

disconnect the power cord before touching

any uninsulated parts.

• Make sure that all the bare speaker wire is

twisted together and inserted fully into the

speaker terminal. If any of the bare speaker

wire touches the back panel it may cause

the power to cut off as a safety measure.

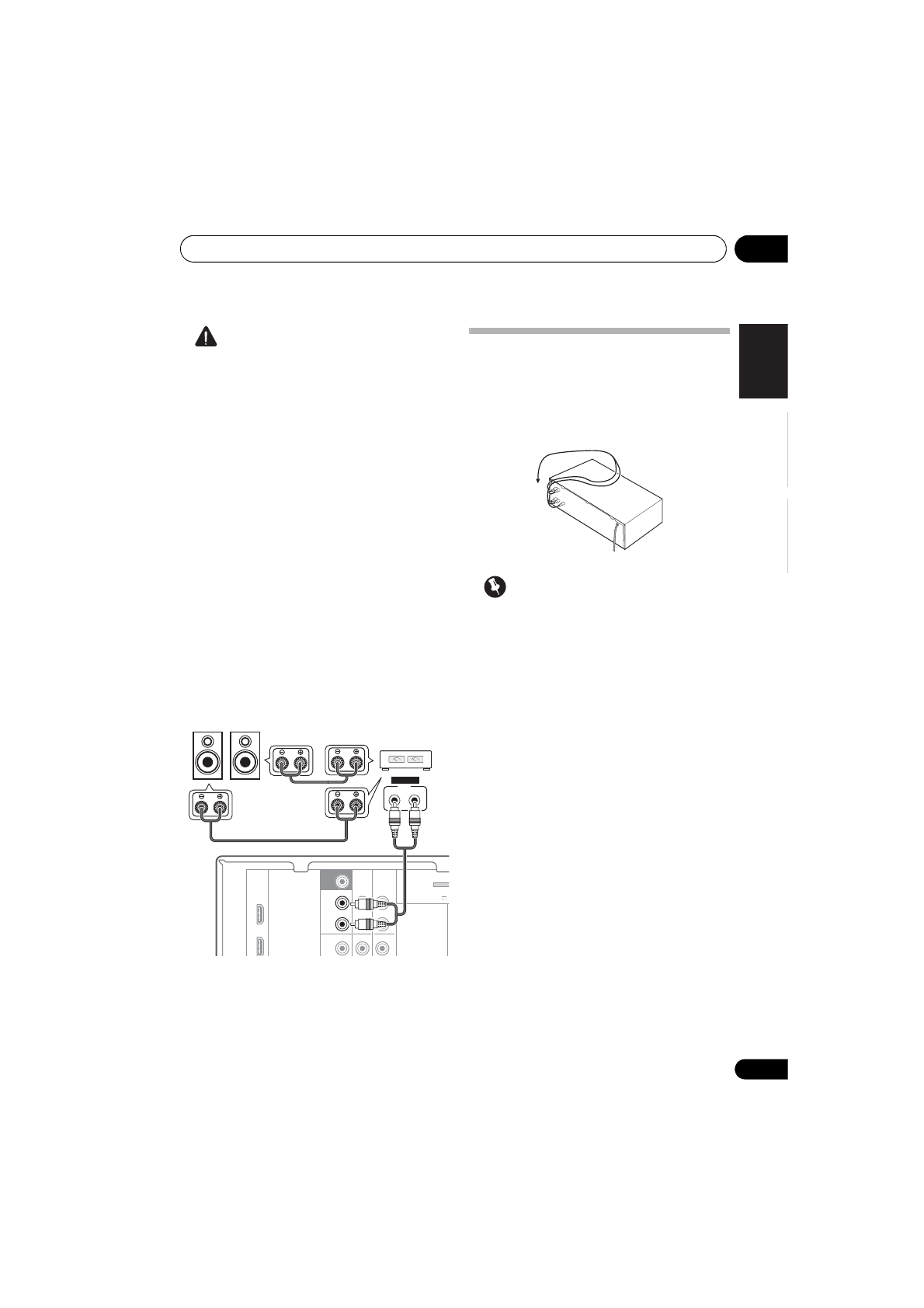

Connect the surround back or front
height speakers

Connect the

PRE OUT

 outputs of the unit and

additional amplifier to add a surround back or

front height speaker.

• If the surround back speaker or the front

height speaker is connected, set the Pre

Out setting (see

The Pre Out Setting

 on

page 42).

• You can use the additional amplifier on the

surround back channel pre-outs for a

single speaker as well. In this case plug the

amplifier into the left (

L (Single)

) terminal

only.

Making cable connections

Make sure not to bend the cables over the top

of this unit (as shown in the illustration). If this
happens, the magnetic field produced by the
transformers in this unit may cause a
humming noise from the speakers.

 Important

• Before making or changing connections,

switch off the power and disconnect the
power cord from the AC outlet.

• Before unplugging the power cord, switch

the power into standby.

BD

SURR BACK /

FRONT

HEIGHT

  L

(Single)

  R

  L

  OUT

  CD

  DVR/VCR

  CD-R/TAPE

  DVR/VCR

  CD-R/TAPE

  PRE OUT

DVD

ADAPTER

SUBWOOFER

PRE OUT

(OUTPUT 5 V        1

INPUT

L

R

ANALOG

SBL/FHL SBR/FHR

Surround back or

front height speakers

Surround back or

front height

channel amplifier
