 English |

25

Bosch Power Tools

F 016 L70 778 | (27.10.10)

Cutting Around Trees and Bushes
(see figure L)

f

Carefully cut around trees and bushes so
that they do not come into contact with the
blade.

Plants can die if you damage the bark.

For better control, use the plant protector

19

(accessory) as a guide. (see figure K)

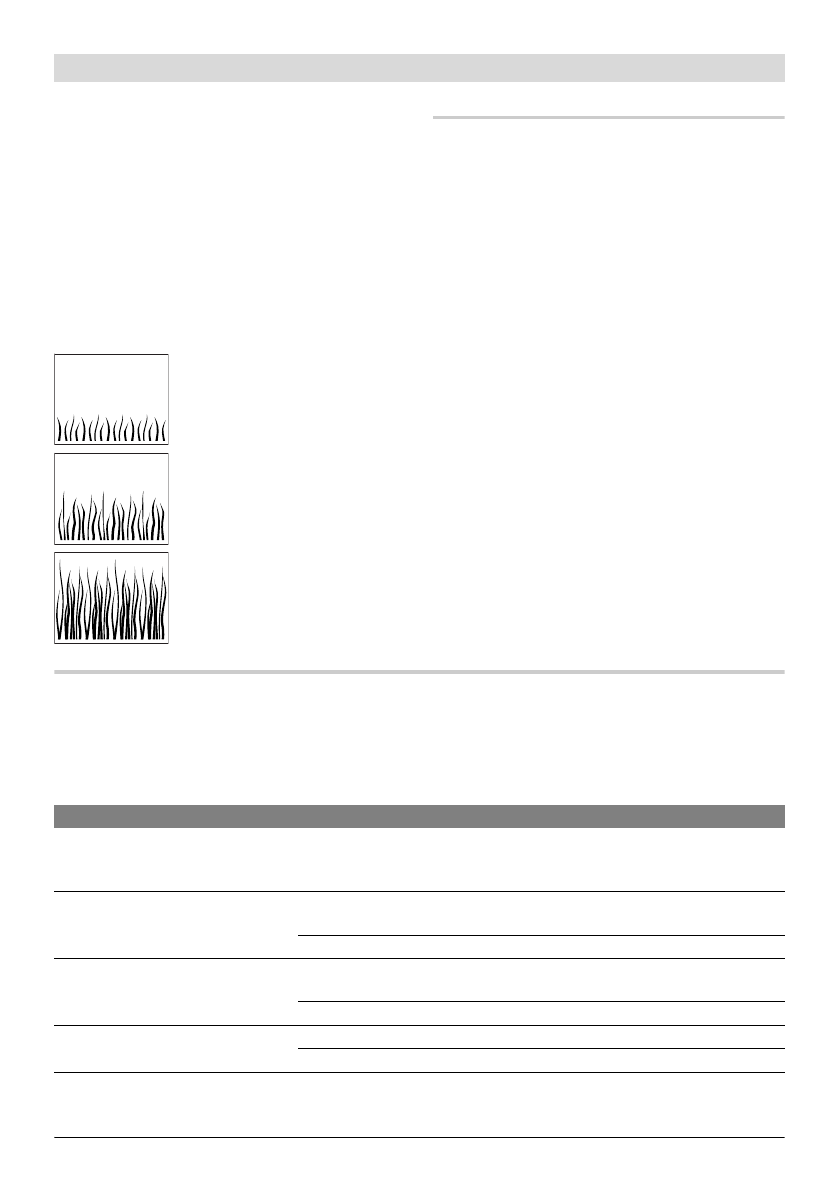

Battery Duration

The battery duration is dependent on the work-
ing conditions:

Light conditions:

up to 800 metres (ART 23 LI)
up to 1000 metres (ART 26 LI)

Medium conditions:

up to 350 metres (ART 23 LI)
up to 440 metres (ART 26 LI)

Tough conditions:

up to 60 metres (ART 23 LI)
up to 75 metres (ART 26 LI)

Changing the Blade (see figure D)

f

Warning: Before any work on the machine
itself, remove the battery from the ma-
chine.

To remove the worn blade

10

, push it inward un-

til it snaps off of the pin

18

.

Clean the pin

18

 of any residual plastic/debris

with a sharp knife.
To mount a new blade

10

, place the blade

10

 on-

to the pin

18

, push it down and pull it outward

until it engages.

Note:

 Only use Bosch replacement blades. They

have been developed specially for improved cut-
ting and feed performance. The use of other
blades will lead to a deterioration in perform-
ance.

Troubleshooting

The following chart lists problem symptoms, possible causes and corrective action, if your garden
product does not operate properly. If these do not identify and correct the problem, contact your
service agent.

f

Warning: Switch off and remove the battery prior to any troubleshooting.

Problem

Possible Cause

Corrective Action

Blade guard can not be mount-
ed over cutting disc

Incorrect assembly

Remove cutting disc and mount
blade guard again; also see "As-
sembly"

Trimmer fails to operate

Battery discharged

Recharge battery; also see “Bat-
tery Charging”

Battery too hot/cold

Allow to cool/warm

Trimmer runs intermittently

Internal wiring of garden prod-
uct damaged

Contact Service Agent

On/Off switch defective

Contact Service Agent

Excessive vibrations/noise

Garden product defective

Contact Service Agent

Blade broken

Replace the blade
