4.

Putting the blood-pressure monitor into operation

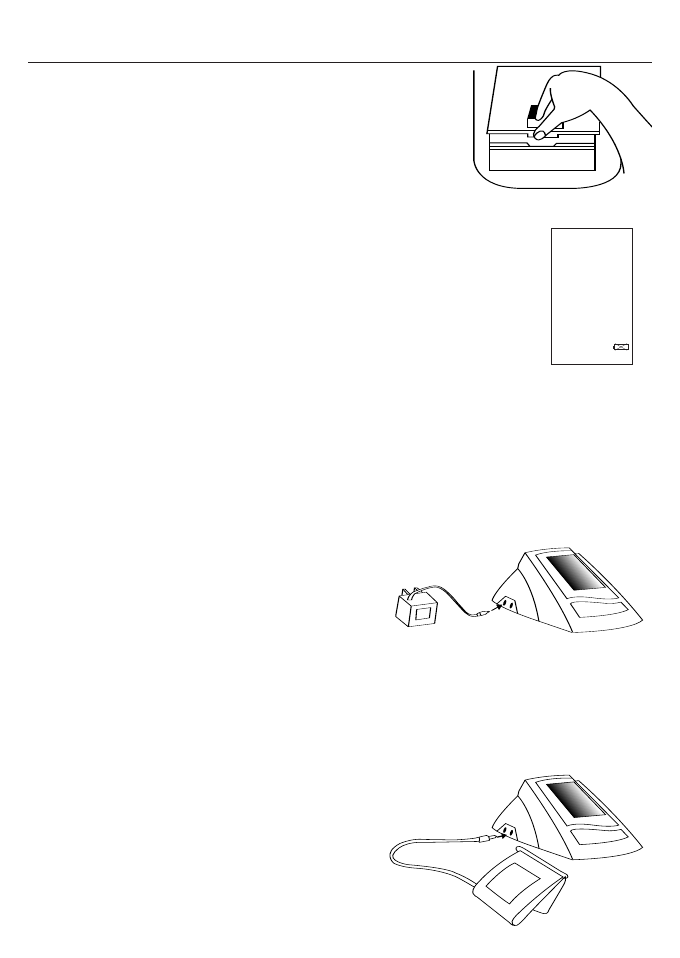

4.1. Inserting the batteries

After you have unpacked your device, first insert the batteries. The
battery compartment is located on the back side of the device (see
illustration).
a) Remove cover as illustrated
b) Insert the batteries (4 x size  AA 1,5 V), thereby observing the

indicated polarity.

c) If the battery warning appears in the display, the batteries are

empty and must be replaced by new ones.

Attention!

• After the battery warning appears, the device is blocked until

the batteries have been replaced.

• Please use «AA» Long-Life or Alkaline 1.5V Batteries. The use

of 1.2V Accumulators is not recommended.

• If the blood-pressure monitor is left unused for long periods,

please remove the batteries from  the device.

Functional check:

Hold on the O/I button down to test all the display elements. When functioning correctly

all segments must appear.

4.2. Using a mains adapter (special accessory)

It is possible to operate this blood-pressure instrument Through a mains adaptor (output 6 V DC / 600 mA
with DIN plug). Make certain that you use a mains adaptor which fulfils the legal requirements (CE sign on
the type plate).

a)

Plug the DIN plug into the socket at the left side of the
instrument.

b)

Plug the mains adaptor into a 230/110 V power socket.

c)

Test that power is available by pressing the O/I button.

Note:

•

No power is taken from the batteries while the mains adaptor is connected to the instrument.

•

If the mains voltage is interrupted during the measurement (e.g. by removal of the mains adaptor from
the mains socket), the instrument must be reset  by removing the DIN plug from its socket.

•

Please consult a specialist dealer if you have questions relating to the mains adaptor.

4.3. Tube connection

Insert the cuff tube into the opening provided on the left
side of the instrument, as shown in the diagram.

5
