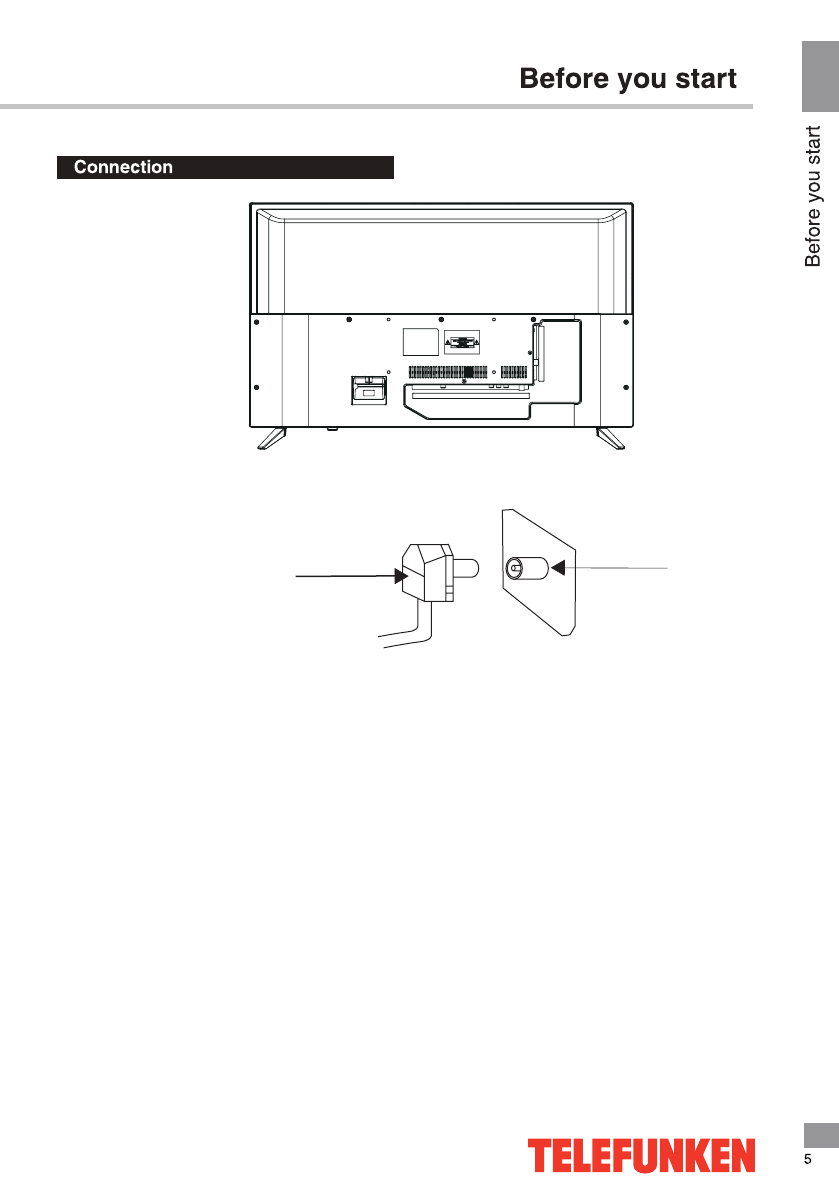

75 Ohm co-axis cable

TVRF antenna jack

Antenna cable connector

Outdoor Antenna Connection

Use 75

Ω

 coaxial cable plug or 300-75

Ω

impedance converter to plug in antenna input
terminal on the rear of the cabinet.

Other connections

• Connect the audio sources (Including

DVD, VCDR, CAMCORDER and PC) to the
proper Audio input jacks ‘L’ and ‘R’.

• Connect the video source to the

Composite video jack by RCA cable

.

• Plug the power cable in the electric outlet,

making sure the current voltage is supported.

• If the video source has a HDMI output jack,

you can connect the signal to the TV using
an HDMI cable.

• Coaxial output is intended for transmitting

multi-channel sound to an external decoder
(e.g. in 5.1-CH format). Coaxial cable should
be used for connection.

• PCMCIA slot is used for CI modules that

are obtained from your digital TV provider.

• Connect your headphones or earphones

(not included) to the headphone socket of
this unit. When earphones are connected, the
sound output through the built-in speakers of
this unit is mute.

• LAN port allows your TV to connect

to the Internet using an Ethernet network
cable (not included).
