Installation

5

5

Installation

Connection

Outdoor Antenna Connection

Use 75

Ω

 coaxial cable plug or 300-75

Ω

impedance converter to plug in antenna
input terminal on the rear of the unit casing.

Other connections

•

Connect audio and video sources

(Including DVD, VCDR,
CAMCORDER, etc.) to the AV input
using

 a mini RCA

 cable (not included).

•

Plug the power cable in the electric outlet,

making sure the current voltage is supported.

•

PCMCIA slot is used for CI modules that

are obtained from your digital TV provider.

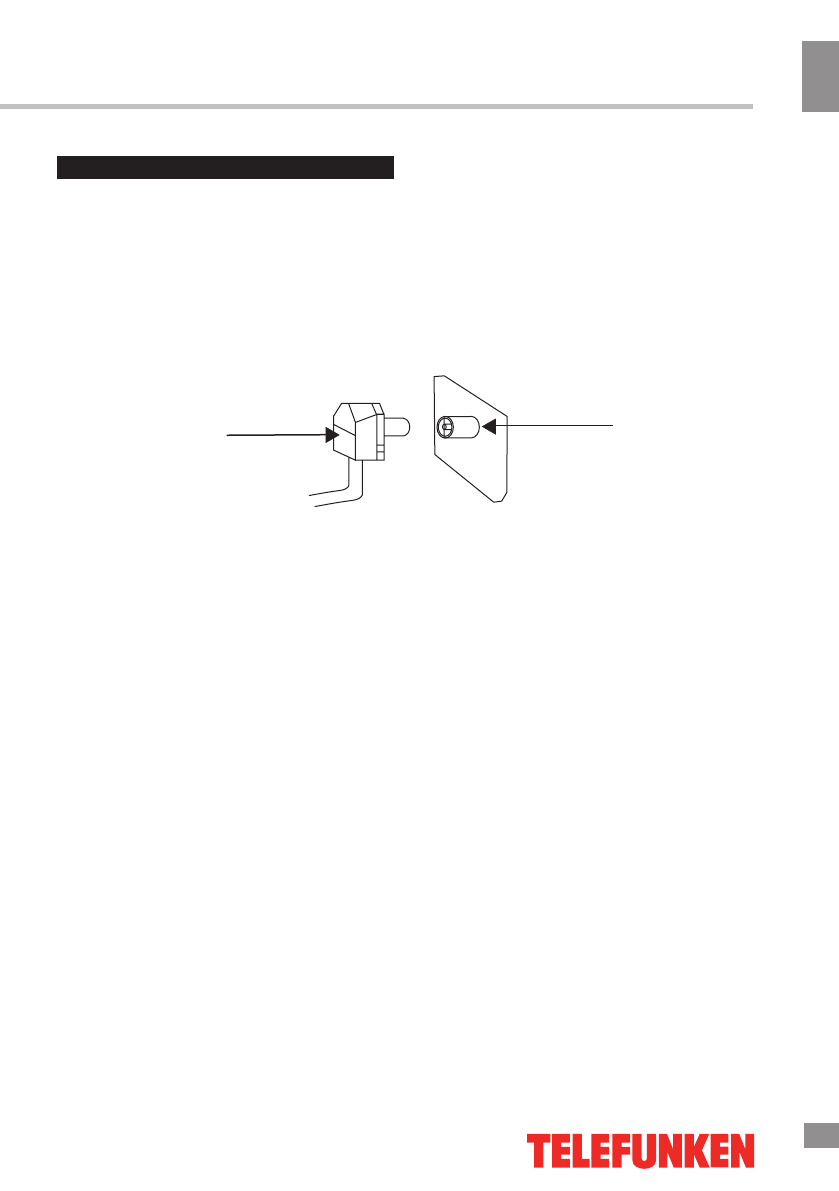

75 Ohm co-axis cable

TVRF antenna jack

Antenna cable connector

• Coaxial output is intended for transmitting

multi-channel sound to an external decoder
(e.g. in 5.1-CH format). Coaxial cable should
be used for connection.

• LNB input is used for connecting a

satellite antenna converter cable (not
included).

• If the video source has a HDMI output jack,

you can connect the signal to the TV using
an HDMI cable (not included).

.
