Installation

5

5

Installation

Connection

Outdoor Antenna Connection

Use 75Ω coaxial cable plug or 300-75Ω

impedance converter to plug in antenna input

terminal on the rear of the unit casing.

Other connections

• Connect audio and video sources

(Including DVD, VCDR, CAMCORDER,

etc.) to the AV input using

..

 AV cable

(not included)

.

• Plug the power cable in the electric outlet,

making sure the current voltage is supported.

• If the video source has a HDMI output

jack, you can connect the signal to the TV by

the HDMI cable (not included). Use the HDMI-

1(MHL) input to connect your smartphone via a

special cable to see the digital content on the

TV screen. Support of all devices with the MHL

function is not guaranteed.

• Connect your headphones or earphones

(not included) to the headphone socket of this

unit. When earphones are connected, the

sound output through the built-in speakers of

this unit is mute.

• PCMCIA slot is used for CI modules that

are obtained from your digital TV provider.

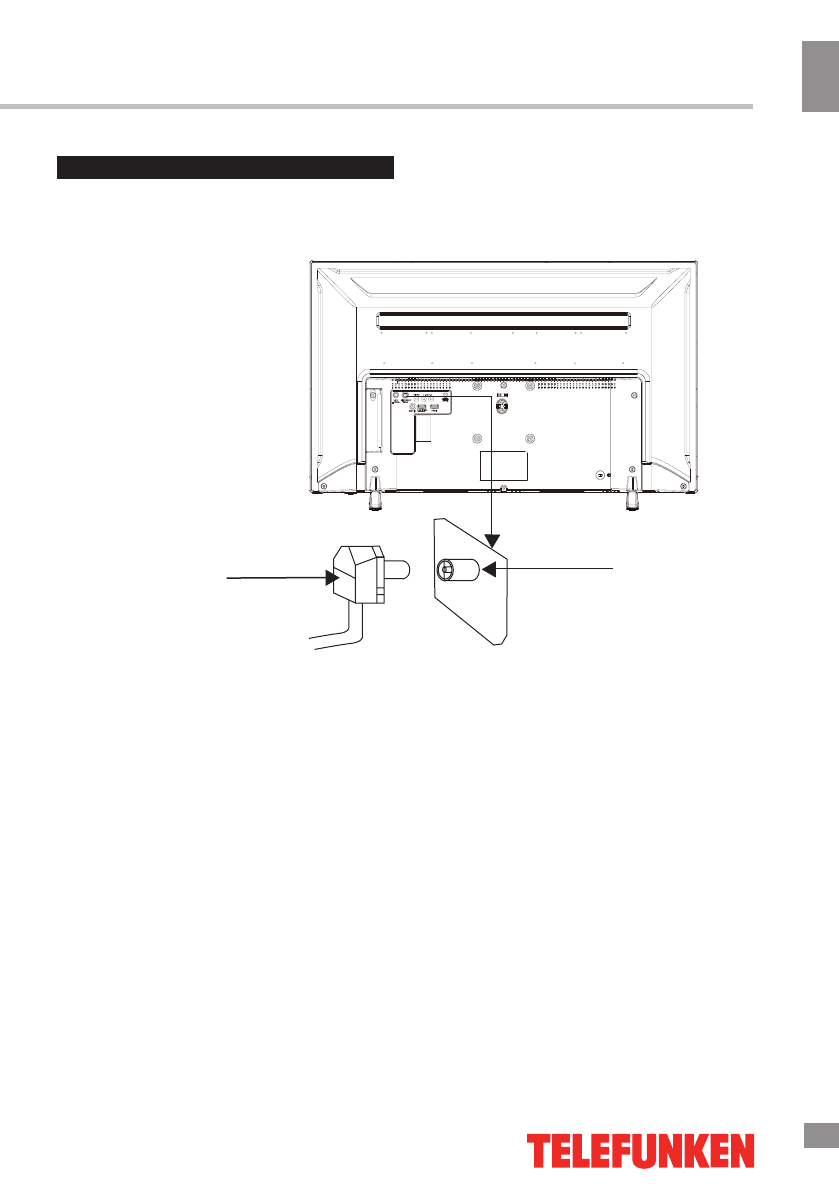

75 Ohm co-axis cable

TVRF antenna jack

Antenna cable connector

•

The service port is used for updating the TV

software by qualified technicians only.
