Before you start

5

5

Before you start

Connection

Outdoor antenna connection

Use 75

˜

 cable plug or 300-75

˜

 impedance

converter to plug in antenna input terminal on
the rear of the cabinet.

Other connections

• Connect the audio sources (Including

DVD, VCDR, CAMCORDER and PC) to
the

Mini AV in (Mini YPbPr)

• Connect the video source to the AV

IN jack by RCA cable

.

• Component input is intended to receive

component video signal from the external
device. Connection is made with the help of a
special component cable. To receive audio

signal

 for component video, please use the

audio input of this unit.

• Plug the power cable in the electric outlet,

making sure the current voltage is supported.

• When using the LED as a computer

screen, connect the PC to the VGA jack from
the monitor by the relevant cable (not included).

• If the video source has a HDMI output

jack, you can connect the signal to the
monitor by the HDMI cable (not included).

• Coaxial SPDIF output is intended for

transmitting multi-channel sound to an external
decoder (e.g. in 5.1-CH format). Coaxial cable
should be used for connection.

• PCMCIA slot is used for CI modules that

are obtained from your digital TV provider.

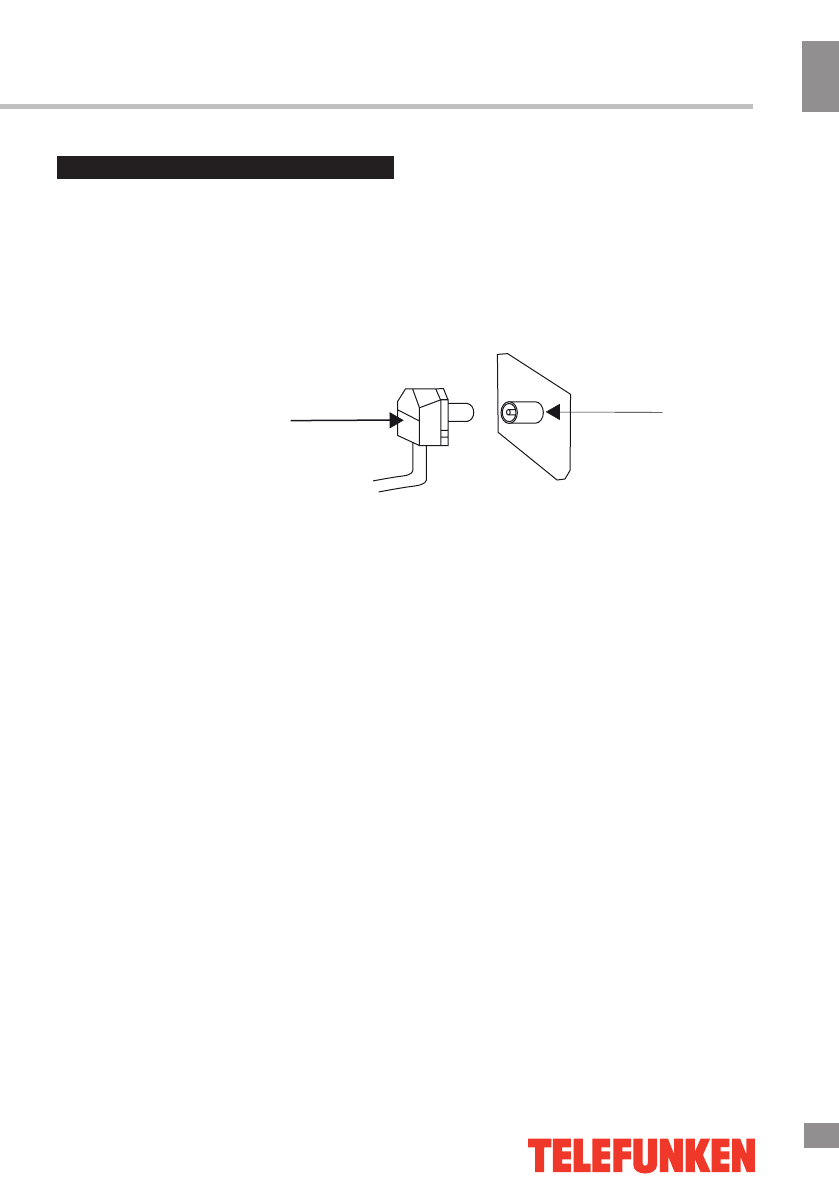

75 Ohm co-axis cable

TVRF antenna jack

Antenna cable connector

•

SCART socket is used to connect external

devices with a SCART connection.
