Connection

5

5

Connection

Connection

Outdoor antenna connection

Use 75

Ω

 cable plug or 300-75

Ω

 impedance

converter to plug in antenna input terminal on
the rear of the cabinet.

Other connections

• Connect the audio sources (Including

DVD, VCDR, CAMCORDER and PC) to
the

Mini AV in (Mini YPbPr/VGA Audio in)

• Connect the video source to the AV

IN jack by RCA cable

.

• Component input is intended to receive

component video signal from the external
device. Connection is made with the help of a
special component cable. To receive audio

signal

 for component video, please use the

audio input of this unit.

• Plug the power cable in the electric outlet,

making sure the current voltage is supported.

• When using the LED as a computer

screen, connect the PC to the VGA jack from
the monitor by the relevant cable (not included).

• If the video source has a HDMI output

jack, you can connect the signal to the
monitor by the HDMI cable (not included).

• Coaxial SPDIF output is intended for

transmitting multi-channel sound to an external
decoder (e.g. in 5.1-CH format). Coaxial cable
should be used for connection.

• PCMCIA slot is used for CI modules that

are obtained from your digital TV provider.

   Please note that AV and component

input (YPbPr) share the same

 audio

 socket so

make sure that if the one or the other input is
used, you choose the corresponding source
signal (press the SOURCE button).

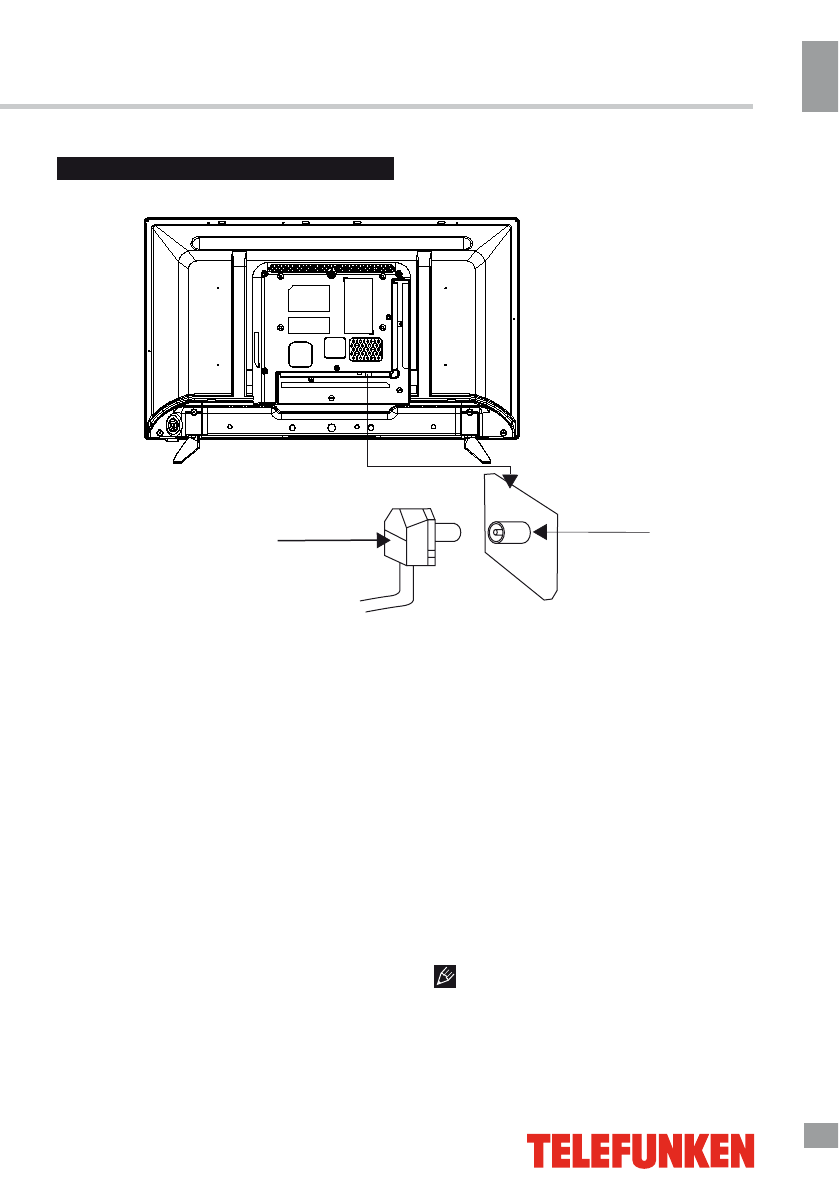

75 Ohm co-axis cable

TVRF antenna jack

Antenna cable connector

•

SCART socket is used to connect external

devices with a SCART connection.
