Before you start

Connection

Outdoor antenna connection

Use 75

Ω

 cable plug or 300-75

Ω

 impedance

converter to plug in antenna input terminal on
the rear of the cabinet.

Other connections

•  Connect the audio sources (Including

DVD, VCDR, CAMCORDER and PC) to the
‘Audio in’ socket.

•  Connect the video source to the AV

IN jack by RCA cable (it is shared with the
component jack).

•  Component input YPbPr/YCbCr is intend-

ed to receive component video signal from the
external device. Connection is made with the
help of a special component cable. To receive
audio signal for component video, please use
the audio input of this unit.

•  Plug the power cable in the electric outlet,

making sure the current voltage is supported.

•  When using the LED as a computer

screen, connect the PC to the VGA jack from
the monitor by the relevant cable (not included).

•  If the video source has a HDMI output

jack, you can connect the signal to the
monitor by the HDMI cable (not included).
Use the HDMI-2(MHL) input to connect your
smartphone via a special cable (not included)
to see the digital content on the TV screen.

•  Coaxial SPDIF output is intended for

transmitting multi-channel sound to an external
decoder (e.g. in 5.1-CH format). Coaxial cable
should be used for connection.

•  PCMCIA slot is used for CI modules that

are obtained from your digital TV provider.

   Please note that AV and component

input (YPbPr) share the same socket so make
sure that if the one or the other input is used,
you choose the corresponding source signal
(press the SOURCE button).

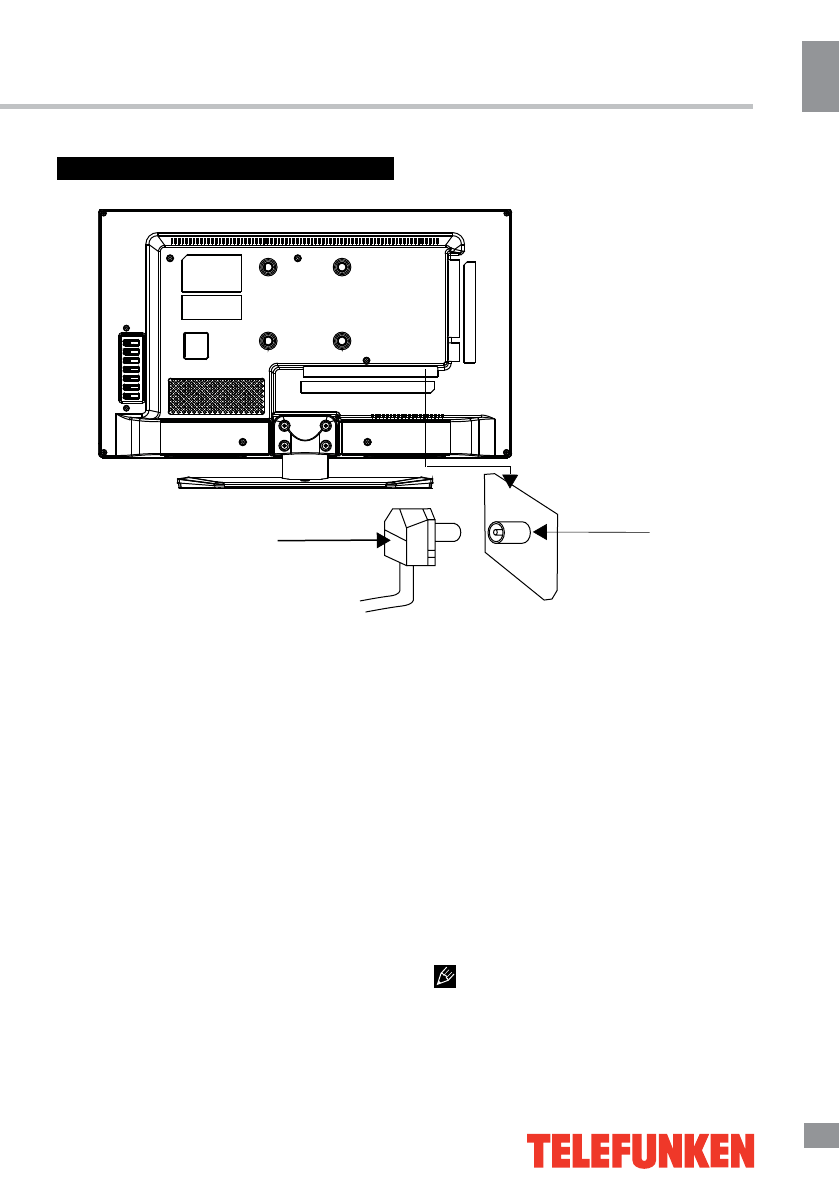

75 Ohm co-axis cable

TVRF antenna jack

Antenna cable connector
