Installation

5

5

Installation

Connection

Outdoor Antenna Connection

Use 75

Ω

 coaxial cable plug or 300-75

Ω

impedance converter to plug in antenna input
terminal on the rear of the unit casing.

Other connections

• Connect audio and video sources

(Including DVD, VCDR, CAMCORDER and
PC) to the AV input using the included AV
cable.

• Plug the power cable in the electric outlet,

making sure the current voltage is supported.

• If the video source has a HDMI output

jack, you can connect the signal to the TV by
the HDMI cable (not included).

• Connect your headphones or earphones

(not included) to the headphone socket of
this unit. When earphones are connected, the
sound output through the built-in speakers of
this unit is mute.

• PCMCIA slot is used for CI modules that

are obtained from your digital TV provider.

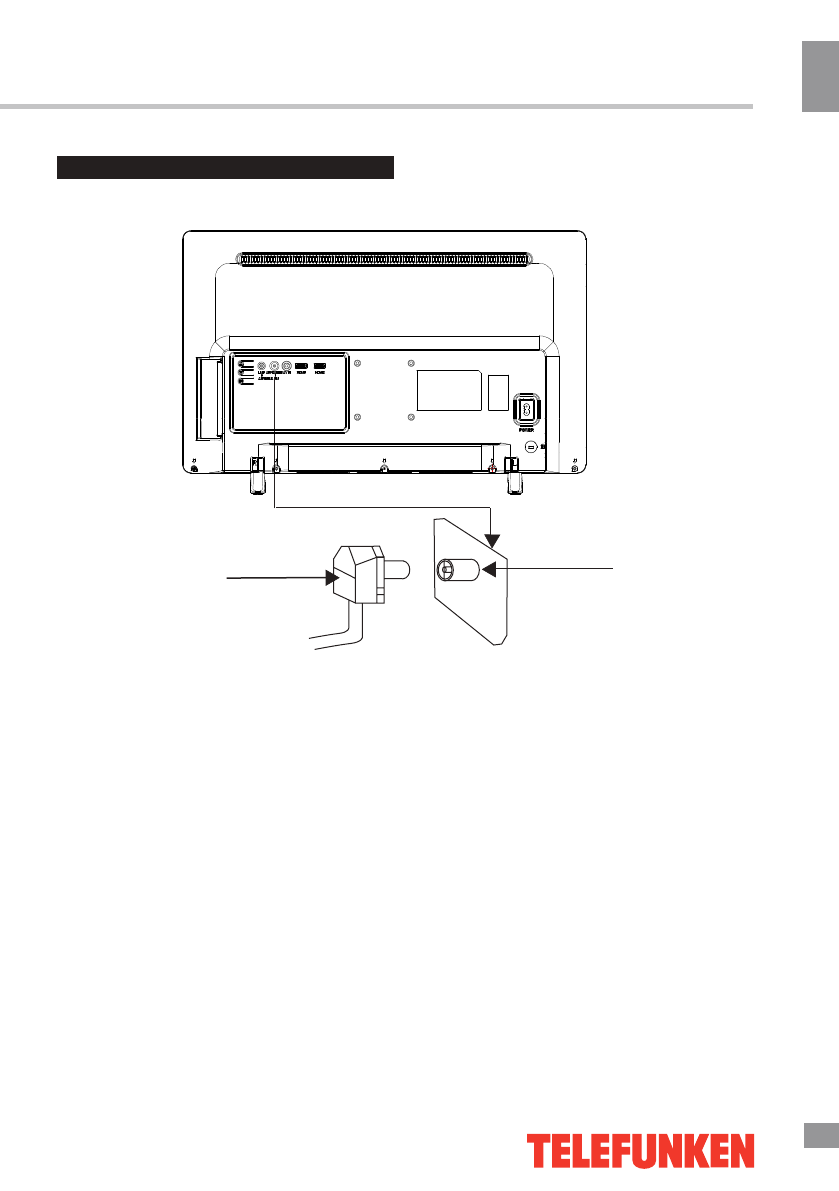

75 Ohm co-axis cable

TVRF antenna jack

Antenna cable connector

•

The service port is used for updating the TV

software by qualified technicians only.
