Installation

5

5

Installation

Connection

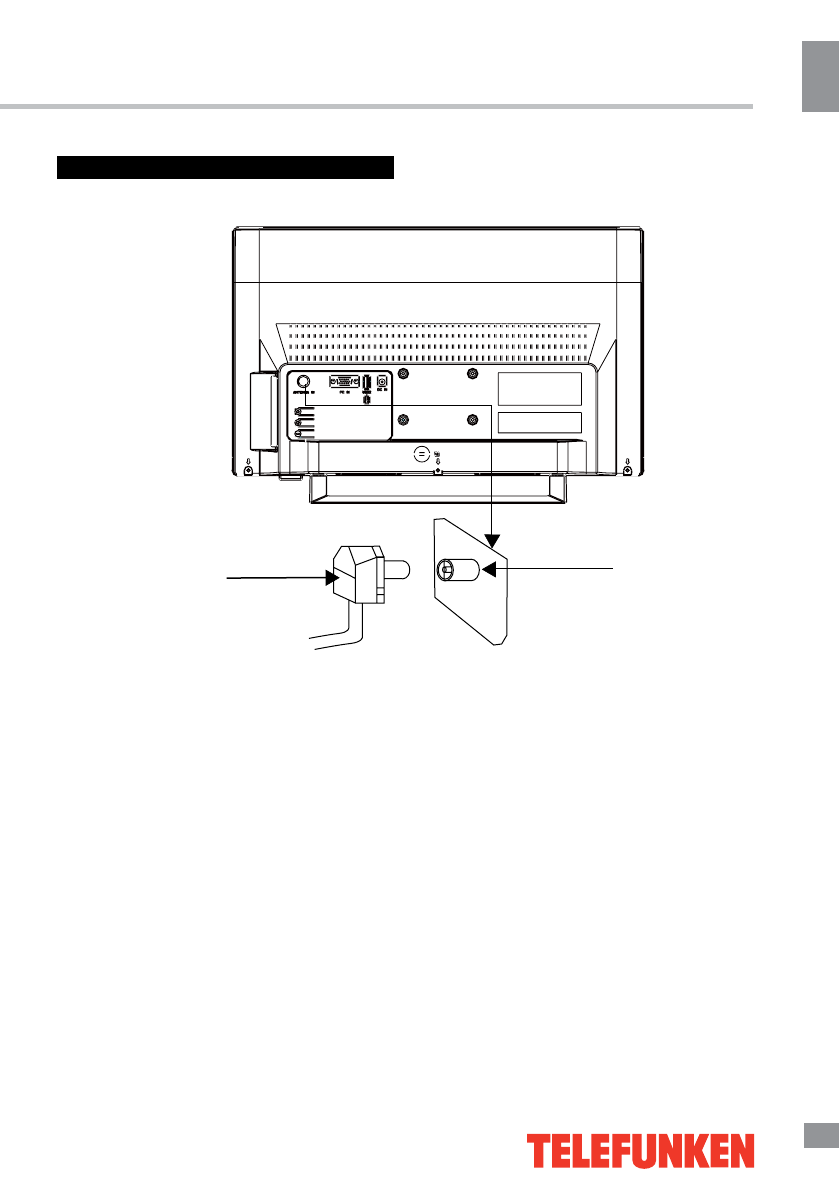

Outdoor Antenna Connection

Use 75

Ω

 coaxial cable plug or 300-75

Ω

impedance converter to plug in antenna input
terminal on the rear of the unit casing.

Other connections

•  Connect audio and video sources

(Including DVD, VCDR, CAMCORDER and
PC) to the AV input using the included AV
cable.

•  Connect the power cord to the DC

adapter, then connect the adapter to the DC
power jack of this unit.

•  When using the LED as a computer

screen, connect the PC to the VGA jack from
the monitor using the VGA cable (not included).

•  If the video source has a HDMI output

jack, you can connect the signal to the monitor
by the HDMI cable (not included). The HDMI
has the MHL function enabling you to connect

your smartphone via a special cable to see the
digital content on the TV screen. Support of all
the mobile devices with the MHL function is not
guaranteed.

•  Connect your headphones or earphones

(not included) to the headphone socket of
this unit. When earphones are connected, the
sound output through the built-in speakers of
this unit is mute. You can also use this output
to connect other external analogue audio
equipment, such as amplifiers (select Line
output from the menu).

75 Ohm co-axis cable

TVRF antenna jack

Antenna cable connector
