TV Installation

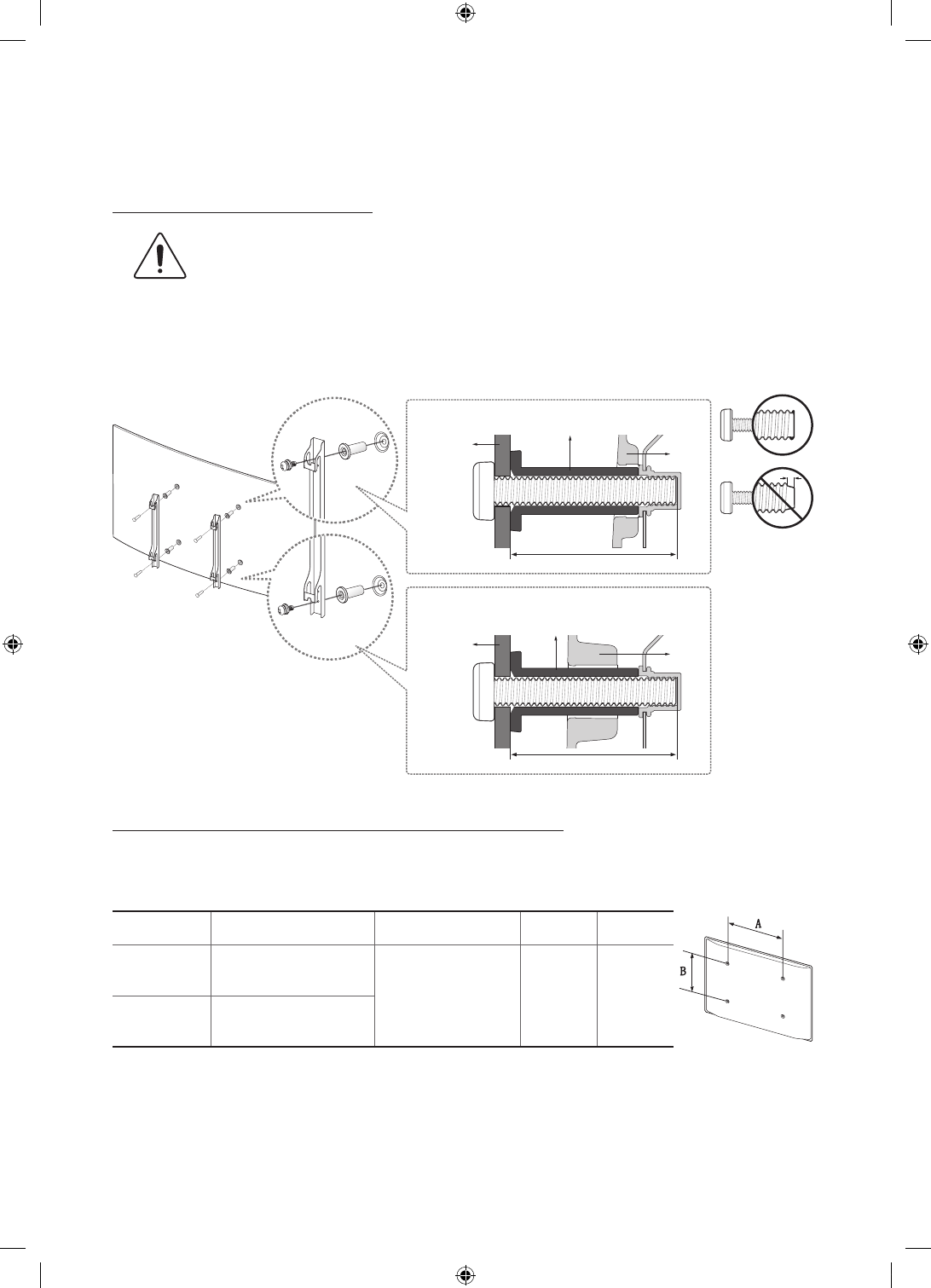

Mounting the TV on a wall

If you mount this product on a wall, follow the instructions exactly as recommended by the manufacturer.
Unless it is correctly mounted, the product may slide or fall, thus causing serious injury to a child or adult
and serious damage to the product.

For models providing wall mount adapters, install them as shown in the figures below before installing the wall mount kit.

-

Refer to the installation manual included with the Samsung wall mount kit.

Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you choose to install
the wall mount on your own.

TV

TV

Wall mount

Bracket

Wall mount

Bracket

C

C

Wall mount Adapter

Wall mount Adapter

VESA wall mount kit notes and specifications

You can install your wall mount on a solid wall perpendicular to the floor. Before attaching the wall mount to surfaces other
than plaster board, contact your nearest dealer for additional information. If you install the TV on a ceiling or slanted wall, it
may fall and result in severe personal injury.

TV size in inches VESA screw hole specs(A * B) in

millimetres

C (

mm

)

Standard

Screw

Quantity

43

200 x 200

43 - 45

M8

4

49 ~ 65

400 x 400

English - 10
