TV Installation

Mounting the TV on a wall

If you mount this product on a wall, follow the instructions exactly as recommended by the manufacturer.
Unless it is correctly mounted, the product may slide or fall, thus causing serious injury to a child or adult
and serious damage to the product.

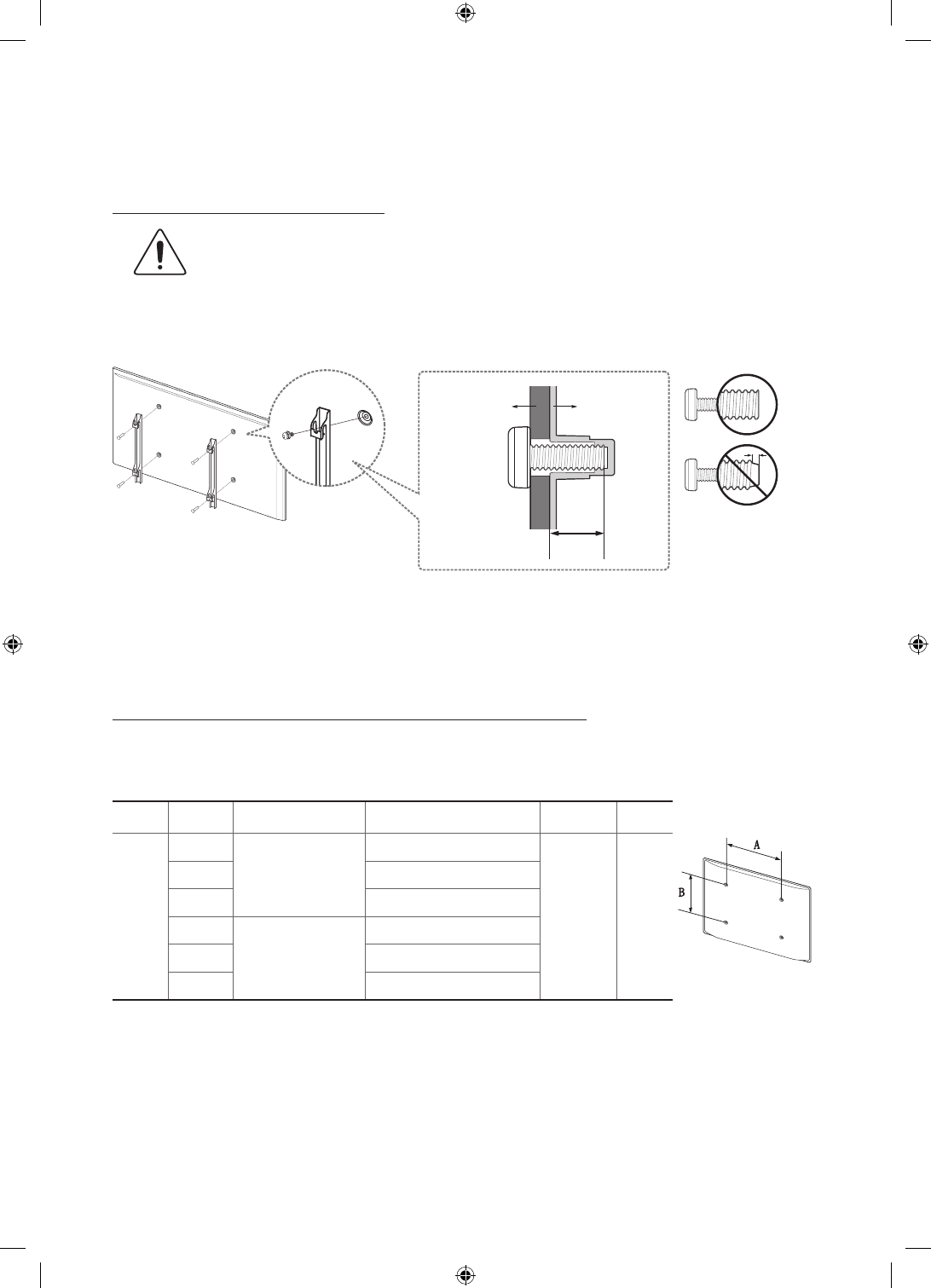

Installing the wall mount kit

You can mount the TV on the wall using a wall mount kit (sold separately).

TV

Wall mount
Bracket

C

For detailed information about installing the wall mount, see the instructions provided with the wall mount kit. We recommend
that you contact a technician for assistance when installing the wall mount bracket. We do not advise you to do it yourself.
Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you choose to install the
wall mount on your own.

VESA wall mount kit notes and specifications

You can install your wall mount on a solid wall perpendicular to the floor. Before attaching the wall mount to surfaces other than
plaster board, contact your nearest dealer for additional information. If you install the TV on a ceiling or slanted wall, it may fall
and result in severe personal injury.

Product

Family

TV size in

inches

VESA screw hole specs

(A * B) in millimetres

C (mm)

Standard

Screw

Quantity

LED-TV

32

200 X 200

19.8 ~ 20.8

M8

4

40

20 ~ 21

43

20.1 ~ 21.1

48

400 X 400

20.7 ~ 21.7

50

20.6 ~ 21.6

55

20.3 ~ 21.3

English - 10
