English - 12

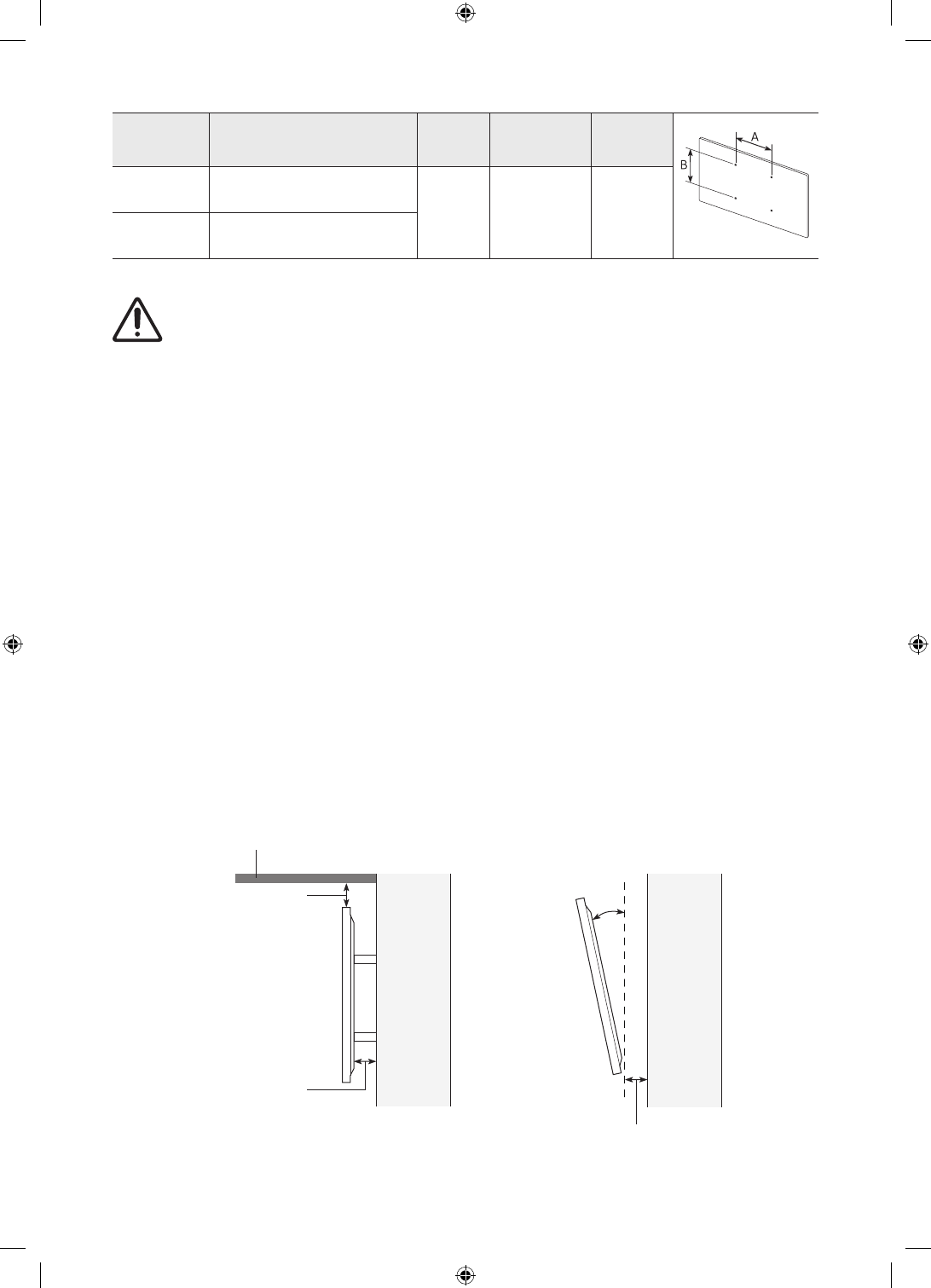

TV size in

inches

VESA screw hole specs (A * B)

in millimetres

C (mm

)

Standard

Screw

Quantity

55

200 x 200

11.8

M8

4

65-75

400 x 400

• Recommended torque : 10 - 12 kgf.cm

Do not install your wall mount kit while your TV is turned on. This may result in personal injury from
electric shock.

• Do not use screws that are longer than the standard dimension or do not comply with the VESA standard

screw specifications. Screws that are too long may cause damage to the inside of the TV set.

• For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws

may differ depending on the wall mount specifications.

• Do not fasten the screws too firmly. This may damage the product or cause the product to fall, leading to

personal injury. Samsung is not liable for these kinds of accidents.

• Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount

is used or when the consumer fails to follow the product installation instructions.

• Always have two people mount the TV onto a wall.

•

WARNING

: This apparatus must be securely attached to the wall.

"Tipping, shaking, or rocking the machine may cause injury/death". (CSA60065)

Providing proper ventilation for your TV

When you install your TV, maintain a distance of at least 38 mm between the TV and other objects (walls,
cabinet sides, etc.) to ensure proper ventilation. Failing to maintain proper ventilation may result in a fire or a
problem with the product caused by an increase in its internal temperature.

• When you install your TV with a wall mount, we strongly recommend you use parts provided by Samsung

Electronics only. Using parts provided by another manufacturer may cause difficulties with the product or
result in injury caused by the product falling.

• The Terrace can be installed in a tilted position on a wall or a cabinet side, up to 15°.

38 mm or more

15°

Wall or

cabinet side

38 mm or more

At least 200 mm

Sunlight barrier

Wall or

cabinet side
