Overview of Controls

Overview of Controls

x

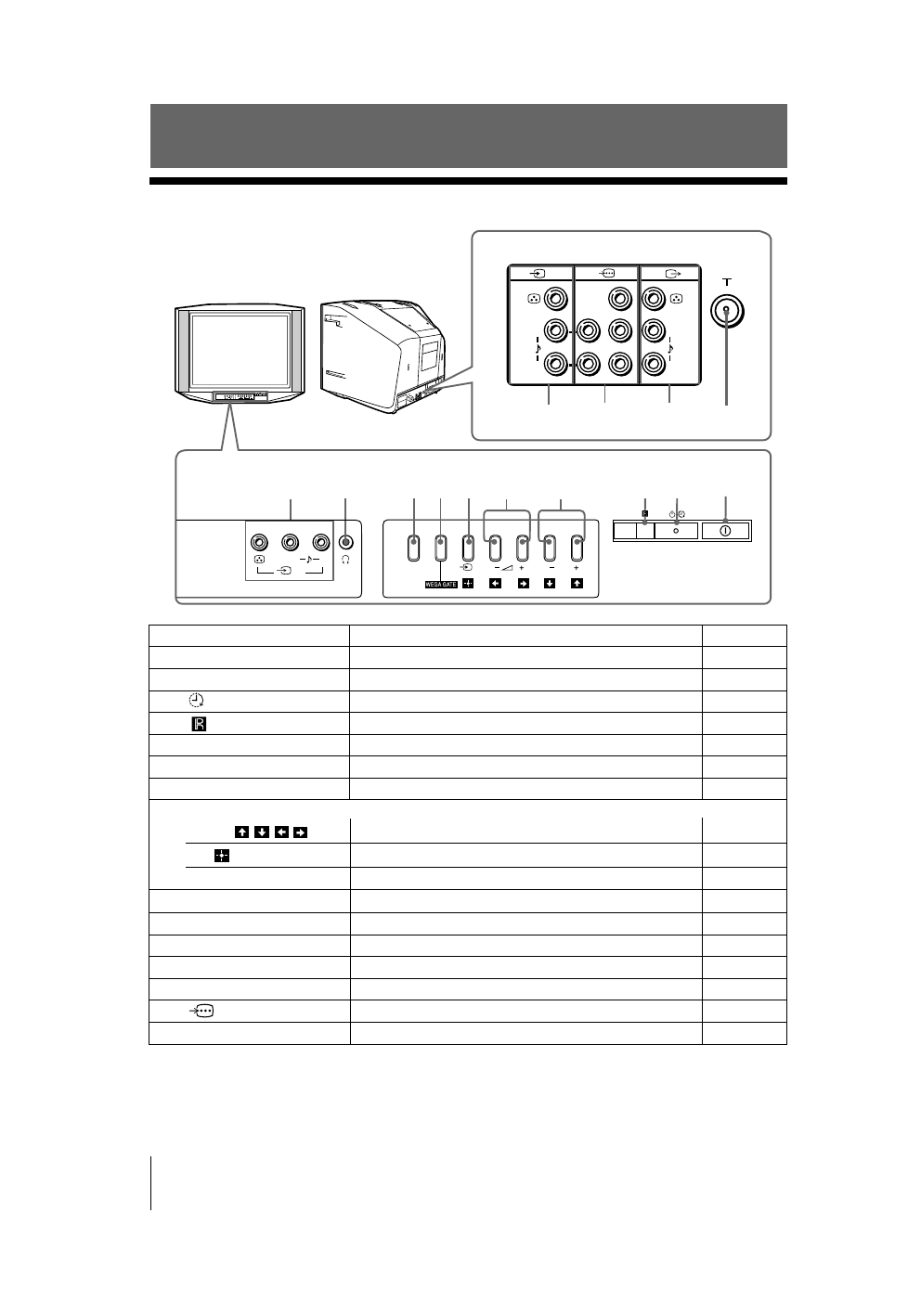

TV front and rear panels

L

R

R

1

L

Y

C

B

C

R

(MONO)

(MONO)

qa

qs

qd

qf

2

0

9

2

L(MONO)

R

4

5

PROG

FM

6

7

8

1

3

2

L(MONO)

R

PROG

FM

WEGA GATE

TV rear panel

TV front panel

Button/Terminal

Function

Page

1

!

Turn off or turn on the TV.

5

2

1

Standby indicator.

5

2

Wake Up indicator.

10

3

Remote control sensor.

 –

4

PROG +/–

Select program number.

 –

5

2

+/–

Adjust volume.

 –

6

t

Select TV or video input.

23

WEGA GATE menu operations

4

,

5

  ,    ,    ,

Select and adjust items.

15

6

Confirm selected items.

15

7

WEGA GATE

Display or cancel WEGA GATE menu.

15

8

FM

Listen to FM Radio.

12

9

i

Headphone jack.

 –

0

t

2

Video input terminal 2.

23

qa

8

Antenna input terminal.

23

qs

T

Monitor output terminal.

24

qd

Component video input terminal.

24

qf

t

1

Video input terminal 1.

23
