DVD player

TV rear panel

Component video

cable

(not supplied)

Audio cable

 (not supplied)

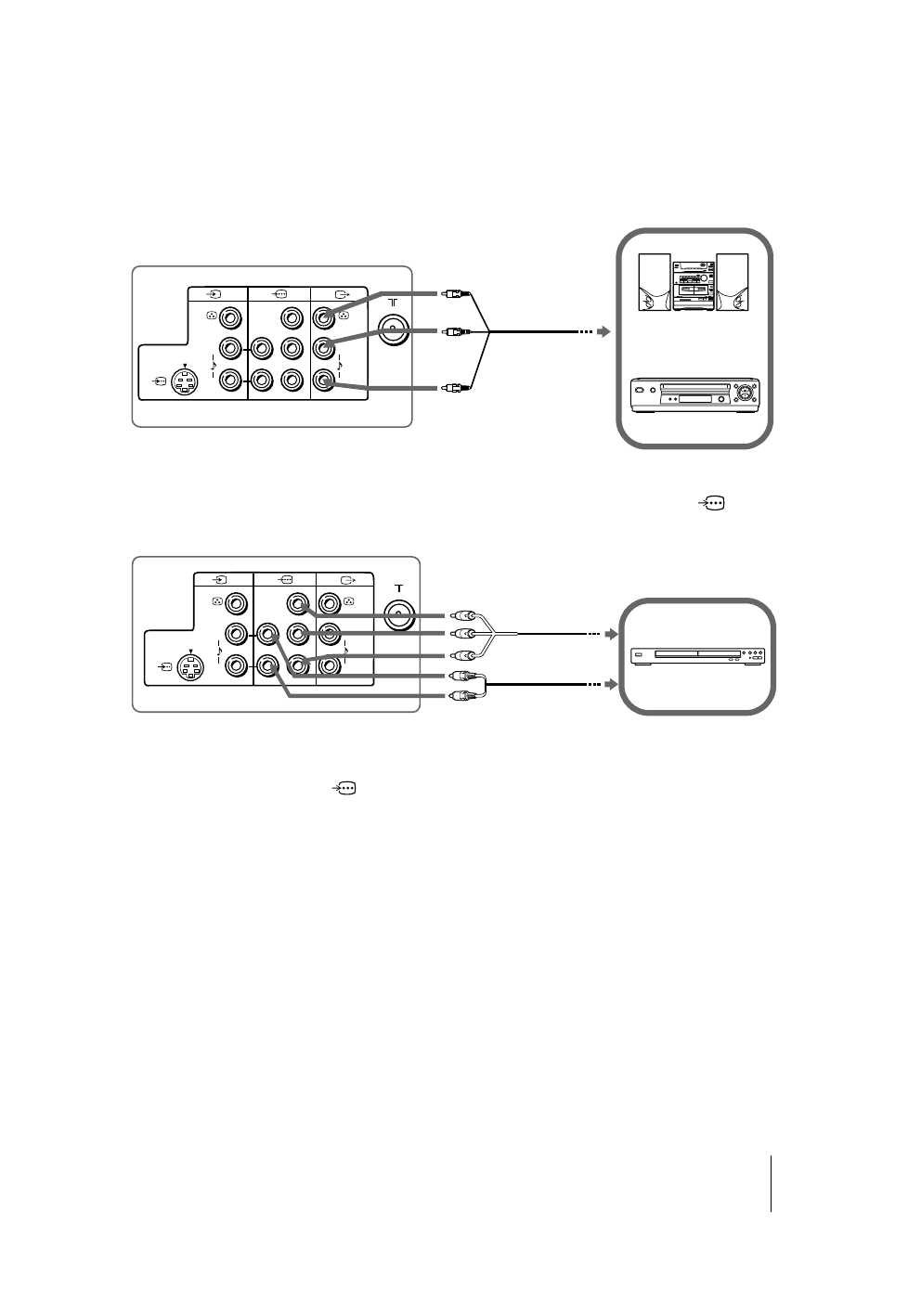

Connecting to the component video input terminal (

)

Notes

• If your DVD player can output interlace and progressive mode signals, select the interlace

output when connecting to

 (component video input) on your TV. Your TV can receive

either 525i/60Hz or 625i/50Hz interlace signals.

• The component video terminals on your DVD player are sometimes labeled Y/C

B

/C

R,

 Y/P

B

/

P

R,

Y/C

b

/C

r

  or Y/B-Y/R-Y.

• If you select “DVD” on your TV screen, the signal from the

T

 (monitor output) jacks will not

be output properly. This does not indicate a malfunction.

TV rear panel

Audio system

VCR

Audio/Video

cable

(not supplied)

Connecting to the monitor output terminal (

 T

)

(

L

MONO)

R

Y

C
