18 Connecting additional equipment

Connecting Additional Equipment

Using optional Equipment

1

Connect your equipment to the designated TV socket, as indicated in the previous page.

2

Switch on the connected equipment.

3

To watch the picture from the connected equipment, press the

 button repeatedly until the correct input symbol

appears on the screen.

Symbol

1

1

2

2

3

3

4

4

Input Signals

• Audio / video input signal through the Scart connector

E

.

• RGB input signal through the Scart connector

E

. This symbol appears only if a RGB source has

been connected.

• Audio / video input signal through the Scart connector

F

.

• RGB input signal through the Scart connector

F

. This symbol appears only if a RGB source has

been connected.

• Audio/video input signal through the Scart connector

G

.

• S Video Input signal through the Scart connector

G

. This symbol appears only if a S Video source

has been connected.

• Video input signal through the phono socket

B

 and Audio input signal through

C

.

• S Video Input signal through the front S Video input jack

A

 and Audio signal through

C

. This symbol

appears only if a S Video source has been connected.

4

Press

 button on the remote control to return to the normal TV picture.

For Mono Equipment

Connect the phono plug to the L/G/S/I socket on the front of the TV and select

4

 or

4

 input signal using the

instructions above. Finally, refer to the “Sound Adjustment” section of this manual and select “Dual Sound” “A” on the
sound menu screen.

S

S

S

~50°

Left Hi-Fi
speaker

Right Hi-Fi
speaker

Your sitting position

Connecting to external Audio Equipment:

Plug in your Hi-Fi equipment to the audio output sockets

D

 if you wish to

amplify the audio output from your TV. Next, using the menu system,
select the “Set Up” menu. Enter the “Detail Set Up” menu and set “TV
Speakers” to “Off”.

The audio level of the external speakers can be modified by
pressing the volume buttons on the remote control. Also, treble and
bass settings can be modified through the “Sound Adjustment”
menu.

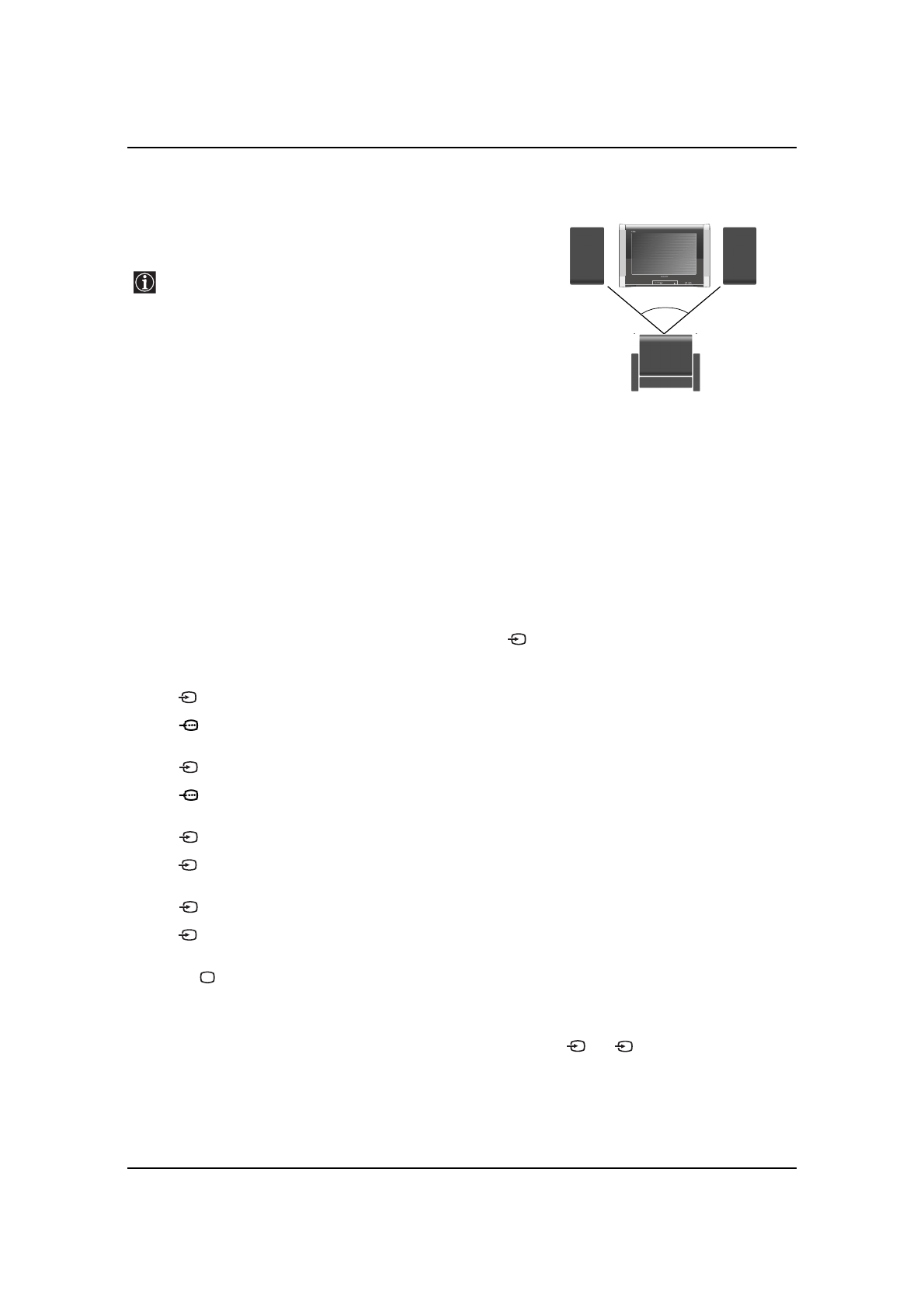

To enjoy “Dolby Virtual” sound effect through your Hi-Fi equipment:

Place the speakers of your equipment in front of your sitting position
and besides the TV set, but keeping a distance of 50 cm from each
speaker to the TV set.
Then, using the menu system, select the menu “Sound Adjustment”,
and select “Dolby Virtual” on the “Effect” option.
