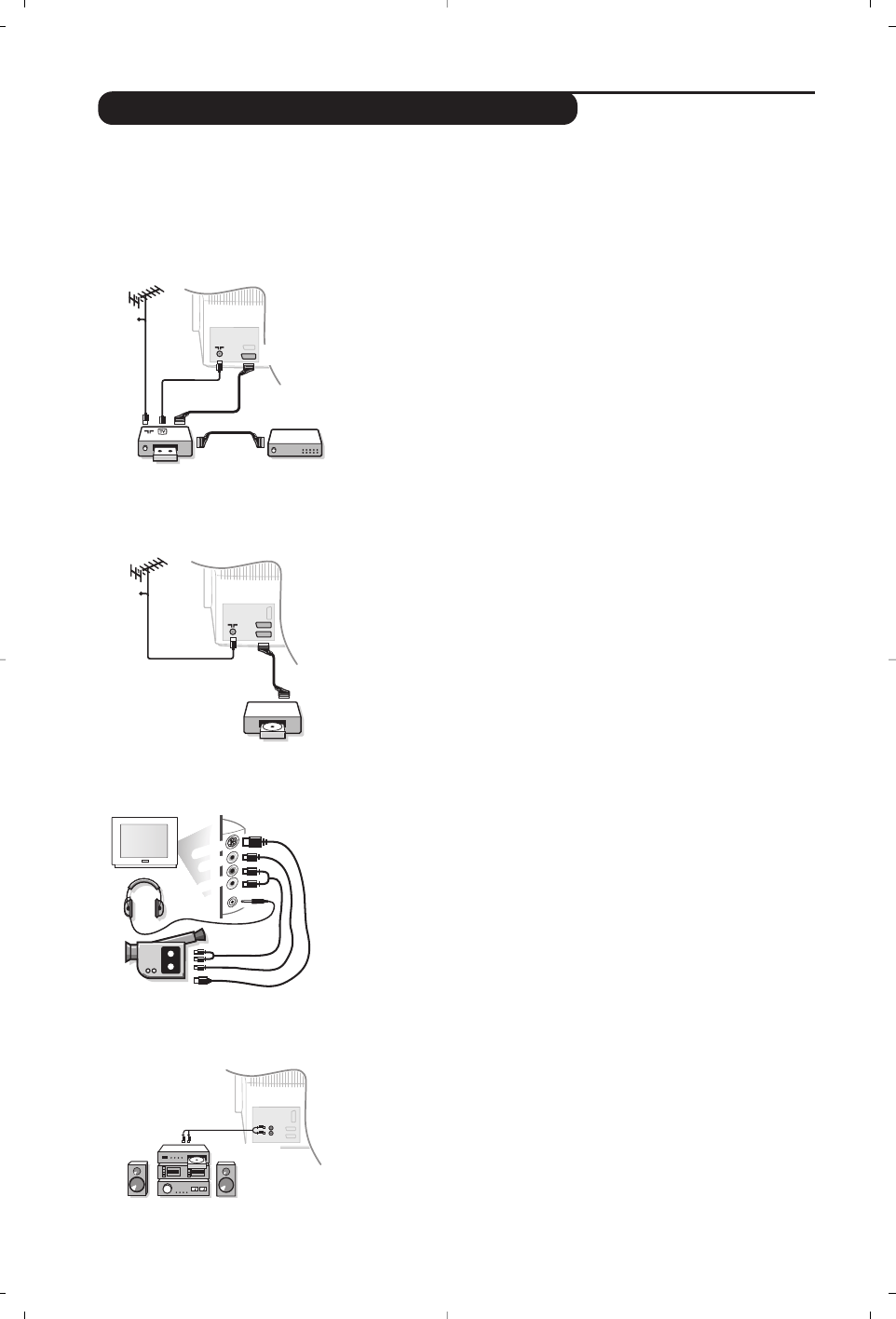

Connecting peripheral equipment
Carry out the connections shown opposite, using a good quality
euroconnector cable.
If your video recorder does not have a euroconnector socket, the only
connection possible is via the aerial cable.You will therefore need to
tune in your video recorder's test signal and assign it programme
number 0 (refer to manual store, p. 5).
To reproduce the video recorder picture, press
0
.
Video recorder with decoder
Connect the decoder to the second euroconnector socket of
the video recorder.You will then be able to record scrambled
transmissions. See also the
Decoder
menu (page 6).
Depending on the versions, the TV set is equipped with 2 or 3 SCART connectors EXT1, EXT2 and
EXT4 located on the rear.
The EXT1 connector has audio video inputs/outputs and RGB inputs.
The EXT2 connector has audio video inputs/outputs and S-VHS inputs.
The EXT4 connector (if available) has audio video inputs/outputs and RGB inputs.
Video recorder
Satellite receiver, decoder, DVD, games, etc.
Carry out the connections shown opposite.
To optimise picture quality, connect the equipment which
produces the RGB signals (digital decoder, games, etc.) to EXT1
or EXT4, and the equipment which produces the S-VHS signals
(S-VHS and Hi-8 video recorders, certain DVD drives) to EXT2.
To select connected equipment
Press the
µ
key to select
EXT1
,
EXT2
,
S-VHS2
(S-VHS signals
from the EXT2 socket),
EXT3
for connections on the front panel
and
EXT4
(if available)
.
Most equipment (decoder, video recorder) carries out the switching itself.
Make the connections as shown opposite.
With the
µ
key, select
EXT3
.
For a mono set, connect the sound signal to the AUDIO L (or AUDIO R)
input. The sound automatically comes out of the left and right speakers
of the set.
Headphones
Press the
m
key to mute the sound on the TV set (see also
sound settings, page 6).
The headphone impedance must be between 32 and 600 Ohms.
Other equipment
Side connections
Amplifier
(only available on certain versions)
VCR
CABLE
EXT 2
CABLE
AUDIO
To connect to a hi-fi system, use an audio connection cable and
connect the “L” and “R” outputs on the TV set to the “AUDIO
IN” “L” and “R” input on your hi-fi amplifier.
